1989 Yamaha Wave Runner (WR500F) Ventilation Diagram

← All diagrams

Find the part on the Ventilation diagram for your 1989 Yamaha Wave Runner (WR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

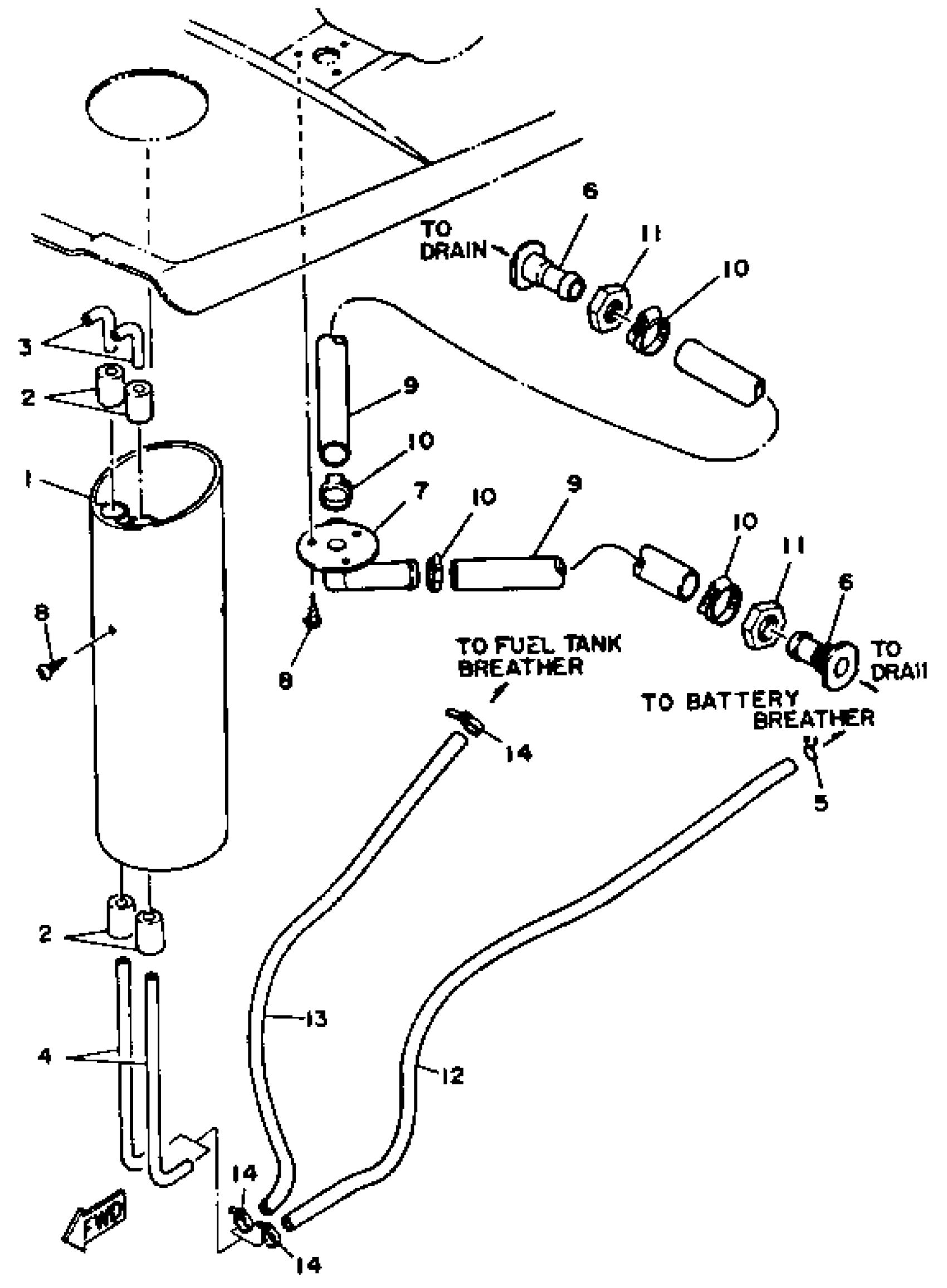

1989 Yamaha Wave Runner (WR500F) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, VENTILATION

EU0-U2149-40-00

1
Out of stock

2

CAP

EU0-62155-00-00

1
Out of stock

3

ELBOW VENT 11

EU0-62156-01-00

1
Out of stock

4

ELBOW, VENTILATOR 12 (EU0-62156-30-00)

EU0-62156-31-00

1
Out of stock

5

CLIP

90467-08M10-00

1
Out of stock

6

BODY, DRAIN 1

EU0-62241-00-00

1
Out of stock

7

DRAIN 2

EU0-62242-00-00

1

$58.99

In stock

8

SCREW, OVAL HEAD TAPPING

97780-40112-00

1
Out of stock

9

HOSE 1

90669-03030-00

1

$99.98

In stock

10

BAND HOSE

90601-12538-00

1

$17.99

In stock

11

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock

12

HOSE

90699-50085-00

1

$24.99

In stock

13

HOSE, AIRVENT 1

EU0-67856-30-00

1
Out of stock

14

CLAMP

90465-10098-00

1

$2.24

In stock
