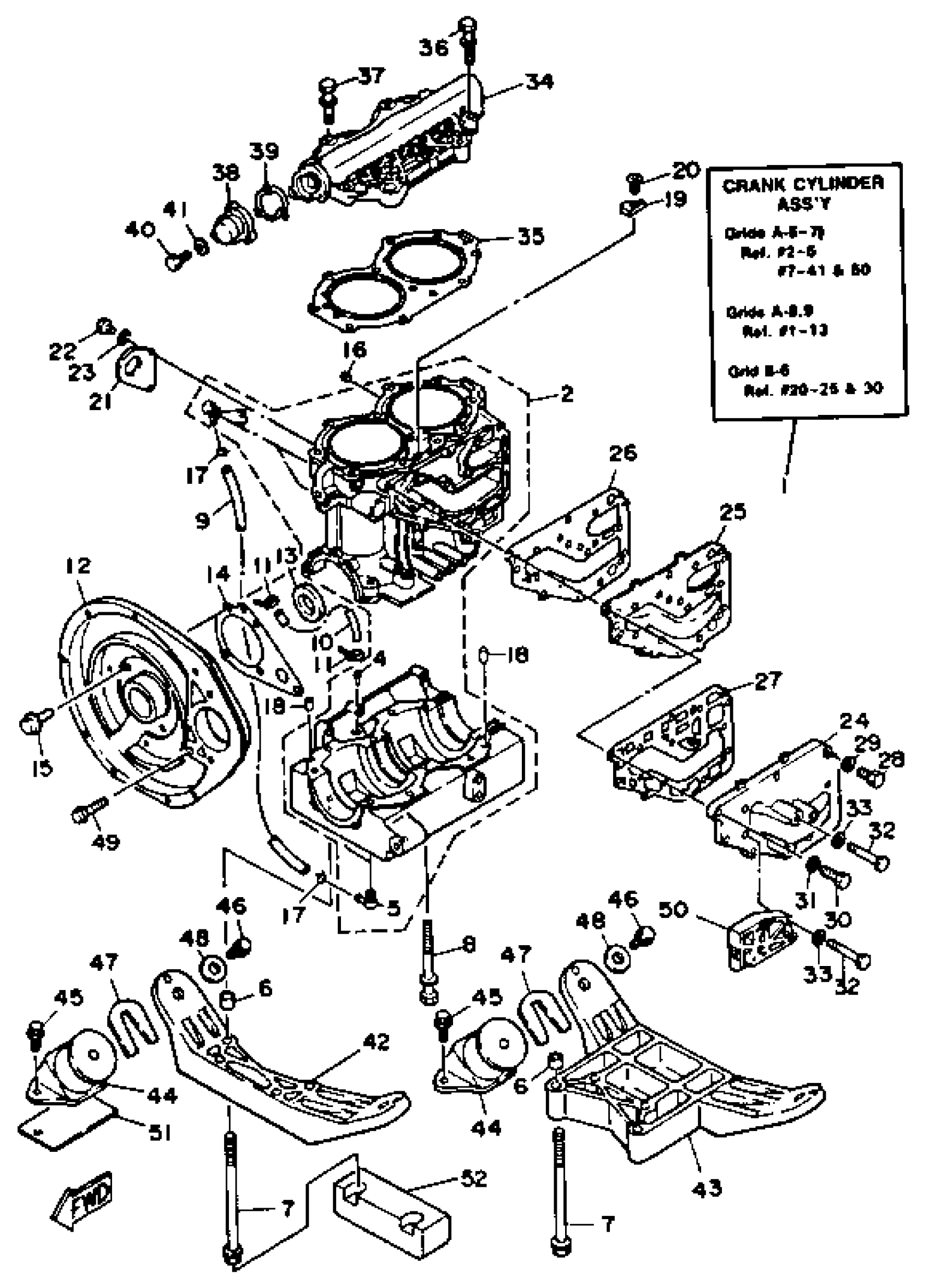

Yamaha WR500F (WAVE RUNNER) 1989 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK-CYL ASY

6K8-W0090-04-4D

Unavailable

2

CRANKCASE ASY

6K8-15100-01-8P

Unavailable

3

NIPPLE, HOSE

650-11372-01-00

$7.84

4

. PIPE, JOINT 4

652-24461-00-00

$5.31

5

CHECK VALVE ASSY

646-11370-01-00

$13.56

6

COLLAR(3HM)

90387-085N0-00

$5.92

7

BOLT, WITH WASHER

90119-08M98-00

Unavailable

8

BOLT, WITH WASHER

90119-08M99-00

$3.62

9

HOSE (L390)

90445-07M90-00

$6.59

10

HOSE (363-21766-00)

90445-09080-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

HOUSING, OIL SEAL

6K8-15359-01-94

Unavailable

13

OIL SEAL(6R7)

93101-25M50-00

$20.80

14

. GASKET, O/SL HSNG

6K8-15369-A1-00

$11.99

15

BOLT, FLANGE

90105-06M09-00

Unavailable

16

PLUG, TAPER

90336-10003-00

Unavailable

17

CLIP

90467-06016-00

$2.93

18

PIN, DOWEL (614)

93606-12019-00

Unavailable

19

ANODE

689-11325-00-00

$5.57

20

SCREW, FLAT

98707-06020-00

Unavailable

21

HANGER, ENGINE

6K8-11119-00-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

OUTER COVER, EXHST

6K8-41123-00-9M

Unavailable

25

INNER COVER,EXHAUST

6K8-41121-00-1S

$40.89

26

. GASKET, EXHAUST INNER COVER

6K8-41122-A1-00

$18.49

27

. GASKET, EXHAUST OUTER COVER

6K8-41124-A1-00

$18.49

28

BOLT

90101-06M27-00

$3.14

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

BOLT(JF7)

97080-06030-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable

32

BOLT, HEXAGON

97013-06050-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

HEAD, CYLINDER

689-11111-01-1S

Unavailable

35

. GASKET, CYLINDER HEAD 1

6K8-11181-A1-00

Unavailable

36

BOLT, WITH WASHER

90119-08009-00

$2.43

37

BOLT, WITH WASHER(63V)

90119-08M07-00

Unavailable

38

COVER, THERMOSTAT

655-12413-01-1S

$19.99

39

. GASKET, COVER

655-12414-A1-00

$5.31

40

BOLT(7U8)

97080-06020-00

$3.63

41

WASHER, PLAIN (646)

92990-06600-00

Unavailable

42

BRACKET COMP.1

6K8-44518-00-94

Unavailable

43

BRACKET 2

6K8-44519-00-94

Unavailable

44

MOUNT RUBBER

6K8-44517-01-94

$101.50

45

BOLT, WITH WASHER

90119-08038-00

$4.99

46

BOLT, WITH WASHER

90119-08904-00

$3.18

47

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

47

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

47

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

47

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

47

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

48

PLATE

EU0-67324-00-00

$8.14

49

BOLT, WASHER BASED

90105-08M38-00

Unavailable

50

BRACKET, STRTG MTR

6K8-81822-00-94

$64.99

51

LINER

EU0-67323-00-00

Unavailable

52

DAMPER

EU0-67361-01-00

Unavailable
