1989 Yamaha Wave Runner (WR500F) AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1989 Yamaha Wave Runner (WR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

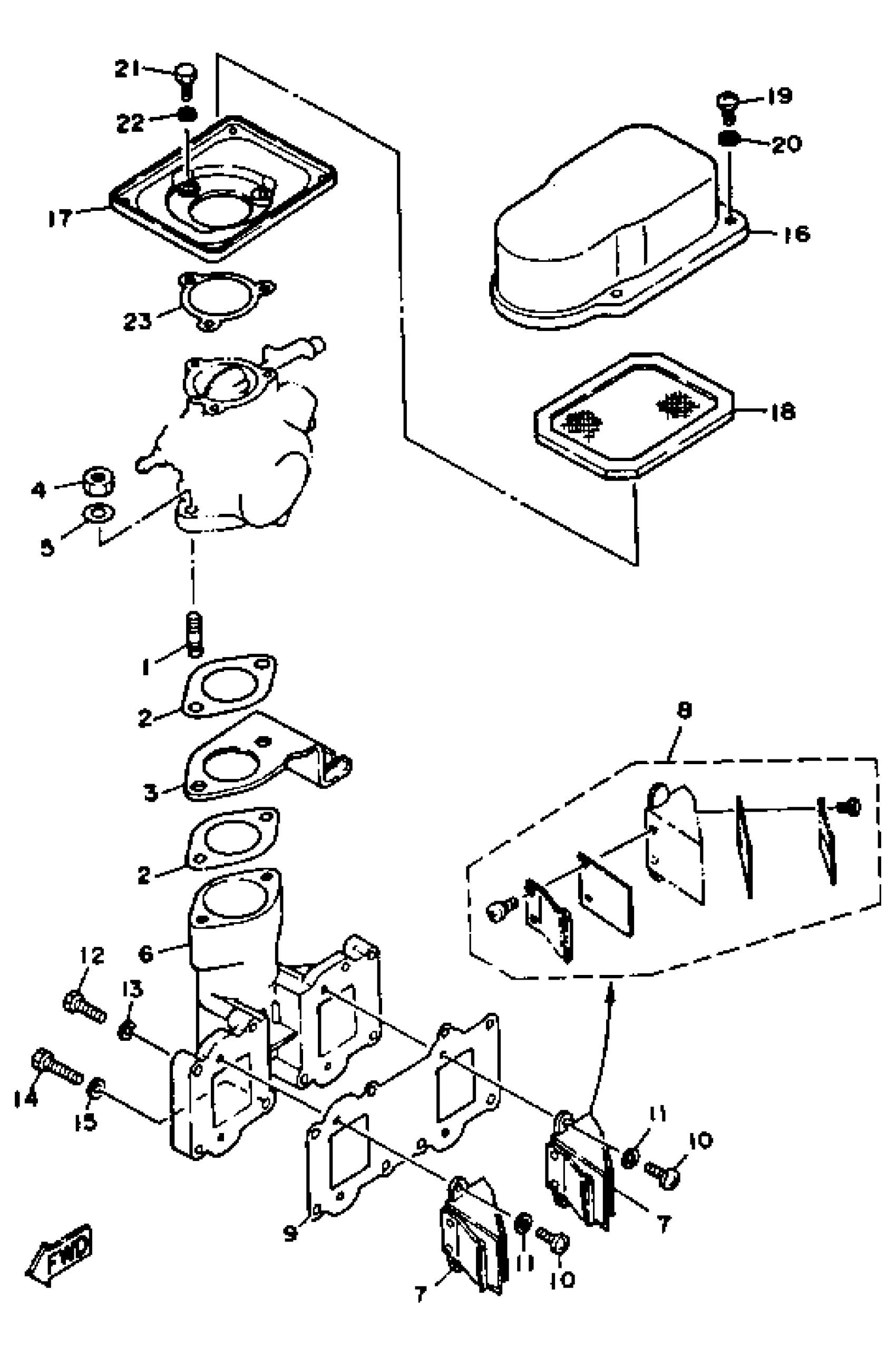

1989 Yamaha Wave Runner (WR500F) AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

2

GASKET, MANIFOLD

6K8-13556-A1-00

1
Out of stock

3

PLATE

6K8-14527-00-00

1
Out of stock

4

NUT(6L2)

95333-08600-00

1

$3.20

In stock

5

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

6

MANIFOLD 1

6K8-13641-00-94

1
Out of stock

7

REED VALVE ASSY

6H5-13610-00-00

1

$75.37

In stock

8

. REED SET

6H4-W0004-00-00

1

$36.42

In stock

9

GASKET,VALVE SEAT

6K8-13621-A1-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

12

BOLT(JF7)

97080-06030-00

1

$3.45

In stock

13

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

COVER, CARBURETOR

6K8-14283-00-98

1
Out of stock

17

COVER, CARBURETOR 2 (6K8-14284-00-98)

6K8-14284-01-98

1
Out of stock

18

ELEMENT, AIR CLNR

6K8-14451-00-00

1
Out of stock

19

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

20

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

21

BOLT (FJ0)

97080-06018-00

—
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

23

GASKET,AIR COOLER COVER 1

6K8-13674-A1-00

1
Out of stock
