1990 Yamaha Wave Runner (WR500D) Steering Diagram

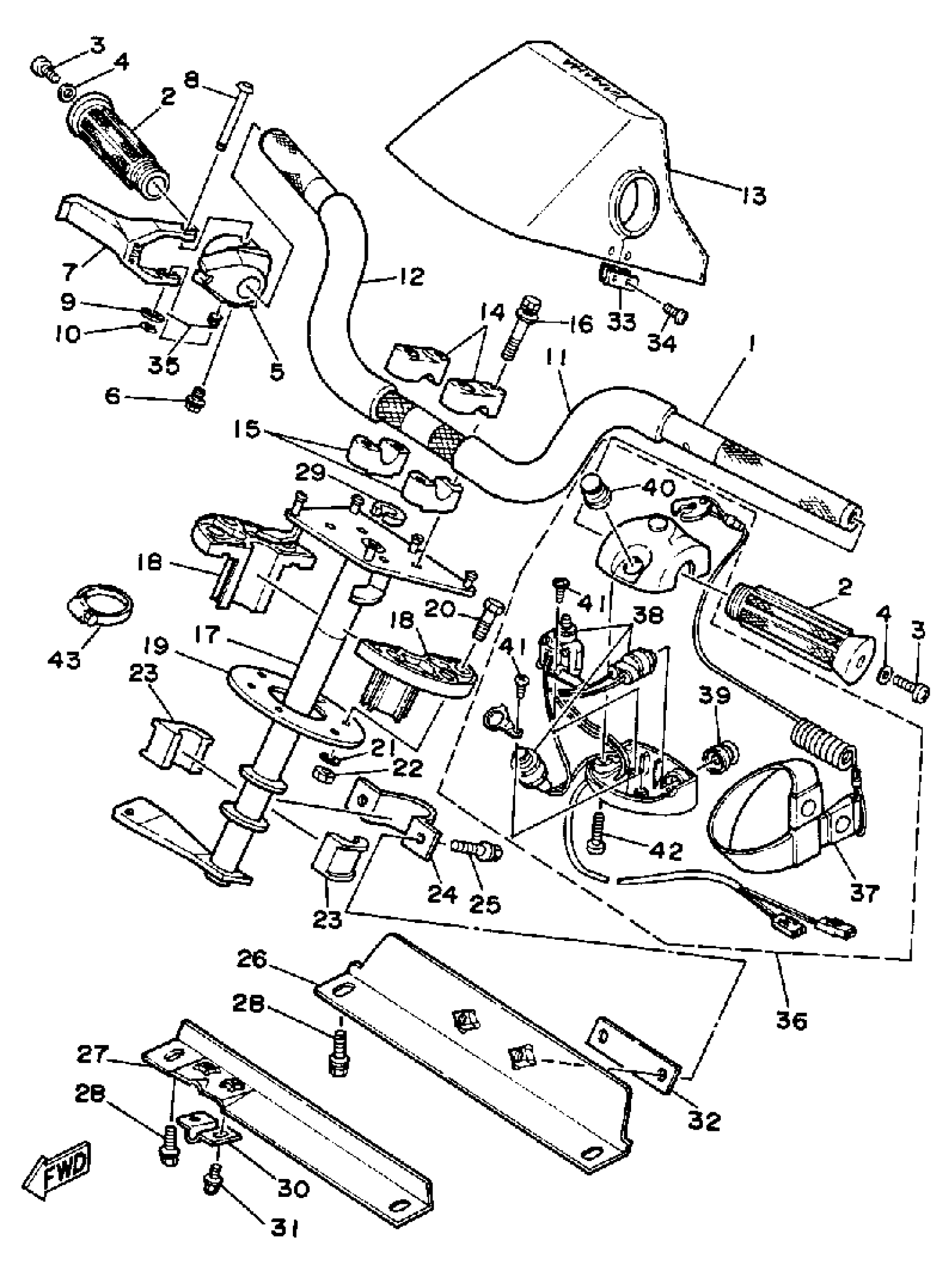

Find the part on the Steering diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLE
EU0-U1552-00-00
5
BRACKET
EU0-67254-01-00
7
LEVER, THROTTLE
81E-42138-00-00
8
PIN
EU0-61522-01-00
11
PROTECTOR TUBE LH
EU0-61489-11-00
12
PROTECTOR TUBE RH
EU0-61489-21-00
13
PAD, STEERING
EU0-61421-42-00
16
BOLT, WITH WASHER
90119-08925-00
17
COLUMN, STEERING
EU0-61541-01-00
18
BEARING, COLUMN
EU0-61417-00-00
19
SEAL, RUBBER
EU0-61439-30-00
24
JOINT, BEARING
EU0-61588-00-00
25
BOLT, WITH WASHER
90119-08903-00
26
BRACKET, BEARING
EU0-61433-01-00
27
BRACKET, STOPPER CABLE
EU0-61467-01-00
28
BOLT, WITH WASHER
90119-08903-00
29
PACKING, STEERING COLUMN
EU0-61469-00-00
30
STOPPER CABLE
EU0-U1468-00-00
31
BOLT, WITH WASHER
90119-06926-00
34
SCREW
90149-04940-00
35
SPRING
EU0-67256-00-00
43
BAND, HOSE 42
90601-14271-00
