1990 Yamaha Wave Runner (WR500D) Gunwale - MAT Diagram

← All diagrams

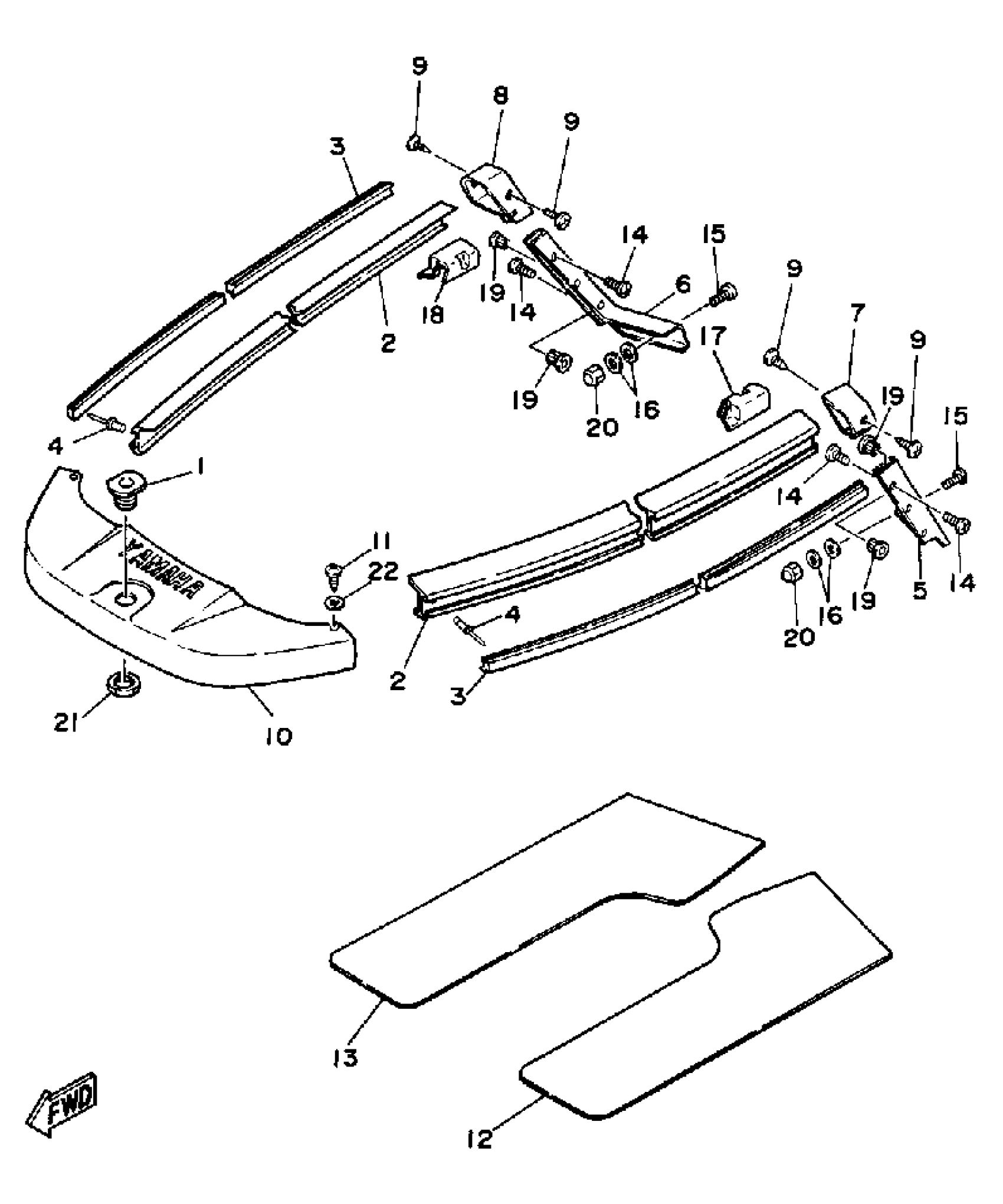

Find the part on the Gunwale - MAT diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Wave Runner (WR500D) Gunwale - MAT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROPE HOLE

EU0-61651-30-00

1
Out of stock

2

GUNWALE, SIDE

EU0-U2512-41-00

1
Out of stock

3

GUNWALE 36 (90697-37024)

EU0-U2519-40-00

1
Out of stock

4

RIVET, BLIND

90267-48932-00

1

$1.85

In stock

5

GUNWALE, STERN (LH)

EU0-U2513-V0-00

1
Out of stock

6

GUNWALE, STERN (RH)

EU0-U2513-W0-00

1
Out of stock

7

CAP, GUNWALE STERN (LH)

EU0-62574-V0-00

1
Out of stock

8

CAP, GUNWALE STERN (RH)

EU0-62574-W0-00

1
Out of stock

9

SCREW

90149-05935-00

1
Out of stock

10

GUNWALE, BOW

EU0-62511-30-00

1
Out of stock

11

SCREW

90149-05937-00

1

$1.09

In stock

12

MAT, UPPER (LH)

EU0-63581-V1-00

1
Out of stock

13

MAT, UPPER (RH)

EU0-63581-W1-00

1
Out of stock

14

SCREW

90149-05933-00

1
Out of stock

15

SCREW

90149-05934-00

1
Out of stock

16

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

17

GUNWALE, INNER (LH)

EU0-62519-V0-00

1
Out of stock

18

INNER GUNWALE (RH)

EU0-62519-W0-00

1

$28.99

In stock

19

NUT

90179-05924-00

1
Out of stock

20

.. NUT

95380-05800-00

1

$2.77

In stock

21

NUT

EU0-61652-00-00

1

$12.27

In stock

22

WASHER, PLATE

90201-05800-00

1

$0.69

In stock
