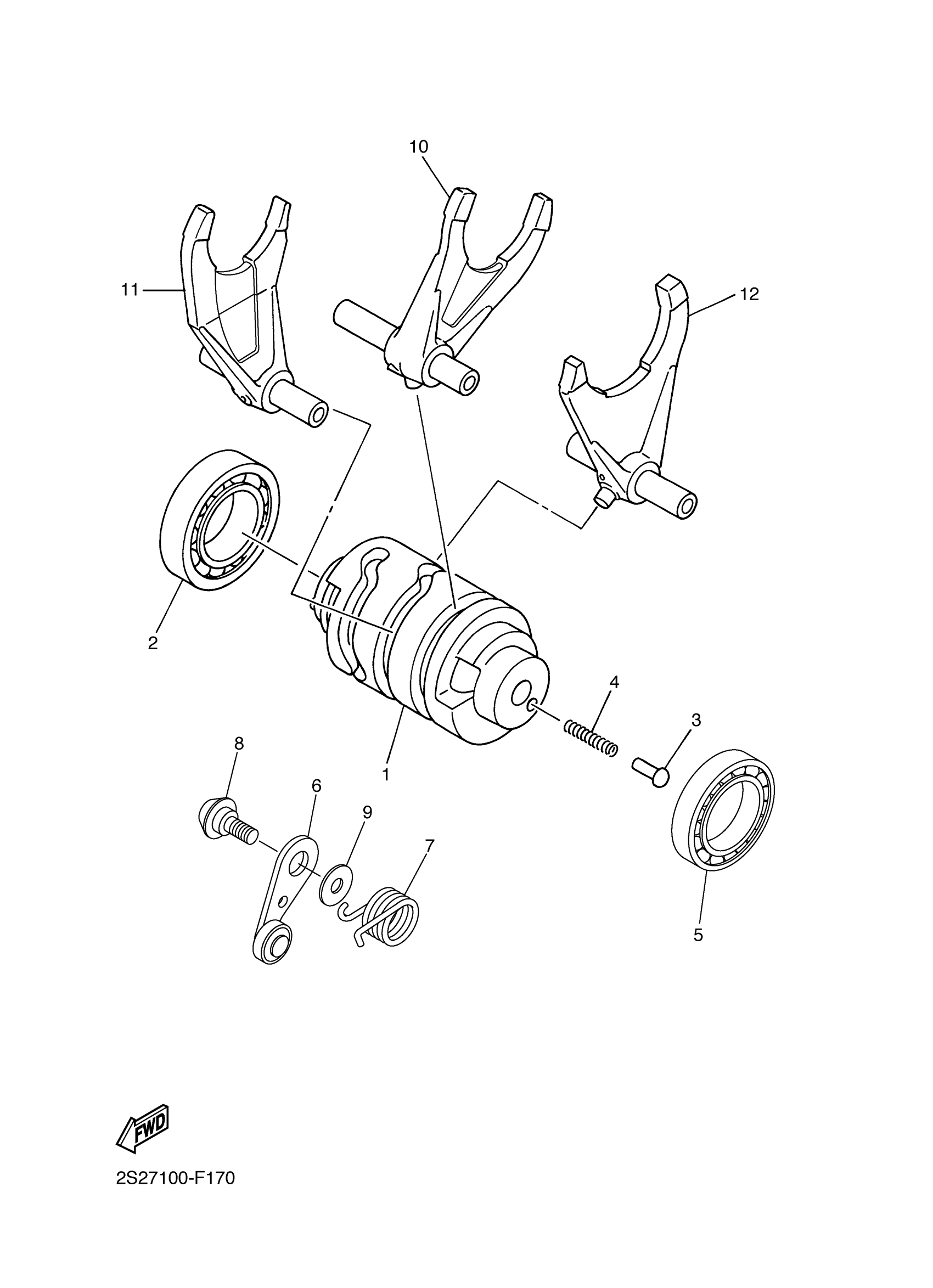

Yamaha WR450FX (WR450F) 5TJJ 2008 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5NL-18541-00-00

Unavailable

2

BEARING

93306-90509-00

$32.23

3

POINT, NEUTRAL

4UN-18542-00-00

$7.89

4

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

5

BEARING

93306-80501-00

$32.88

6

STOPPER LEVER ASSY

2S2-18140-10-00

$18.46

7

SPRING, TORSION

90508-26021-00

$4.27

8

BOLT

90109-06201-00

$5.23

9

WASHER, PLATE

90201-06013-00

$3.65

10

FORK, SHIFT 1

2S2-18501-00-00

$125.65

11

FORK, SHIFT 2

2S2-18502-00-00

$122.24

12

FORK, SHIFT 3

5BE-18503-20-00

$115.76
