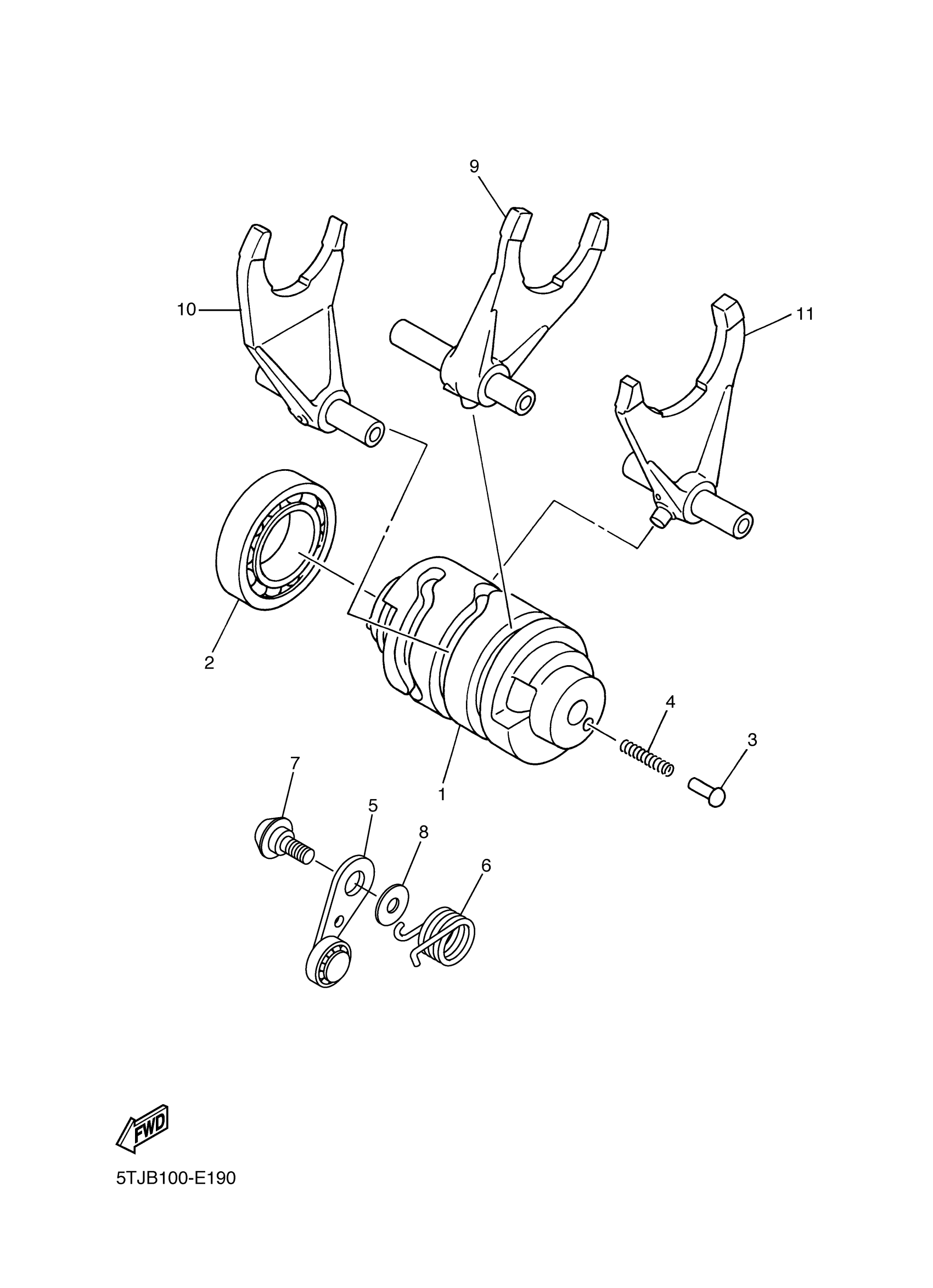

Yamaha WR450FV (WR450F) 5TJB 2006 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5NL-18541-00-00

Unavailable

2

BEARING (5K5)

93306-90501-00

$32.82

3

POINT, NEUTRAL

4UN-18542-00-00

$7.89

4

SPRING COMPRESSION278185450000

90501-06022-00

$5.75

5

STOPPER LEVER ASSY

2S2-18140-00-00

Unavailable

6

SPRING, TORSION

90508-26021-00

$4.27

7

BOLT

90109-06285-00

$3.17

8

WASHER, PLATE

90201-06013-00

$3.65

9

FORK, SHIFT 1

5BE-18501-20-00

$103.10

10

FORK, SHIFT 2

5BE-18502-20-00

$114.75

11

FORK, SHIFT 3

5BE-18503-20-00

$115.76
