Partiron

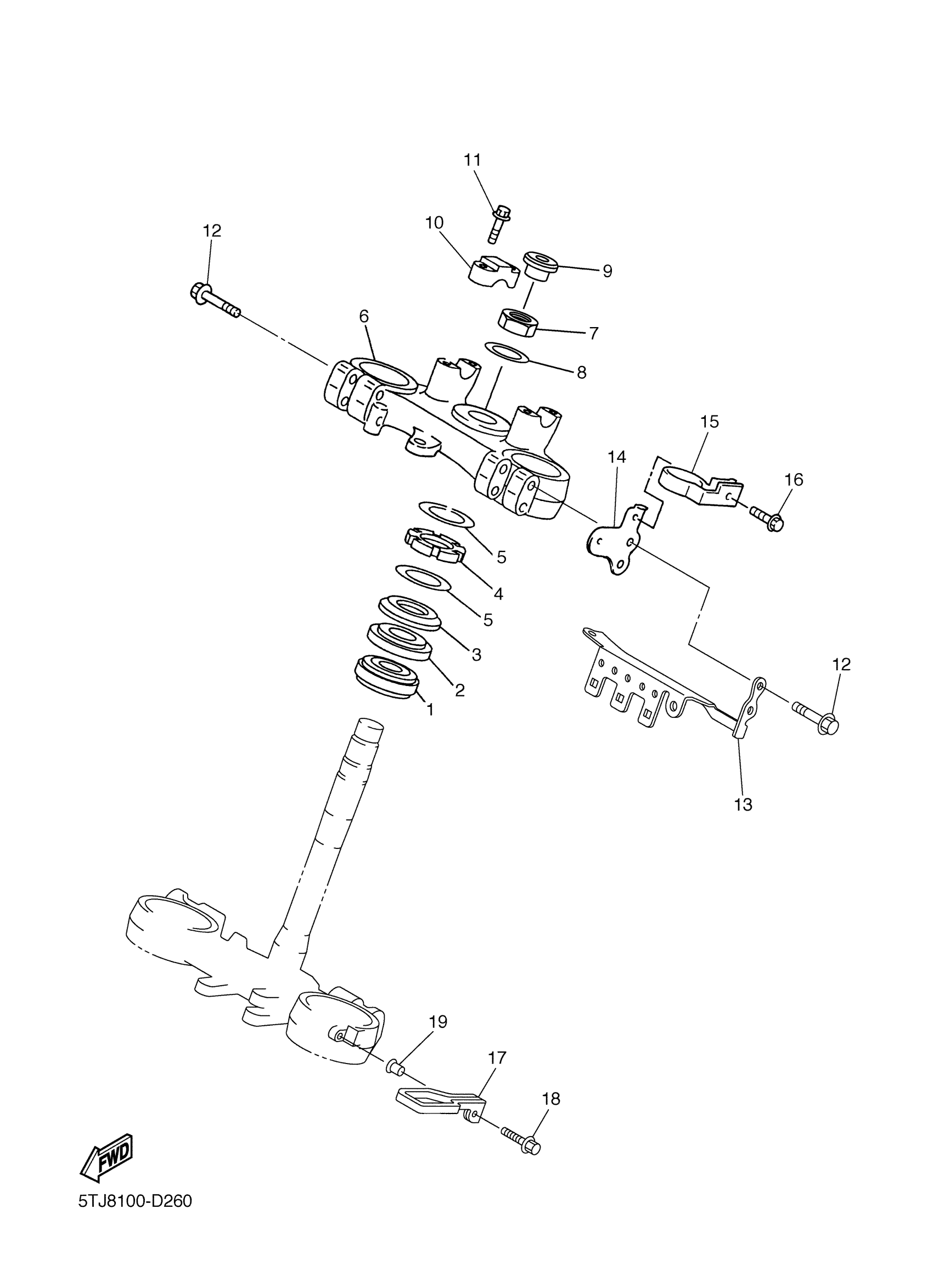

Yamaha WR450FT (WR450F) 5TJ8 2005 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$47.41

2

BEARING(4EW)

93332-00078-00

$58.70

3

COVER, BALL RACE 2

4EW-23416-00-00

$27.46

4

NUT(4JX)

90179-28650-00

Unavailable

5

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

6

CROWN, HANDLE

5TJ-23435-80-00

Unavailable

7

NUT

90170-24373-00

Unavailable

8

WASHER, PLATE(2VM)

90201-247L2-00

$7.55

9

CAP

5TJ-2319U-00-00

Unavailable

10

HOLDER, HANDLE UPPER

5XE-23441-00-00

Unavailable

11

BOLT, FLANGE(4MY)

95027-08035-00

$5.75

12

BOLT, FLANGE(4MY)

95027-08040-00

$5.75

13

BRACKET

5TJ-8350E-80-00

Unavailable

14

STAY, HEAD LIGHT 1

5TJ-2831V-80-00

$10.02

15

GUIDE, CABLE

5TJ-2331E-80-00

$10.21

16

BOLT, WASHER BASED(58X)

90105-05361-00

Unavailable

17

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

18

. BOLT, FLANGE

95027-06020-00

$0.93

19

COLLAR

5XE-23113-00-00

Unavailable
