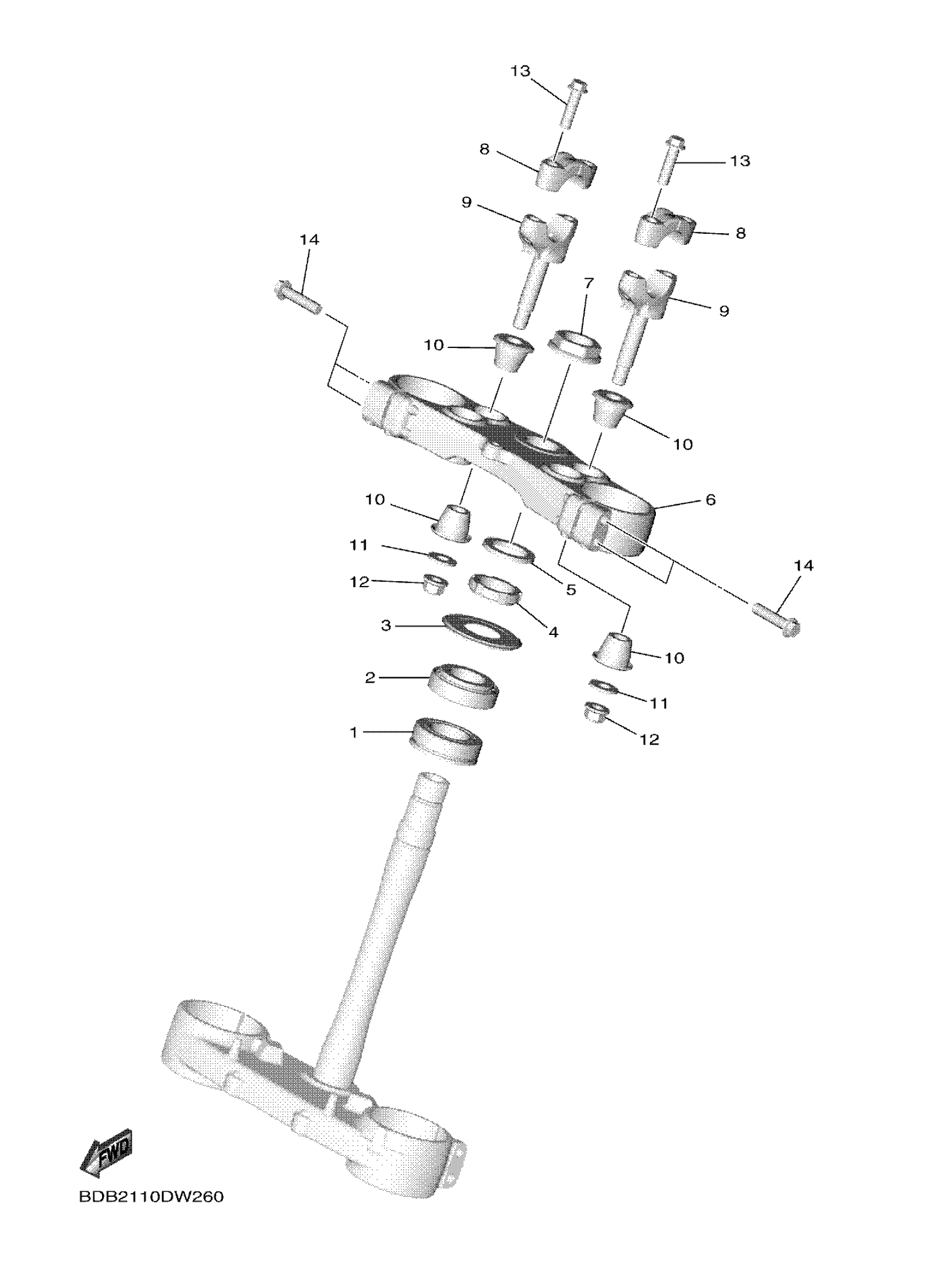

Yamaha WR450FN (WR450F) BDB6 2022 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$47.41

2

BEARING(4EW)

93332-00078-00

$58.70

3

COVER, BALL RACE 2

17D-23416-50-00

$29.30

4

NUT

90179-28015-00

$30.67

5

WASHER, PLATE

90201-28020-00

$3.92

6

CROWN, HANDLE

B2W-23435-00-00

Unavailable

7

NUT

90179-24004-00

$21.57

8

HOLDER, HANDLE UPPER

B2W-23441-00-00

$25.02

9

HOLDER, HANDLE LOWER

B2W-23442-10-00

$31.83

10

HOLDER, DAMPER

1SL-23434-00-00

$8.14

11

WASHER, PLATE

90201-10035-00

$3.33

12

NUT, S/L FLANGE

95602-10200-00

$2.14

13

BOLT, FLANGE DEEP RECESS

95E34-08030-00

$1.43

14

BOLT, FLANGE DEEP RECESS

95E34-08035-00

$2.30
