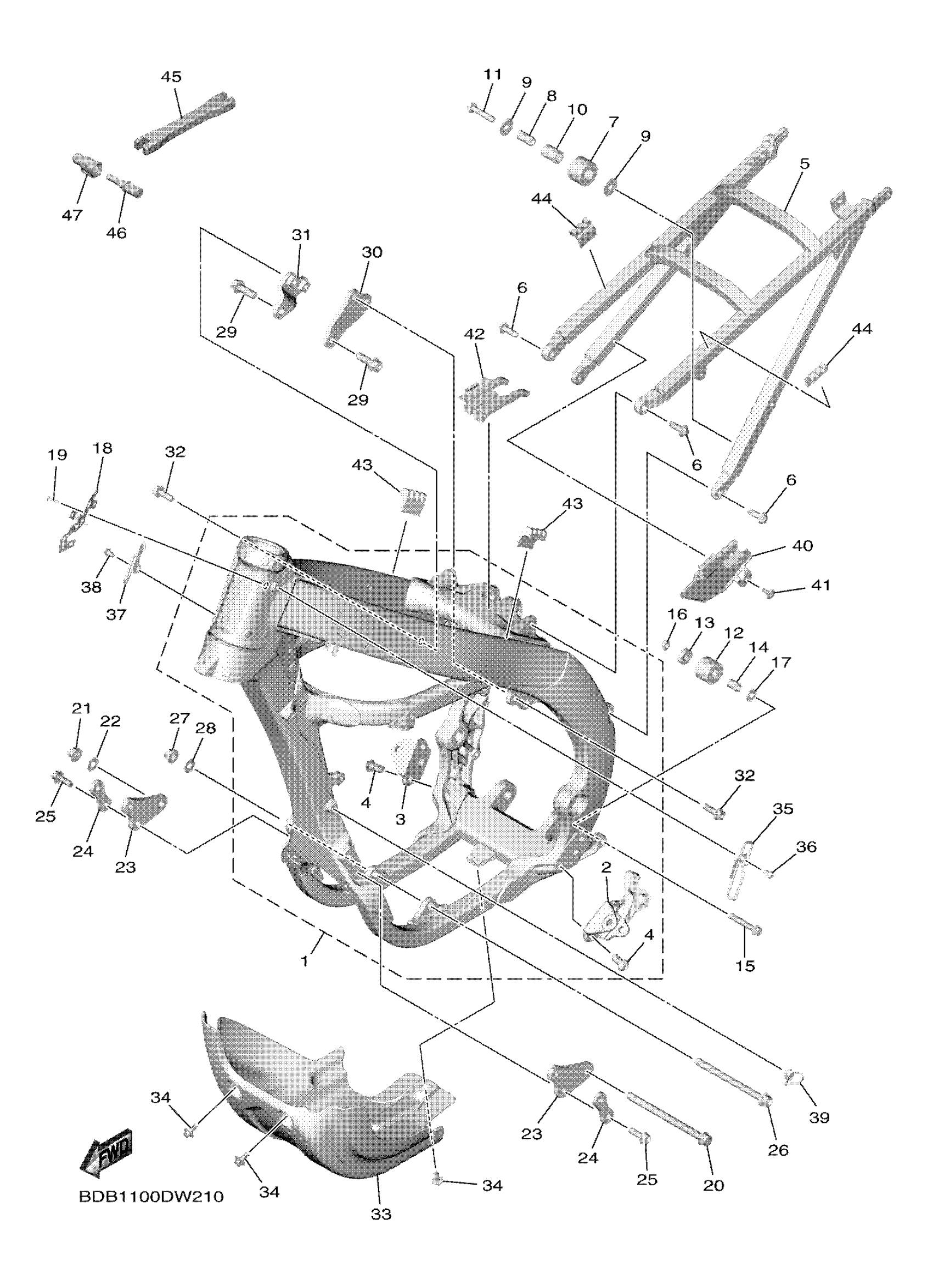

Find the part on the Frame diagram for your 2022 Yamaha WR450F (WR450FN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha WR450F (WR450FN) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

BEX-21101-01-00

1
Out of stock

2

. BRACKET, FOOTREST

B3J-21447-00-00

1
Out of stock

3

BRACKET, FOOTREST

17D-21448-00-00

1
Out of stock

4

SCREW

90149-10033-00

1
Out of stock

5

REAR FRAME COMP.

BR9-21190-10-00

1
Out of stock

6

BOLT, FLANGE

90105-08230-00

1
Out of stock

7

TENSIONER

30X-22178-00-00

1
Out of stock

8

BUSH

4V4-22184-00-00

1
Out of stock

9

WASHER, PLATE

90201-08045-00

1
Out of stock

10

COLLAR

90387-08041-00

1
Out of stock

11

BOLT, FLANGE DEEP RECESS

95E32-08040-00

1
Out of stock

12

TENSIONER

BR9-22178-00-00

1
Out of stock

13

BEARING (3X3)

93300-60804-00

1
Out of stock

14

COLLAR(1NL)

90387-086N4-00

1
Out of stock

15

BOLT, FLANGE

90105-08232-00

1
Out of stock

16

NUT, U

95617-08100-00

—
Out of stock

17

WASHER, PLATE

90201-08043-00

—
Out of stock

18

BRACKET, BATTERY BOX

B3J-21149-00-00

—
Out of stock

19

RIVET, BLIND (2YK)

90267-32146-00

—
Out of stock

20

BOLT, FLANGE

90105-10230-00

—
Out of stock

21

NUT(4KG)

90179-10658-00

—
Out of stock

22

WASHER, PLATE

90201-10045-00

—
Out of stock

23

BRACKET, FRONT LOWER 1

BAK-21417-00-00

—
Out of stock

24

BRACKET, FRONT LOWER 2

2GB-21418-10-00

—
Out of stock

25

BOLT, FLANGE

90105-08143-00

—
Out of stock

26

BOLT, FLANGE

90105-10176-00

—
Out of stock

27

NUT(4KG)

90179-10658-00

—
Out of stock

28

WASHER, PLATE

90201-10045-00

—
Out of stock

29

BOLT, FLANGE

90105-10189-00

—
Out of stock

30

BRACKET, REAR UPPER 1

B2W-21425-00-00

—
Out of stock

31

BRACKET, REAR UPPER 2

B2W-21426-00-00

—
Out of stock

32

BOLT, FLANGE

90105-08143-00

—
Out of stock

33

GUARD, ENGINE 1

B3J-2147A-00-00

—
Out of stock

34

BOLT, WITH WASHER

90119-06166-00

—
Out of stock

35

HOLDER, CLUTCH CAB

1SL-21163-01-00

—
Out of stock

36

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

37

HOLDER, WIRE

BDB-21163-00-00

—
Out of stock

38

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

39

CLAMP

90464-31002-00

—
Out of stock

40

COVER, SIDE 6

BR9-2171X-02-00

—
Out of stock

41

RIVET

90269-06081-00

—
Out of stock

42

DAMPER, LOCATING 1

BR9-24181-00-00

—
Out of stock

43

DAMPER, LOCATING 2

BR9-24182-00-00

—
Out of stock

44

DAMPER, LOCATING 3

BR9-24183-10-00

—
Out of stock

45

WRENCH, HEXAGON

5ET-28166-10-00

—
Out of stock

46

CAP

18P-2467E-00-00

—
Out of stock

47

CASE, CAP

18P-2464V-01-00

—
Out of stock
