2021 Yamaha WR450F (WR450FM) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2021 Yamaha WR450F (WR450FM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

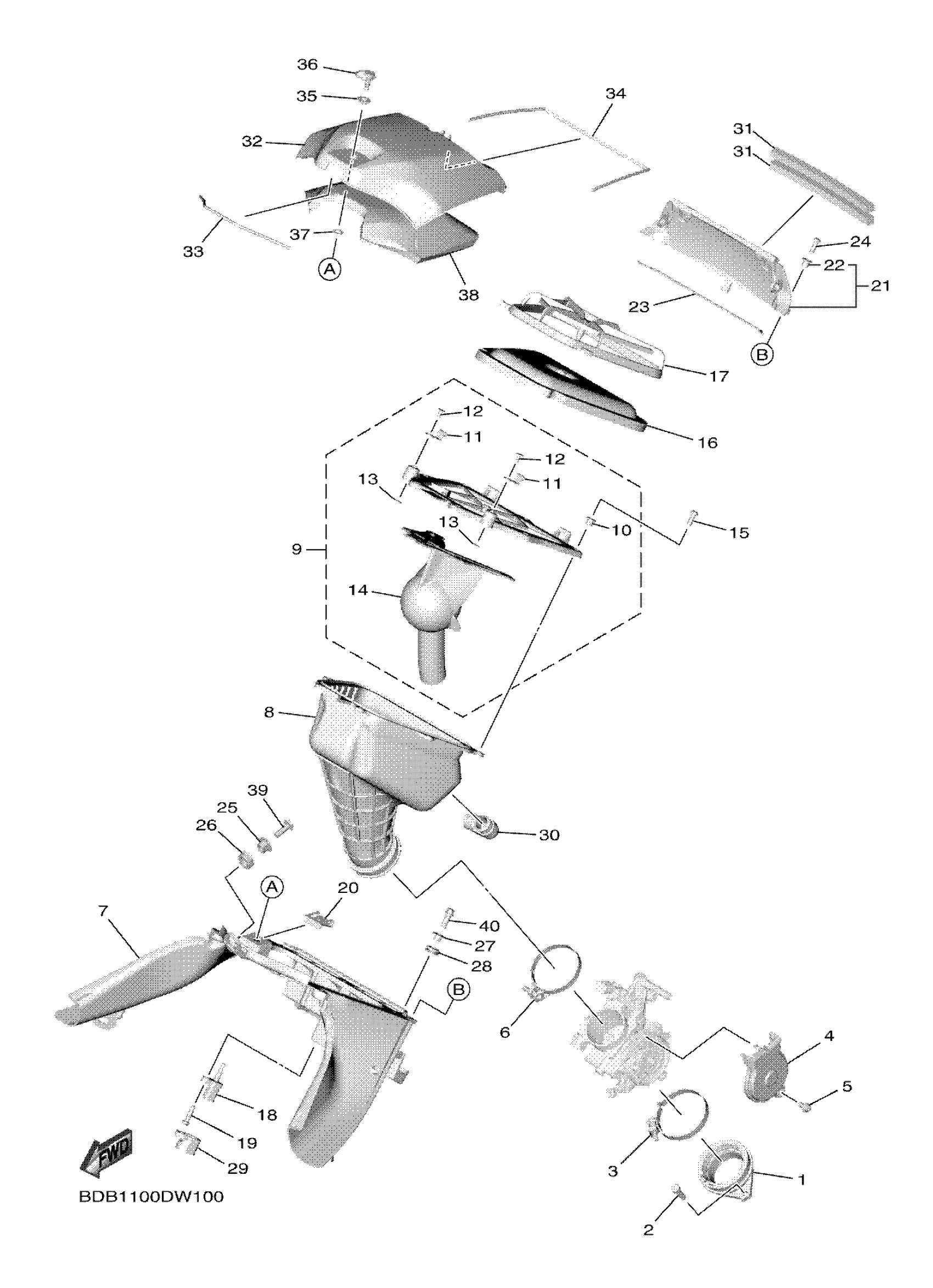

2021 Yamaha WR450F (WR450FM) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

BR9-13597-00-00

1
Out of stock

2

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-60004-00

1
Out of stock

4

COVER 1

BR9-14293-00-00

—
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

1
Out of stock

6

HOSE CLAMP ASSY

90450-58006-00

1
Out of stock

7

CASE, AIR CLEANER 1

BR9-14411-01-00

1
Out of stock

8

JOINT, AIR CLEANER 1

B3J-14453-01-00

—
Out of stock

9

HOLDER, GUIDE

B7R-14459-01-00

—
Out of stock

10

COLLAR

90387-05055-00

1
Out of stock

11

HINGE

8GC-14406-00-00

1
Out of stock

12

RIVET, BLIND

90267-32013-00

1
Out of stock

13

WASHER, PLATE

90201-03008-00

1
Out of stock

14

CHAMBER, AIR

B7R-13581-00-00

—
Out of stock

15

SCREW,PAN HEAD

98502-05014-00

1
Out of stock

16

ELEMENT, AIR CLEANER

B2W-14451-01-00

—
Out of stock

17

GUIDE

BR9-14458-00-00

—
Out of stock

18

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—
Out of stock

19

SCREW, PANHEAD TAPPING

97702-50520-00

—
Out of stock

20

PLATE, SPRING

4XV-2177L-01-00

—
Out of stock

21

CAP, CLEANER CASE 2

BR9-14422-00-00

—
Out of stock

22

COLLAR

90387-05055-00

1
Out of stock

23

SEAL

BR9-14462-00-00

—
Out of stock

24

SCREW,PAN HEAD

98502-05014-00

1
Out of stock

25

COLLAR

BR9-14449-00-00

—
Out of stock

26

GROMMET

90480-01028-00

—
Out of stock

27

COLLAR

90387-06273-00

—
Out of stock

28

GROMMET (2T4)

90480-12237-00

—
Out of stock

29

HOLDER

20S-1445C-01-00

—
Out of stock

30

PIPE

B3J-14419-00-00

—
Out of stock

31

DAMPER, PLATE 6

2D1-2414R-00-00

—
Out of stock

32

CAP, CLEANER CASE 1

BR9-14412-00-00

—
Out of stock

33

SEAL

1SL-14452-00-00

—
Out of stock

34

SEAL

BR9-14457-00-00

—
Out of stock

35

COLLAR

90387-07045-00

—
Out of stock

36

HEAD

1SL-28386-00-00

—
Out of stock

37

WASHER, SPECIAL 1

5TJ-21757-00-00

—
Out of stock

38

DAMPER 1

B7R-14425-00-00

—
Out of stock

39

BOLT, FLANGE

90105-06203-00

—
Out of stock

40

BOLT, FLANGE DEEP RECESS

95E37-06016-00

—
Out of stock
