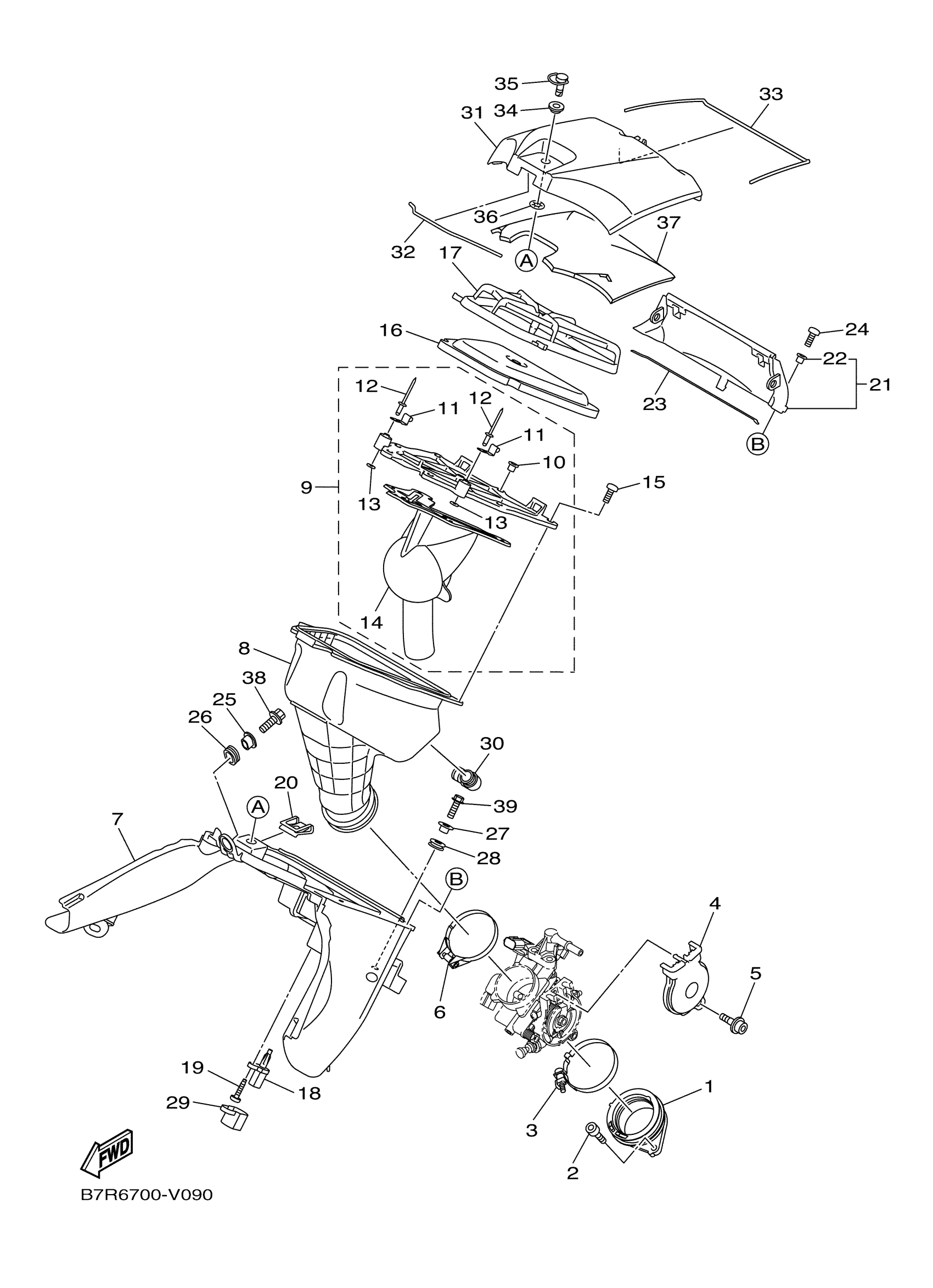

Yamaha WR450FL (WR450F) B7R7 2020 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

BR9-13597-00-00

$51.74

2

BOLT,SOCKET HEAD

91314-06020-00

$1.91

3

HOSE CLAMP ASSY

90450-60004-00

$13.70

4

COVER 1

BR9-14293-00-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$6.18

6

HOSE CLAMP ASSY

90450-58006-00

$17.92

7

CASE, AIR CLEANER 1

BR9-14411-01-00

$68.90

8

JOINT, AIR CLEANER 1

B3J-14453-00-00

$69.02

9

HOLDER, GUIDE

B7R-14459-00-00

Unavailable

10

COLLAR

90387-05055-00

$1.68

11

HINGE

8GC-14406-00-00

$7.05

12

RIVET, BLIND

90267-32013-00

$1.88

13

WASHER, PLATE

90201-03008-00

$5.80

14

CHAMBER, AIR

B7R-13581-00-00

Unavailable

15

SCREW,PAN HEAD

98502-05014-00

$1.88

16

ELEMENT, AIR CLEANER

B3J-14451-12-00

Unavailable

17

GUIDE

BR9-14458-00-00

Unavailable

18

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

19

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

20

PLATE, SPRING

4XV-2177L-01-00

Unavailable

21

CAP, CLEANER CASE 2

BR9-14422-00-00

Unavailable

22

COLLAR

90387-05055-00

$1.68

23

SEAL

BR9-14462-00-00

Unavailable

24

SCREW,PAN HEAD

98502-05014-00

$1.88

25

COLLAR

BR9-14449-00-00

Unavailable

26

GROMMET

90480-01028-00

Unavailable

27

COLLAR

90387-06273-00

Unavailable

28

GROMMET (2T4)

90480-12237-00

Unavailable

29

HOLDER

20S-1445C-01-00

Unavailable

30

PIPE

B3J-14419-00-00

Unavailable

31

CAP, CLEANER CASE 1

BR9-14412-00-00

Unavailable

32

SEAL

1SL-14452-00-00

Unavailable

33

SEAL

BR9-14457-00-00

Unavailable

34

COLLAR

90387-07045-00

Unavailable

35

HEAD

1SL-28386-00-00

Unavailable

36

WASHER, SPECIAL 1

5TJ-21757-00-00

Unavailable

37

DAMPER 1

B7R-14425-00-00

Unavailable

38

BOLT, FLANGE

90105-06203-00

Unavailable

39

BOLT, FLANGE DEEP RECESS

95E37-06016-00

Unavailable
