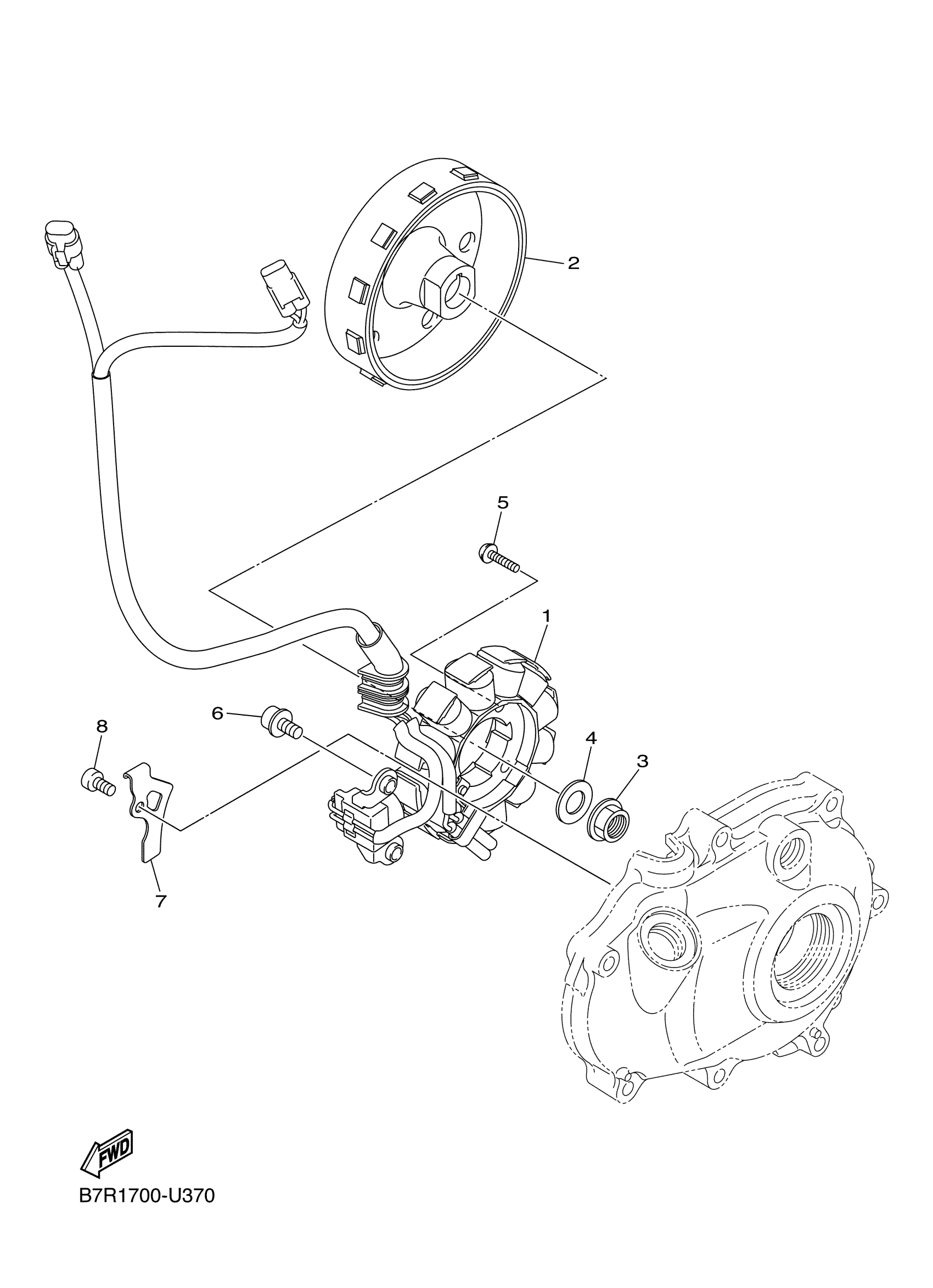

Yamaha WR450FL (WR450F) B7R7 2020 GENERATOR Diagram

#

Description

Price

1

STATOR ASSY

BR9-81410-03-00

$206.71

2

ROTOR ASSY

B7R-81450-01-00

$447.92

3

NUT(3EF)

90179-12657-00

$4.96

4

WASHER, PLATE (5N6)

90201-127E1-00

$3.45

5

SCREW

90149-05024-00

$5.75

6

BOLT, HEXAGON SOCKET HEAD

90110-06248-00

Unavailable

7

CLAMP 1

BR9-81528-00-00

$2.82

8

BOLT

91312-05010-00

$4.60
