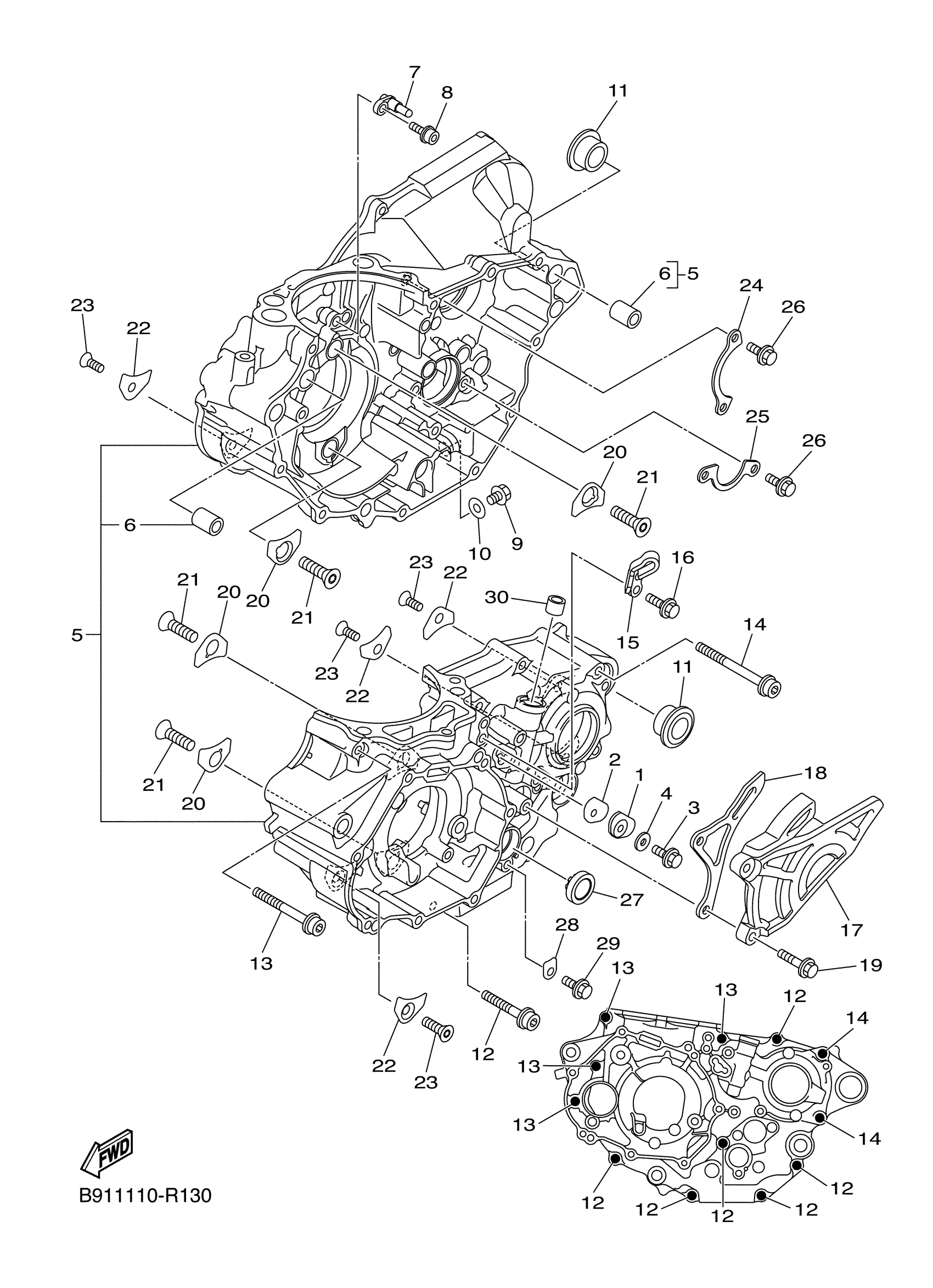

Find the part on the Crankcase diagram for your 2018 Yamaha WR450F (WR450FJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha WR450F (WR450FJ) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE

BR9-13371-00-00

1

$10.46

In stock

2

GASKET

1SL-13475-00-00

1

$11.51

In stock

3

BOLT, FLANGE

90105-06203-00

1

$1.82

In stock

4

GASKET (4V2)

90430-06166-00

1

$3.45

In stock

5

CRANKCASE ASSY

1SL-15100-09-00

—
Out of stock

6

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

7

NOZZLE 3

1SL-15155-00-00

—
Out of stock

8

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock

9

BOLT, FLANGE

95022-10016-00

1

$6.28

In stock

10

GASKET

90430-10188-00

1

$5.98

In stock

11

COLLAR

90387-17015-00

1
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

1

$1.78

In stock

13

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

1

$2.52

In stock

14

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

1

$3.15

In stock

15

HOLDER, CLUTCH CABLE

2GC-15441-00-00

—
Out of stock

16

BOLT, FLANGE

90105-06100-00

—

$5.58

In stock

17

COVER, CRANKCASE 2

1SL-15421-00-00

—

$14.25

In stock

18

GUIDE, CHAIN

1SL-17466-00-00

—

$14.68

In stock

19

BOLT, FLANGE

90105-06189-00

—

$6.17

In stock

20

PLATE, BEARING COVER

18P-15383-00-00

—

$6.72

In stock

21

SCREW, COUNTERSUNK

90151-08003-00

—

$5.54

In stock

22

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

23

SCREW, COUNTERSUNK

90151-06052-00

—

$6.38

In stock

24

PLATE, BEARING COVER

1SL-15388-00-00

—
Out of stock

25

PLATE, STOPPER 2

1SL-18562-00-00

—

$5.74

In stock

26

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

27

GAUGE, LEVEL

3Y1-15361-00-00

—

$25.51

In stock

28

HOLDER

5XC-15118-00-00

—

$4.12

In stock

29

BOLT, FLANGE

95022-06010-00

—

$5.45

In stock

30

BUSH, BIMETAL FORMED

90384-06003-00

—
Out of stock
