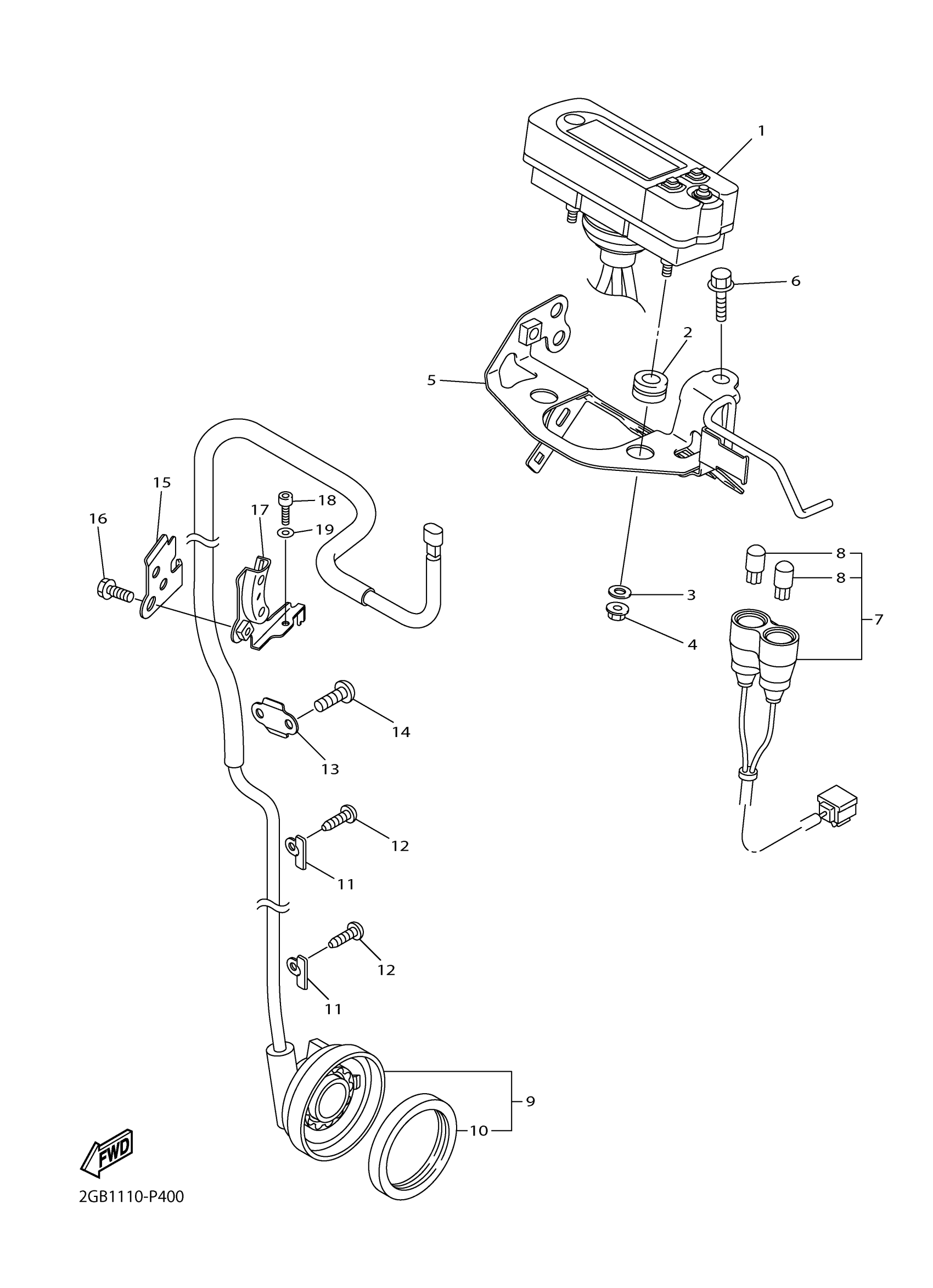

Yamaha WR450FH (WR450F) 2GC6 2017 METER Diagram

#

Description
Price

1

METER ASSY (MPH)

2GB-83500-20-00

Unavailable

2

GROMMET

90480-14012-00

Unavailable

3

WASHER, PLATE

90201-05021-00

$1.54

4

NUT, FLANGE

95702-05500-00

$0.73

5

BRACKET, METER

2GB-83519-01-00

Unavailable

6

BOLT, FLANGE

90105-06170-00

$3.95

7

PILOT LIGHT ASSY

2GB-83530-00-00

Unavailable

8

BULB (12V-1.7W)

3FV-83517-00-00

$6.04

9

SENSOR, SPEED

2GB-83755-00-00

$248.45

10

SEAL,OIL

93105-47007-00

$12.73

11

PLATE 2

5TJ-8375F-C0-00

$8.68

12

SCREW, TAPPING

97702-40010-00

$2.30

13

PLATE 1

5TJ-8375E-C0-00

$6.62

14

BOLT, BUTTON HEAD

92012-05008-00

$2.19

15

CLAMP

2GB-83595-00-00

$5.80

16

BOLT, FLANGE

90105-06105-00

Unavailable

17

BRACKET 1

2GB-23591-00-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable
