2017 Yamaha WR450F (WR450FH) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2017 Yamaha WR450F (WR450FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

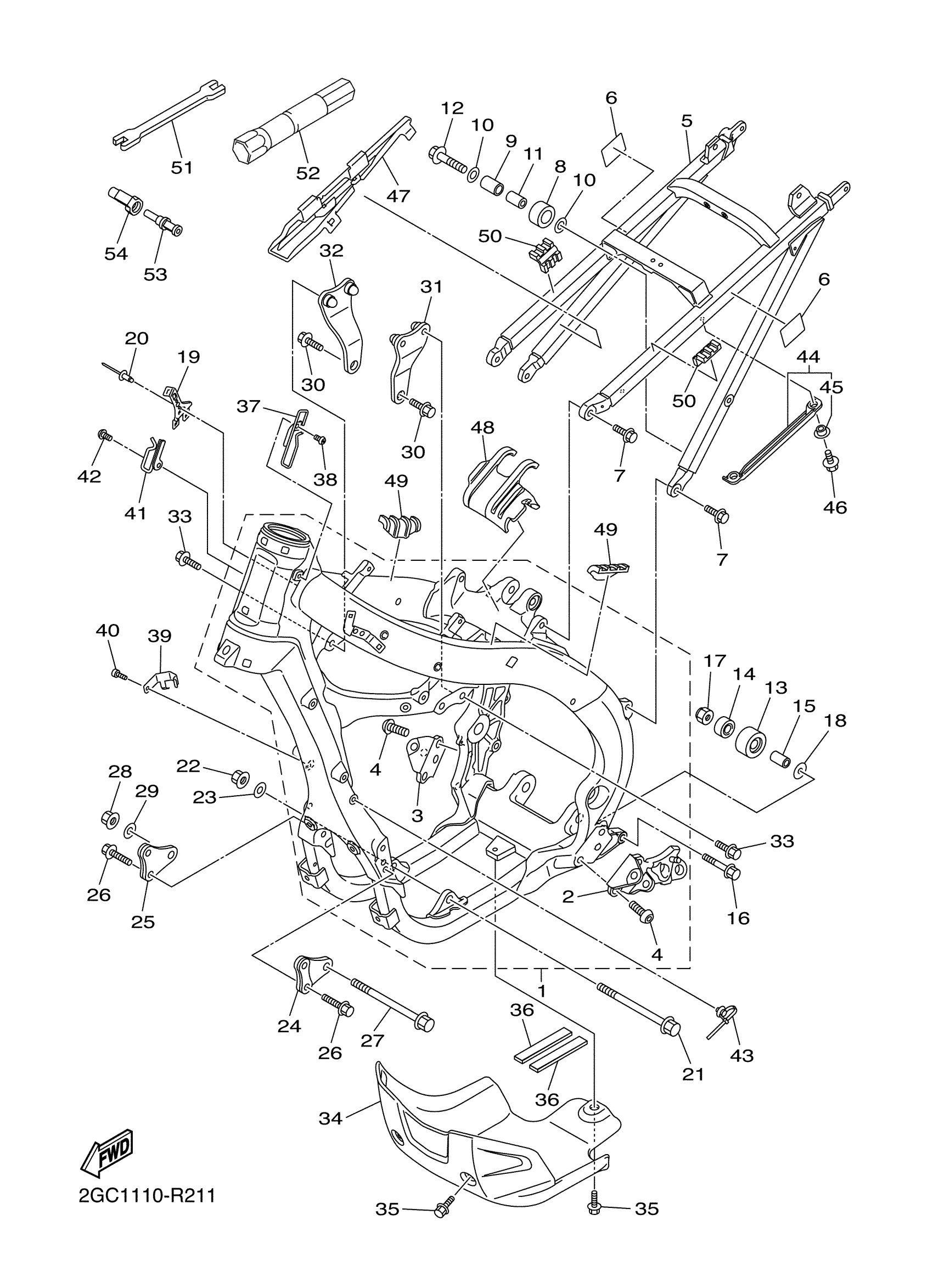

2017 Yamaha WR450F (WR450FH) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

2GC-21101-01-00

1
Out of stock

2

BRACKET, FOOTREST

2GB-21447-00-00

1
Out of stock

3

BRACKET, FOOTREST

17D-21448-00-00

1
Out of stock

4

SCREW

90149-10033-00

1
Out of stock

5

REAR FRAME COMP.

1SL-21190-10-00

1
Out of stock

6

PROTECTOR

33D-23472-00-00

1
Out of stock

7

BOLT, FLANGE

90105-08230-00

1
Out of stock

8

TENSIONER

30X-22178-00-00

1
Out of stock

9

BUSH

4V4-22184-00-00

1
Out of stock

10

WASHER, PLATE

90201-08045-00

1
Out of stock

11

COLLAR

90387-08041-00

1
Out of stock

12

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

13

TENSIONER

3JD-22178-20-00

1
Out of stock

14

BEARING (3X3)

93300-60804-00

1
Out of stock

15

COLLAR(1NL)

90387-086N4-00

1
Out of stock

16

BOLT, FLANGE

90105-08133-00

—
Out of stock

17

NUT, U

95617-08100-00

—
Out of stock

18

WASHER, PLATE

90201-08043-00

—
Out of stock

19

BRACKET, BATTERY B

2GB-21149-00-00

—
Out of stock

20

RIVET, BLIND (2YK)

90267-32146-00

—
Out of stock

21

BOLT, FLANGE

90105-10456-00

—
Out of stock

22

NUT(4KG)

90179-10658-00

—
Out of stock

23

WASHER, PLATE

90201-10045-00

—
Out of stock

24

BRACKET, FRONT LOWER 1

2GC-21417-00-00

—
Out of stock

25

BRACKET, FRONT LOWER 2

2GC-21418-00-00

—
Out of stock

26

BOLT, FLANGE

90105-08143-00

—
Out of stock

27

BOLT, FLANGE

90105-10176-00

—
Out of stock

28

NUT(4KG)

90179-10658-00

—
Out of stock

29

WASHER, PLATE

90201-10045-00

—
Out of stock

30

BOLT, FLANGE

90105-10189-00

—
Out of stock

31

BRACKET, REAR UPPER 1

2GC-21425-00-00

—
Out of stock

32

BRACKET, REAR UPPER 2

2GC-21426-00-00

—
Out of stock

33

BOLT, FLANGE

90105-08143-00

—
Out of stock

34

GUARD, ENGINE 1

1DX-2147A-01-00

—
Out of stock

35

BOLT, WITH WASHER

90119-06166-00

—
Out of stock

36

DAMPER, PLATE

90520-04011-00

—
Out of stock

37

HOLDER, CLUTCH CAB

1SL-21163-01-00

—
Out of stock

38

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

39

BRACKET

1SL-2134V-01-00

—
Out of stock

40

BOLT

91312-05008-00

—
Out of stock

41

HOLDER, CLUTCH CAB

2GB-21163-00-00

—
Out of stock

42

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

43

CLAMP

90464-31002-00

—
Out of stock

44

COVER, SIDE 5

1SL-2171E-00-00

—
Out of stock

45

COLLAR

90387-065T2-00

—
Out of stock

46

BOLT, FLANGE

95022-06016-00

—
Out of stock

47

COVER, SIDE 6

2GB-2171X-00-00

—
Out of stock

48

DAMPER, LOCATING 1

2GB-24181-00-00

—
Out of stock

49

DAMPER, LOCATING 2

33D-24182-00-00

—
Out of stock

50

DAMPER, LOCATING 3

33D-24183-00-00

—
Out of stock

51

WRENCH, HEXAGON

5ET-28166-10-00

—
Out of stock

52

BOX, SPARK PLUG

5SL-2814F-00-00

—
Out of stock

53

CAP

18P-2467E-00-00

—
Out of stock

54

CASE, CAP

18P-2464V-01-00

—
Out of stock
