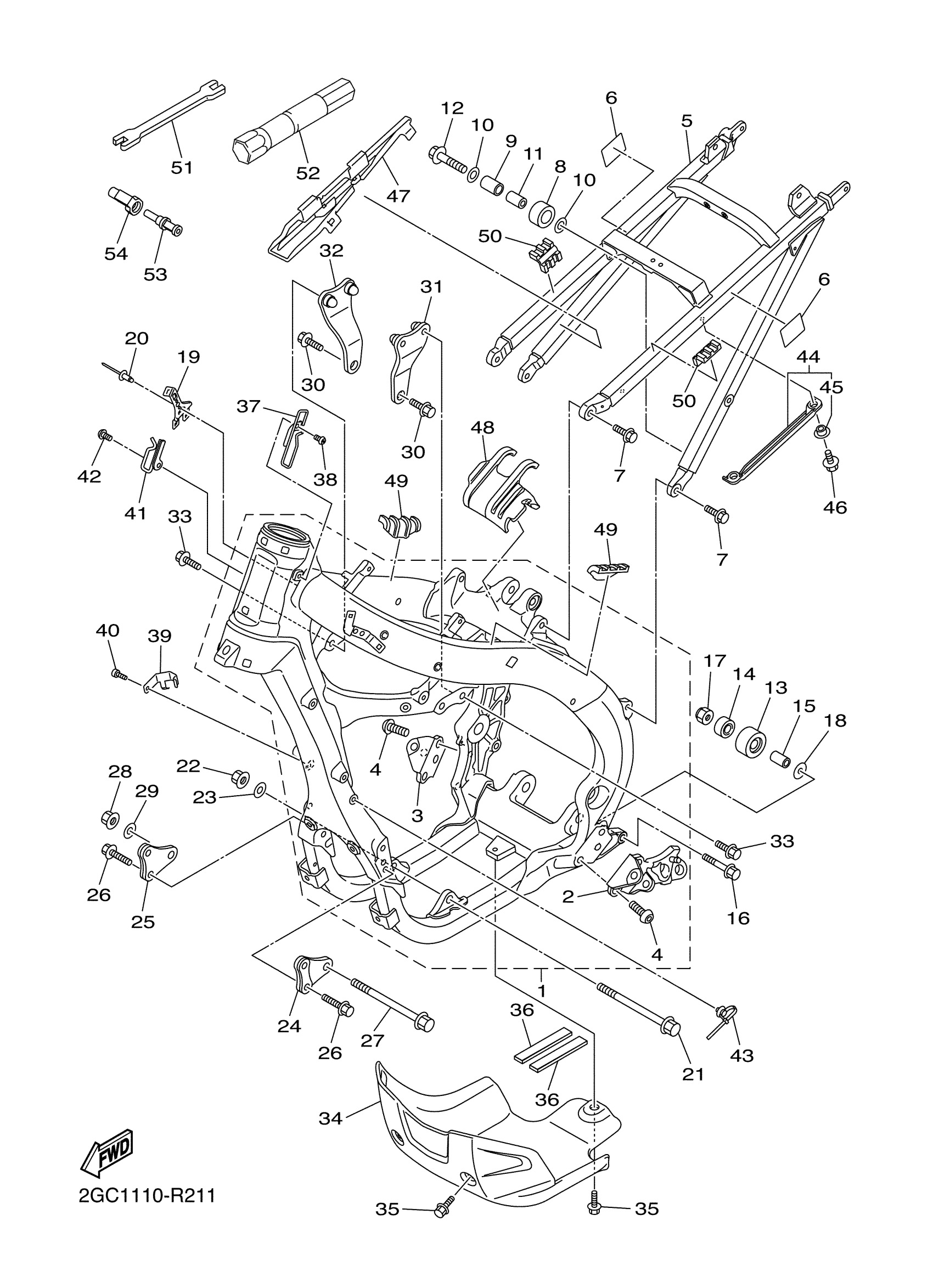

2016 Yamaha WR450F (WR450FG) Frame Diagram
Find the part on the Frame diagram for your 2016 Yamaha WR450F (WR450FG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
2GC-21101-01-00
2
BRACKET, FOOTREST
2GB-21447-00-00
5
REAR FRAME COMP.
1SL-21190-10-00
8
TENSIONER
30X-22178-00-00
16
BOLT, FLANGE
90105-08133-00
19
BRACKET, BATTERY B
2GB-21149-00-00
21
BOLT, FLANGE
90105-10456-00
24
BRACKET, FRONT LOWER 1
2GC-21417-00-00
25
BRACKET, FRONT LOWER 2
2GC-21418-00-00
31
BRACKET, REAR UPPER 1
2GC-21425-00-00
32
BRACKET, REAR UPPER 2
2GC-21426-00-00
34
GUARD, ENGINE 1
1DX-2147A-01-00
36
DAMPER, PLATE
90520-04011-00
39
BRACKET
1SL-2134V-01-00
41
HOLDER, CLUTCH CAB
2GB-21163-00-00
44
COVER, SIDE 5
1SL-2171E-00-00
45
COLLAR
90387-065T2-00
47
COVER, SIDE 6
2GB-2171X-00-00
48
DAMPER, LOCATING 1
2GB-24181-00-00
49
DAMPER, LOCATING 2
33D-24182-00-00
50
DAMPER, LOCATING 3
33D-24183-00-00
52
BOX, SPARK PLUG
5SL-2814F-00-00
