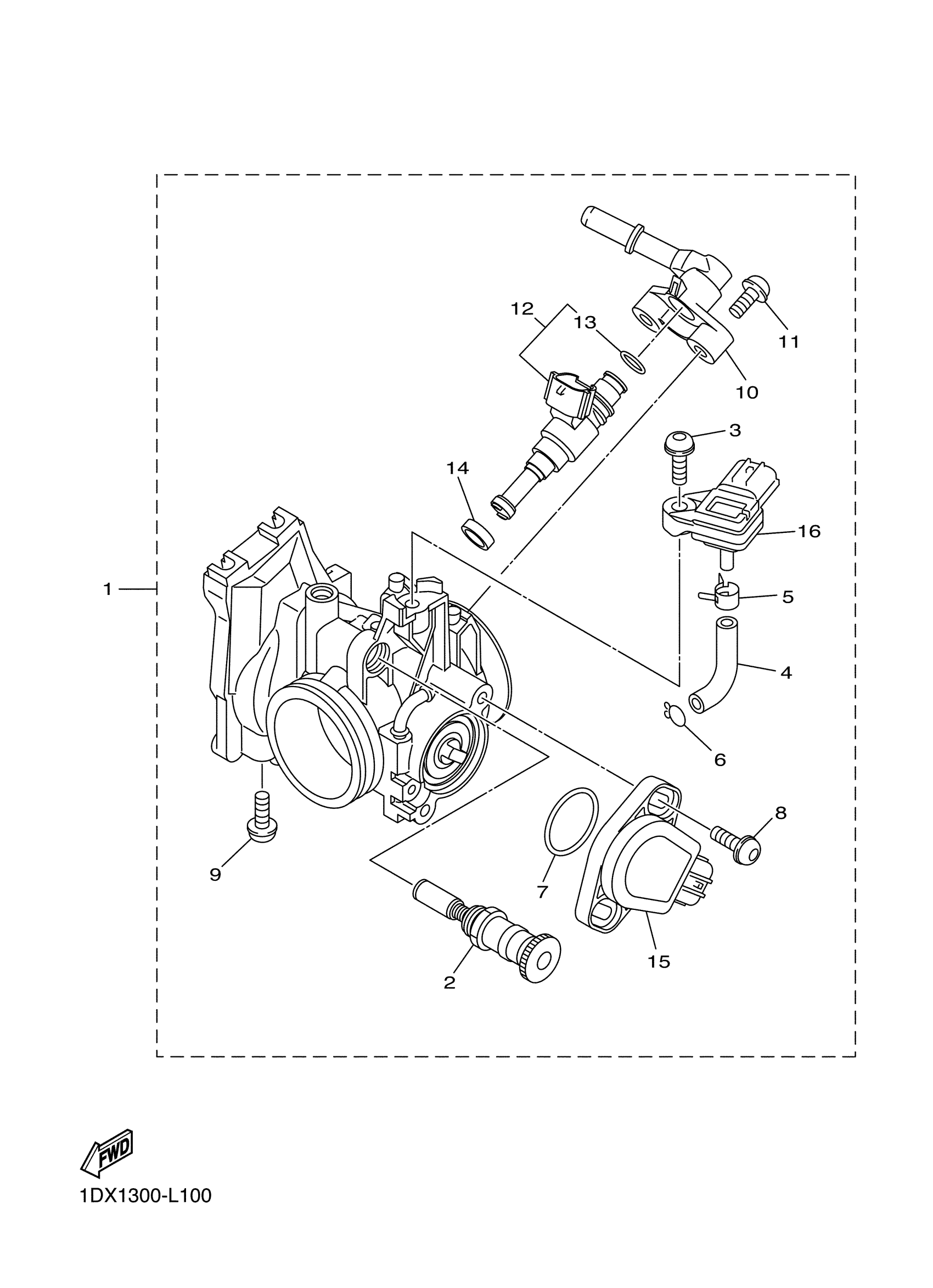

Yamaha WR450FE (WR450F) 1DXC 2014 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1DX-13750-13-00

Unavailable

2

PLUNGER, STARTER

1DX-14171-00-00

$182.05

3

SCREW, PAN HEAD

33D-14325-00-00

Unavailable

4

PIPE 1

33D-14348-00-00

$11.80

5

CLIP

33D-13577-00-00

$4.73

6

CLIP

3TJ-14137-40-00

$5.99

7

O-RING

1DX-14562-00-00

$5.59

8

SCREW

1DX-14216-00-00

$5.09

9

SCREW

1DX-14591-10-00

Unavailable

10

PIPE

1DX-13938-00-00

Unavailable

11

SCREW, ROD

33D-14486-00-00

$11.09

12

INJECTOR ASSY

3B4-13761-00-00

$185.98

13

O-RING

5PS-14147-00-00

$8.68

14

GASKET

90430-09002-00

$9.00

15

THROTTLE SENSOR ASSY

1DX-85885-01-00

Unavailable

16

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable
