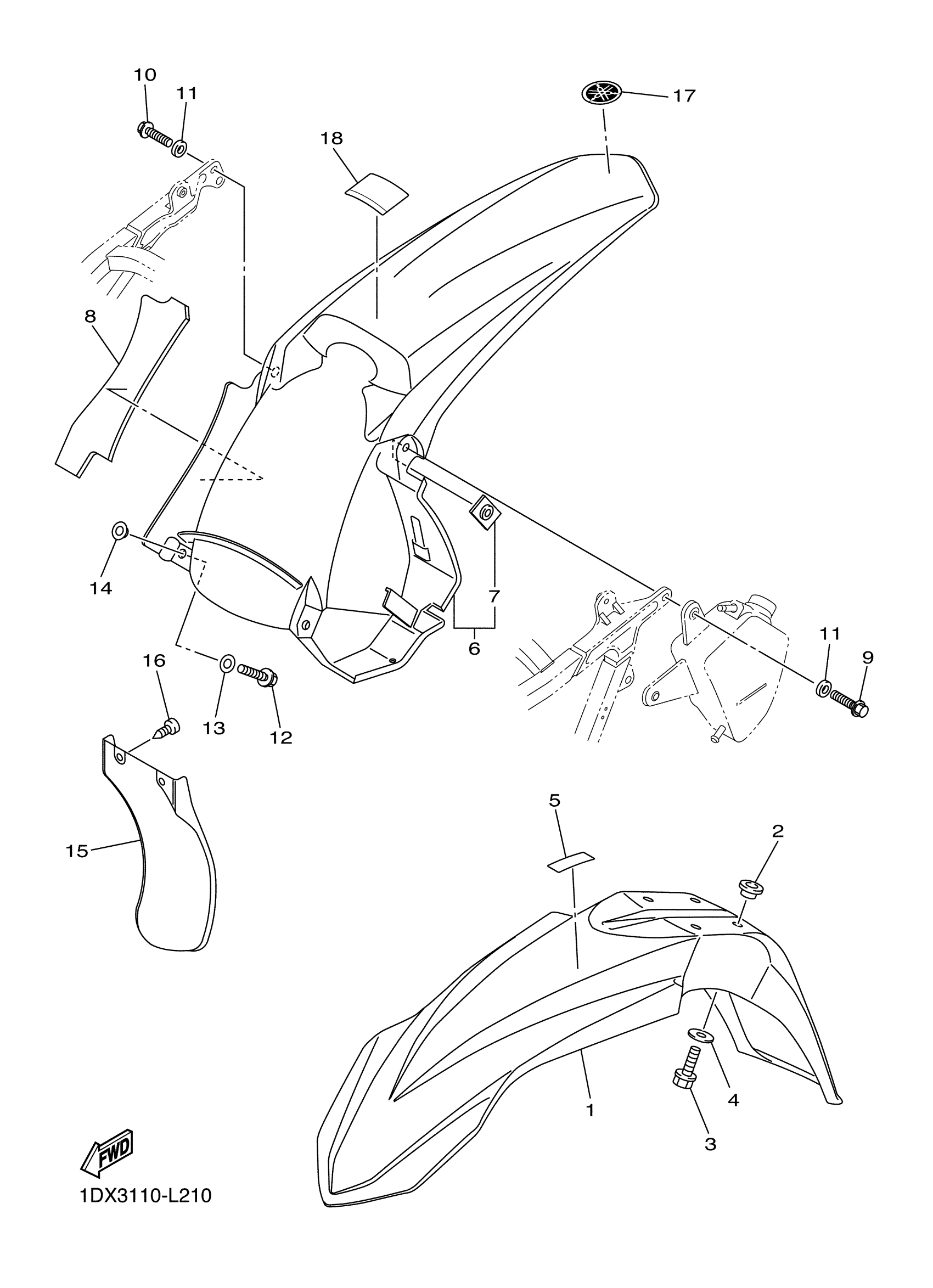

Yamaha WR450FE (WR450F) 1DXC 2014 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17D-21511-50-00

$26.59

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06127-00

$5.75

4

WASHER, PLATE

90201-06108-00

Unavailable

5

LABEL, CAUTION

3FB-2415E-02-00

$3.90

6

REAR FENDER COMP.

1HC-21610-90-00

Unavailable

7

NUT, REAR FENDER

5XE-21635-10-00

$11.84

8

INSULATOR, SIDE COVER 2

5UM-2174T-E0-00

Unavailable

9

BOLT, FLANGE

90105-06127-00

$5.75

10

BOLT, FLANGE

90105-06100-00

$5.20

11

WASHER, PLATE

90201-06032-00

$5.76

12

BOLT, FLANGE

90105-06106-00

$3.31

13

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

14

COLLAR

90387-06009-00

$7.37

15

GUARD, FLAP

5TA-21642-00-00

$33.43

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

EMBLEM

3C5-2411B-20-00

Unavailable

18

LABEL, CAUTION

5PA-2118K-01-00

Unavailable
