2014 Yamaha WR450F (WR450FE) Crankcase Diagram

← All diagrams

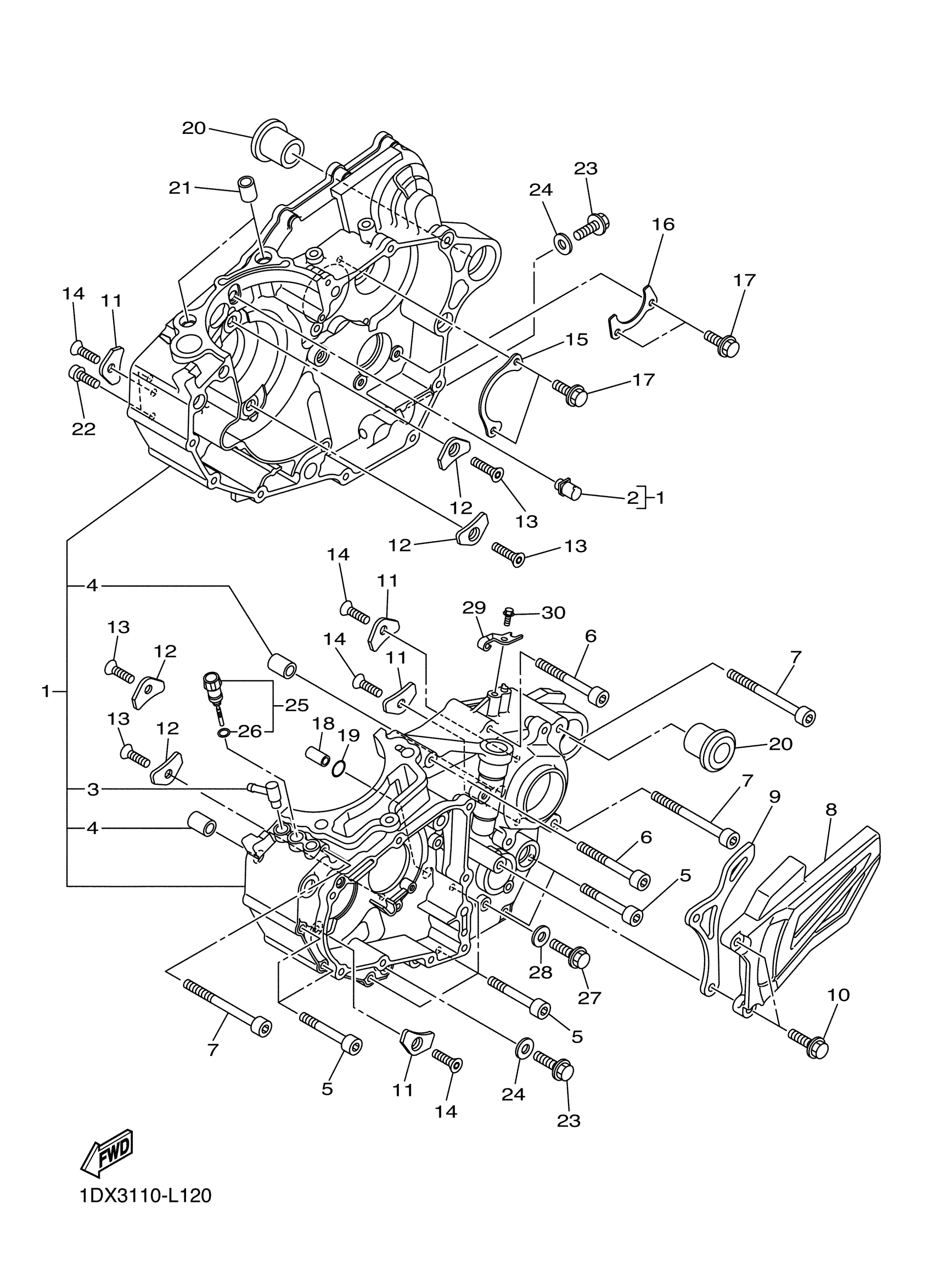

Find the part on the Crankcase diagram for your 2014 Yamaha WR450F (WR450FE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha WR450F (WR450FE) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

2S2-15100-39-00

—
Out of stock

2

NOZZLE 3

2S2-15155-10-00

1
Out of stock

3

PIPE, BREATHER

5XC-15373-00-00

1
Out of stock

4

PIN, DOWEL

99530-14016-00

1
Out of stock

5

BOLT

91312-06050-00

1
Out of stock

6

BOLT

91312-06060-00

1
Out of stock

7

BOLT, SOCKET

91314-06080-00

1
Out of stock

8

COVER, CRANKCASE 2

1DX-15421-00-00

—
Out of stock

9

GUIDE, CHAIN

2S2-17466-00-00

1
Out of stock

10

BOLT, FLANGE

90105-06189-00

1
Out of stock

11

PLATE, BEARING COVER

4JT-15381-01-00

1
Out of stock

12

PLATE, BEARING COVER

5BE-15383-01-00

1
Out of stock

13

SCREW, COUNTERSUNK

90151-06071-00

1
Out of stock

14

SCREW, COUNTERSUNK

90151-06052-00

1
Out of stock

15

PLATE, BEARING COVER

2S2-15388-00-00

1
Out of stock

16

PLATE, STOPPER 2

2S2-18562-00-00

—
Out of stock

17

BOLT, FLANGE

95022-06012-00

—
Out of stock

18

PIN, DOWEL(3VD)

99530-10114-00

—
Out of stock

19

O-RING (371)

93210-10197-00

—
Out of stock

20

COLLAR

90387-18007-00

—
Out of stock

21

PIN, DOWEL

99530-14016-00

1
Out of stock

22

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

—
Out of stock

23

BOLT, FLANGE

95814-08016-00

—
Out of stock

24

GASKET

90430-08119-00

—
Out of stock

25

PLUG, OIL LEVEL

2S2-1536A-00-00

—
Out of stock

26

O-RING (1J7)

93210-09350-00

—
Out of stock

27

BOLT, FLANGE

95022-06012-00

—
Out of stock

28

GASKET 256113960000

90430-06014-00

—
Out of stock

29

HOLDER, CLUTCH CABLE

5TA-15441-01-00

—
Out of stock

30

BOLT, FLANGE

95022-06016-00

—
Out of stock

31

BOTTOM END GASKET KIT

2S2-W0002-10-00

—
Out of stock
← Camshaft Chain Crankcase Cover 1 →
