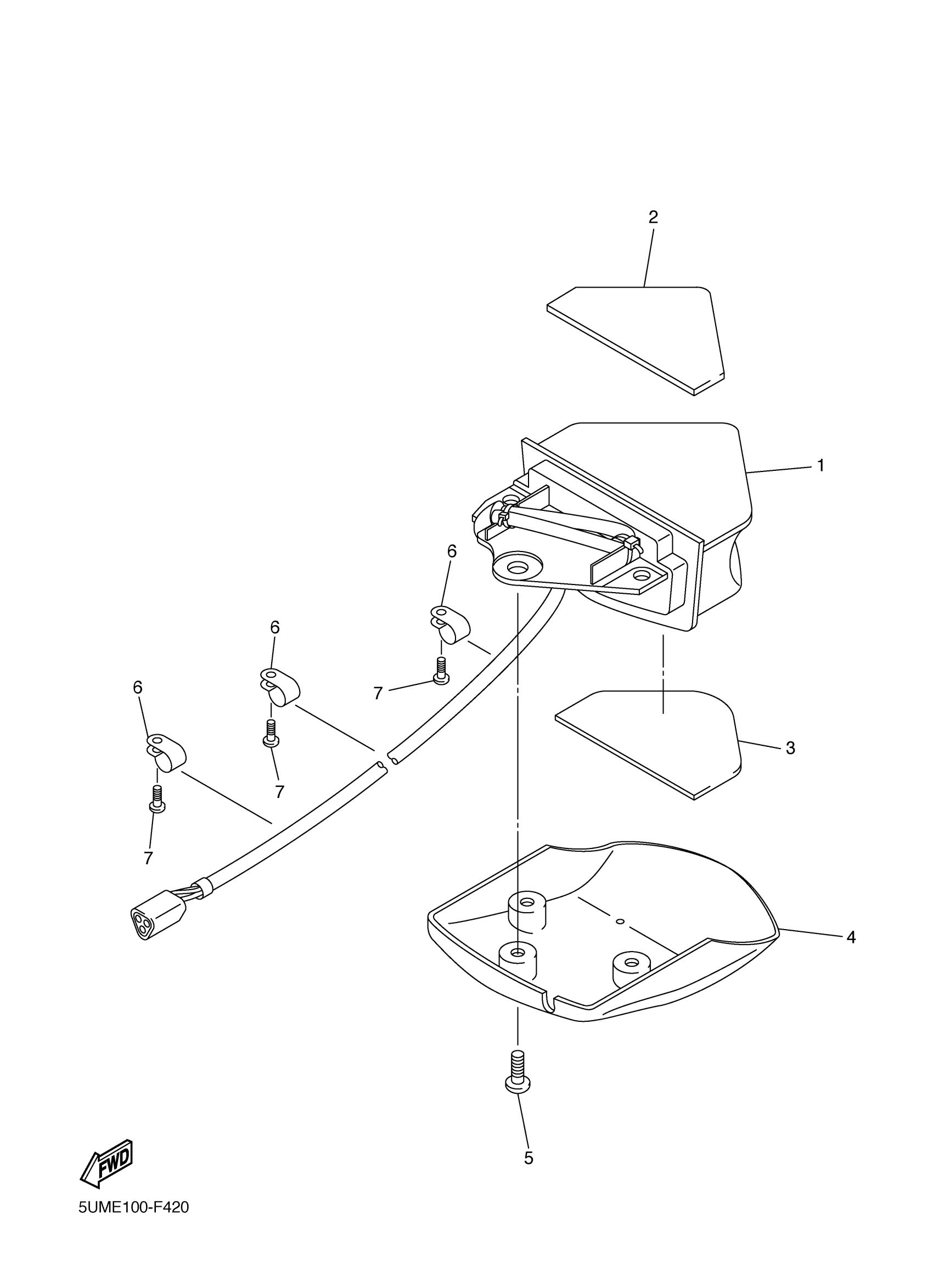

Yamaha WR450FA (WR450F) 1HB1 2011 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

5UM-84710-E0-00

$166.01

2

DAMPER, TAIL 1

5UM-84736-E0-00

$3.85

3

DAMPER, TAIL 2

5UM-84737-E0-00

$3.46

4

COVER, TAILLIGHT

5UM-84716-E0-00

Unavailable

5

SCREW, TAPPING

97702-50016-00

$1.85

6

CLAMP

90464-11M18-00

$5.31

7

SCREW, TAPPING

97702-40010-00

$2.30
