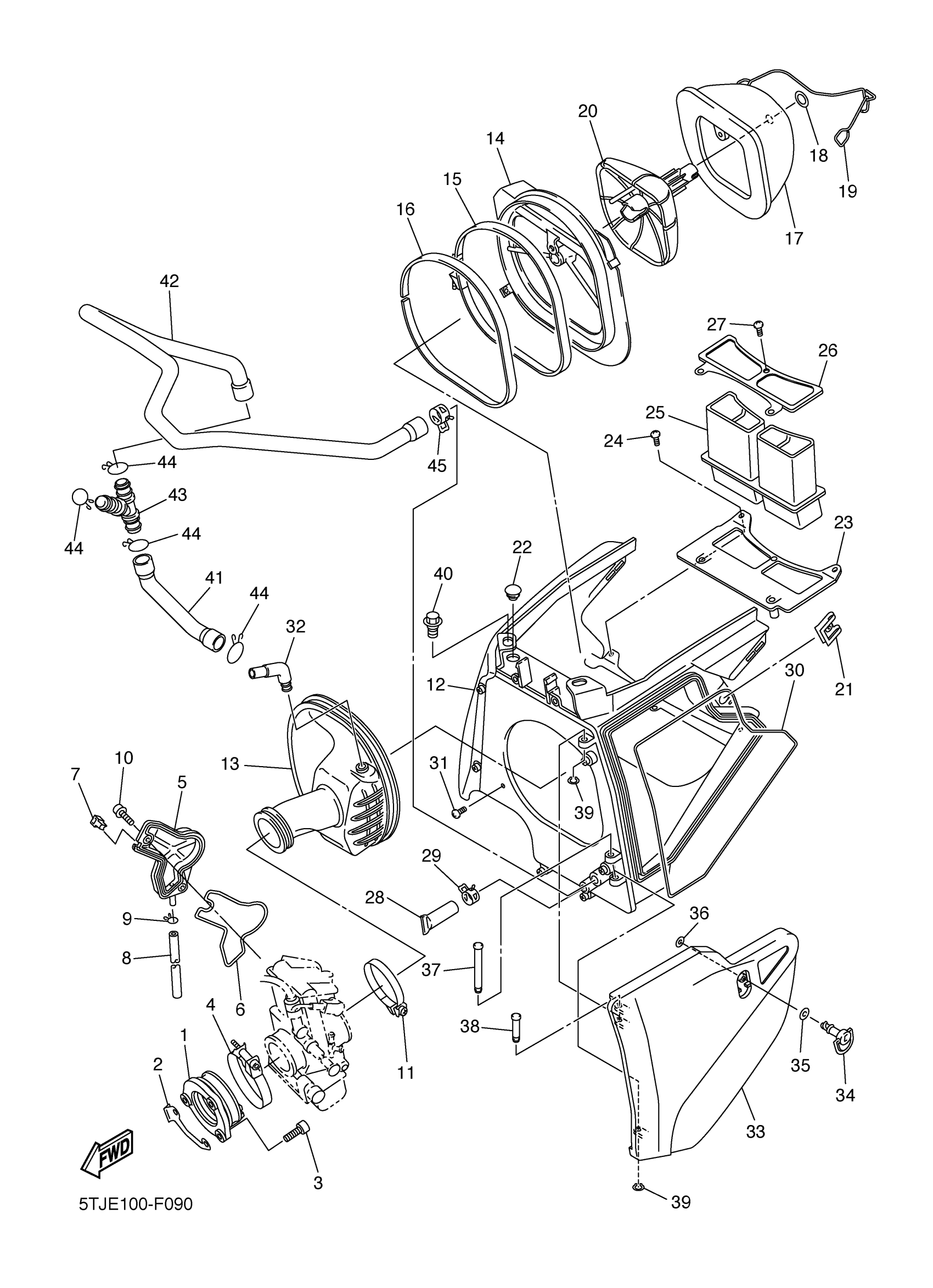

Find the part on the Intake diagram for your 2011 Yamaha WR450F (WR450FA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha WR450F (WR450FA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

2S2-13597-00-00

1
Out of stock

2

BRACKET 1

5TJ-14291-00-00

—
Out of stock

3

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

4

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

5

COVER 1

5TA-14293-00-00

1

$37.21

In stock

6

GASKET

5TA-14227-00-00

1

$27.53

In stock

7

SEAL

5TA-14239-00-00

1

$16.57

In stock

8

HOSE

5TA-14987-00-00

1

$12.06

In stock

9

CLIP

3TJ-14137-40-00

1

$6.43

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1

$6.28

In stock

11

HOSE CLAMP ASSY

90450-61002-00

1

$15.45

In stock

12

AIR CLEANER CASE ASSY

5UM-14401-E0-00

—
Out of stock

13

JOINT, AIR CLEANER 1

5TJ-14453-E0-00

—
Out of stock

14

HOLDER, GUIDE

5TJ-14459-01-00

1
Out of stock

15

BAND

5NY-14455-20-00

1

$34.03

In stock

16

SPACER

5NY-14442-00-00

—

$20.42

In stock

17

ELEMENT, AIR CLEANER

5UM-14451-E1-00

—
Out of stock

18

WASHER

5TJ-14475-00-00

—
Out of stock

19

BINDER 1

5UM-1441G-E0-00

—
Out of stock

20

GUIDE

5TJ-14458-00-00

—
Out of stock

21

PLATE, SPRING

4XV-2177L-01-00

—

$6.20

In stock

22

PLUG 288833190000

90338-07043-00

—

$5.35

In stock

23

DUCT

5UM-14437-E0-00

—
Out of stock

24

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

25

DUCT

5UM-1443A-E0-00

—
Out of stock

26

COVER 1

5UM-14417-E0-00

—
Out of stock

27

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

28

PIPE, DRAIN

5BF-1443E-00-00

—

$3.49

In stock

29

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

30

SEAL

51Y-14462-00-00

—

$11.61

In stock

31

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

32

PIPE

5TJ-14419-00-00

—

$7.57

In stock

33

COVER, CLEANER CASE 1

5UM-1441A-E0-00

—
Out of stock

34

HEAD

3FV-28386-00-00

—

$22.96

In stock

35

WASHER, SPECIAL 1

2TK-21757-00-00

—

$1.66

In stock

36

WASHER, SPECIAL 1

5TJ-21757-00-00

—

$6.43

In stock

37

PIN

90249-05005-00

—

$15.58

In stock

38

PIN

90249-05004-00

—
Out of stock

39

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

40

BOLT

90109-06245-00

—

$4.75

In stock

41

PIPE, BREATHER 2

5TJ-11167-10-00

—
Out of stock

42

PIPE, BREATHER 3

5TJ-11126-00-00

—
Out of stock

43

WAY 3

90413-14001-00

—

$15.82

In stock

44

CLIP

90467-160A4-00

—

$6.25

In stock

45

CLIP(3TB)

90467-17128-00

—

$6.68

In stock
