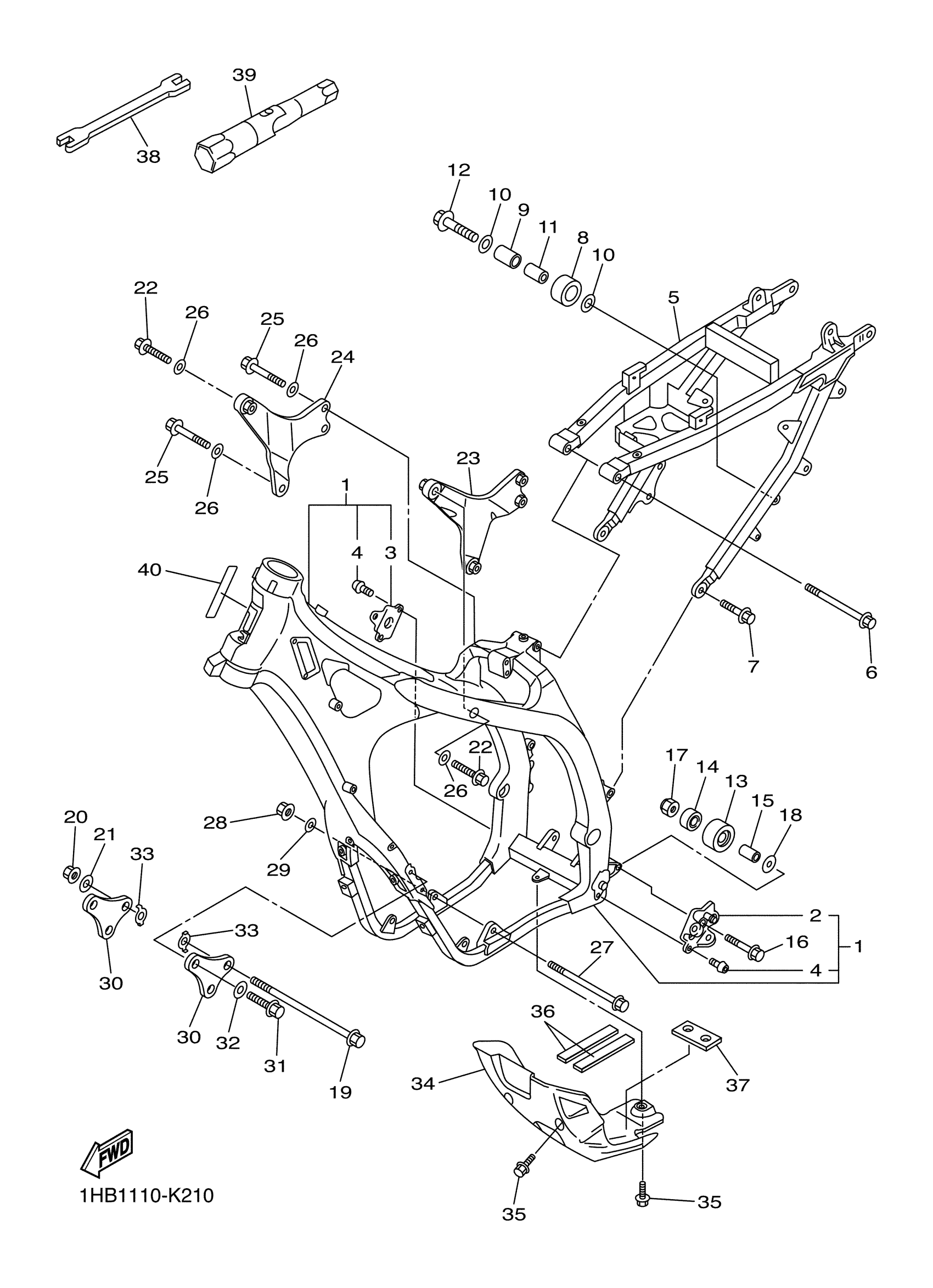

2011 Yamaha WR450F (WR450FA) Frame Diagram
Find the part on the Frame diagram for your 2011 Yamaha WR450F (WR450FA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
5TJ-21101-E0-00
2
BRACKET, FOOTREST
5UM-21447-E0-00
5
REAR FRAME COMP.
5UM-21190-E0-00
6
BOLT, FLANGE
90105-08156-00
8
TENSIONER
30X-22178-00-00
16
BOLT, FLANGE
90105-08133-00
19
BOLT, FLANGE
90105-10193-00
23
BRACKET, REAR UPPER 1
2S2-21425-70-00
24
BRACKET, REAR UPPER 2
2S2-21426-70-00
25
BOLT, FLANGE
90105-10191-00
30
BRACKET, FRONT LOWER 1
2S2-21417-00-00
32
. WASHER
92902-08200-00
33
PLATE, PATCH
5XC-21456-90-00
34
GUARD, ENGINE 1
5UM-2147A-E0-00
36
DAMPER 2
5UM-21486-E0-00
37
DAMPER, RUBBER 1
5TJ-21485-E1-00
39
BOX, SPARK PLUG
5TA-2814F-00-00
40
SEAL
5UM-21268-E0-00
