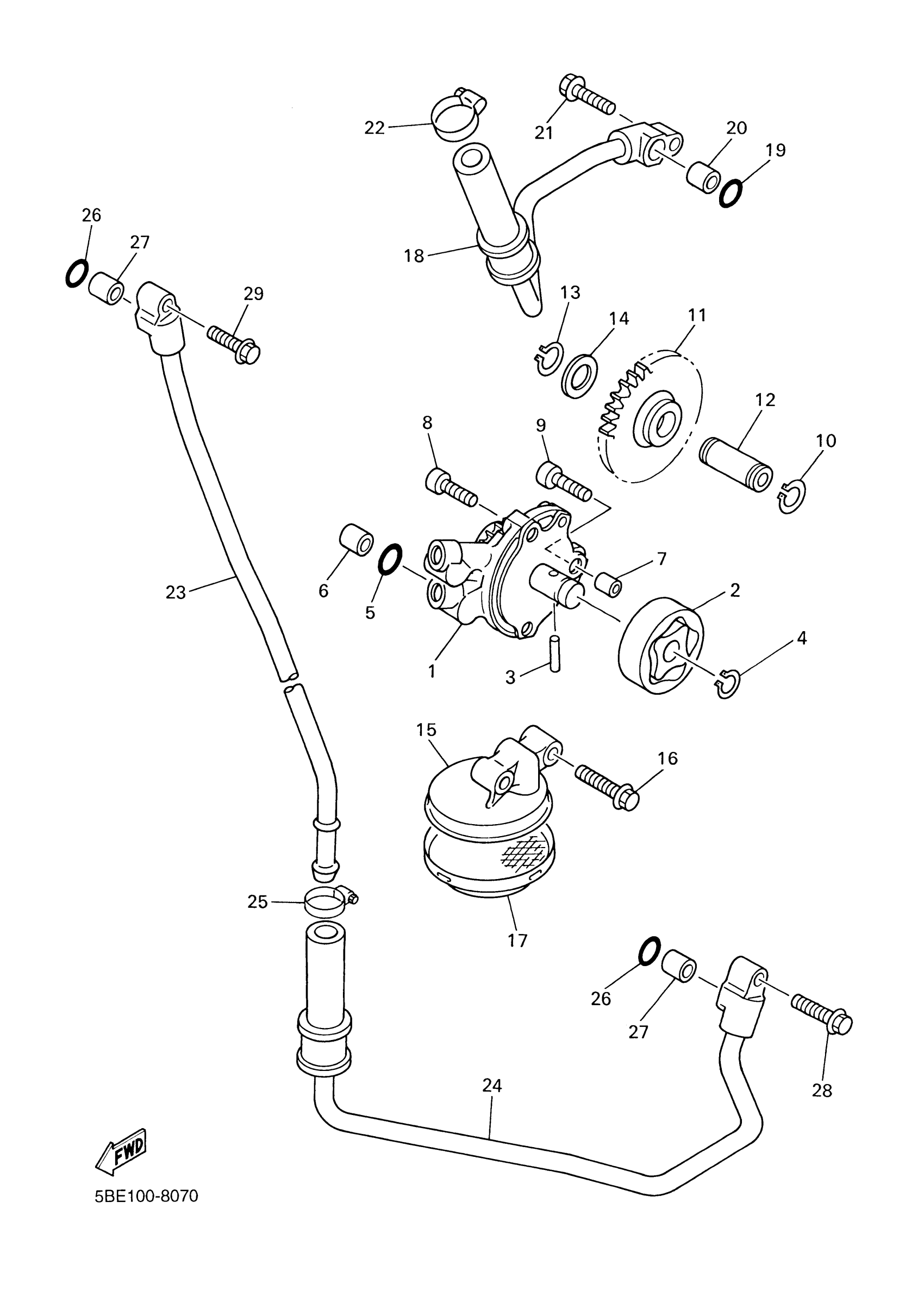

Yamaha WR426FP (WR426F) 5NG5 2002 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5BE-13300-10-00

Unavailable

2

ROTOR ASSY 1

1HX-13310-10-00

Unavailable

3

PIN,DOWEL

93603-17070-00

$2.91

4

CIRCLIP (4G0)

93440-10085-00

$5.75

5

O-RING (371)

93210-10197-00

$5.47

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

PIN, DOWEL

99530-08012-00

$4.89

8

BOLT,SOCKET

91317-06025-00

$1.91

9

BOLT, SOCKET

91314-06030-00

$5.75

10

CIRCLIP(2R6)

99001-08600-00

$5.75

11

GEAR, OIL PUMP IDLE

5BE-13341-00-00

$41.02

12

SHAFT, IDLE GEAR

5BE-13342-00-00

$18.52

13

CIRCLIP(10Y)

99009-12400-00

$2.87

14

WASHER PLATE 164185720000

90201-12166-00

$5.86

15

HOUSING, STRAINER

5BE-13412-00-00

Unavailable

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

STRAINER, OIL

5BE-13411-00-00

Unavailable

18

HOSE, OIL 1

5BE-13464-10-00

Unavailable

19

O-RING (371)

93210-10197-00

$5.47

20

PIN, DOWEL(3VD)

99530-10114-00

$2.13

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

23

PIPE, OIL 1

5BE-13416-00-00

Unavailable

24

HOSE, OIL 2

5BE-13465-10-00

Unavailable

25

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

26

O-RING (371)

93210-10197-00

$5.47

27

PIN, DOWEL(3VD)

99530-10114-00

$2.13

28

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

29

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
