2002 Yamaha WR426F (WR426FP) Intake Diagram

← All diagrams

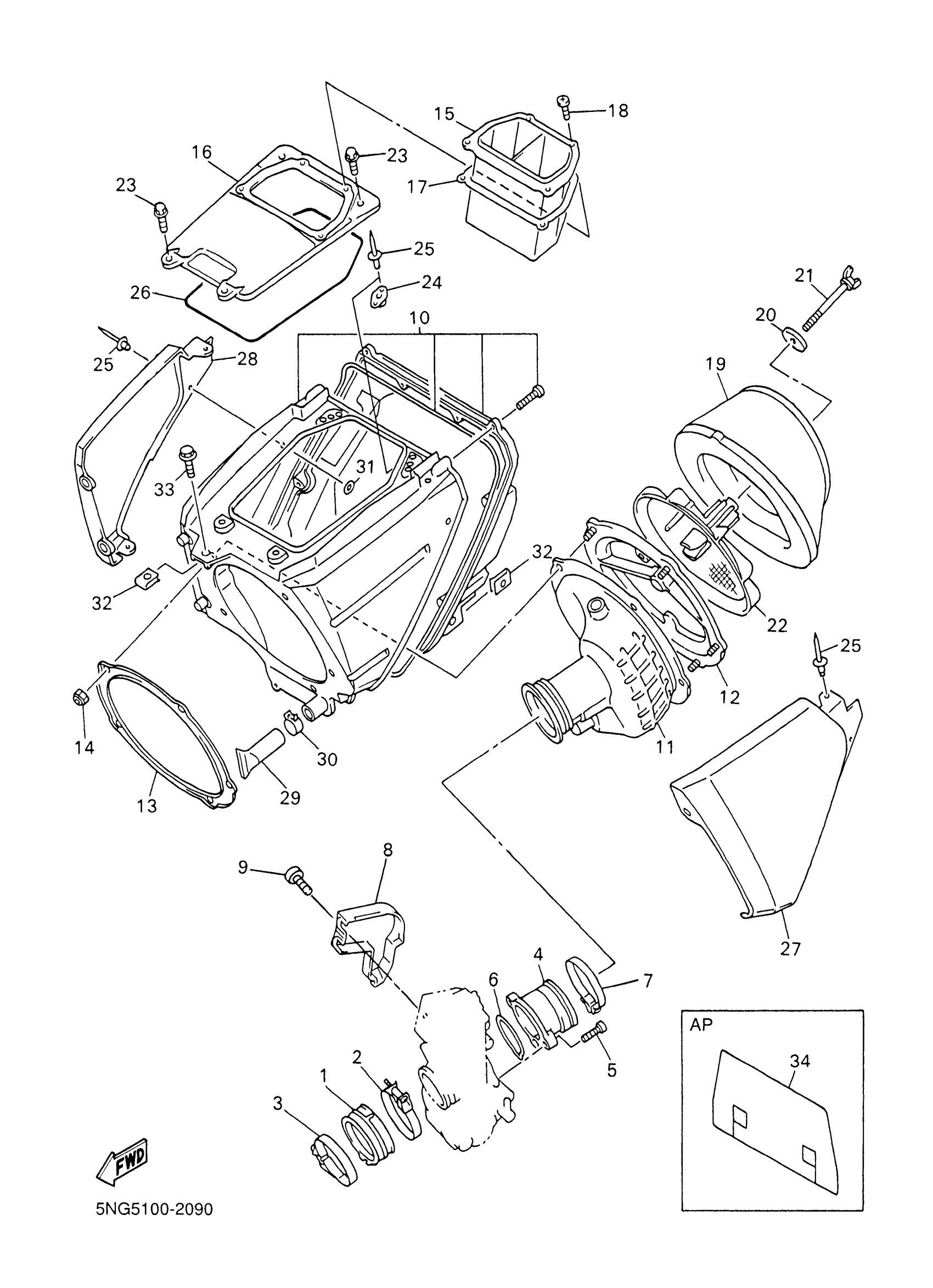

Find the part on the Intake diagram for your 2002 Yamaha WR426F (WR426FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha WR426F (WR426FP) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5SF-13597-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-59005-00

1

$14.05

In stock

4

JOINT, AIR FILTER 1

5JG-1440F-01-00

1
Out of stock

5

BOLT,SOCKET

91317-05014-00

1

$6.69

In stock

6

O-RING

4FN-14561-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-61002-00

1

$15.45

In stock

8

COVER 1

5JG-14293-01-00

—
Out of stock

9

BOLT

5JG-14428-00-00

1
Out of stock

10

AIR CLEANER CASE ASSY

5JG-14401-00-00

1
Out of stock

11

JOINT, AIR CLEANER 1

5JG-14453-00-00

1
Out of stock

12

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

13

PLATE

5MV-14477-00-00

1
Out of stock

14

NUT, U

95617-05100-00

1

$6.68

In stock

15

DUCT

5BF-14437-00-00

1
Out of stock

16

COVER, CLEANER CASE 1

5BF-1441A-10-00

1
Out of stock

17

SEAL

5BF-14452-00-00

—
Out of stock

18

SCREW, TRUSS TAP.

97707-50012-00

—

$3.15

In stock

19

ELEMENT, AIR CLEANER

4XM-14451-01-00

—

$36.43

In stock

20

WASHER (4H7)

90209-06096-00

—
Out of stock

21

BOLT, WING

90122-06005-00

—

$10.05

In stock

22

GUIDE

5BE-14458-10-00

—
Out of stock

23

—

$2.52

In stock

24

STAY 1

5BF-14493-00-00

1
Out of stock

25

RIVET (813)

90267-32070-00

—

$2.25

In stock

26

SEAL

51Y-14462-00-00

—

$11.61

In stock

27

COVER, CLEANER CASE 1

5BE-1441A-10-00

1
Out of stock

28

COVER, CLEANER CASE 2

5BE-1441E-10-00

1
Out of stock

29

PIPE, DRAIN

5BF-1443E-00-00

—

$3.49

In stock

30

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

31

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

32

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

33

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

34

COVER 1

5JG-14417-00-00

1
Out of stock
