2002 Yamaha WR426F (WR426FP) Front Wheel KIT Diagram

← All diagrams

Find the part on the Front Wheel KIT diagram for your 2002 Yamaha WR426F (WR426FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

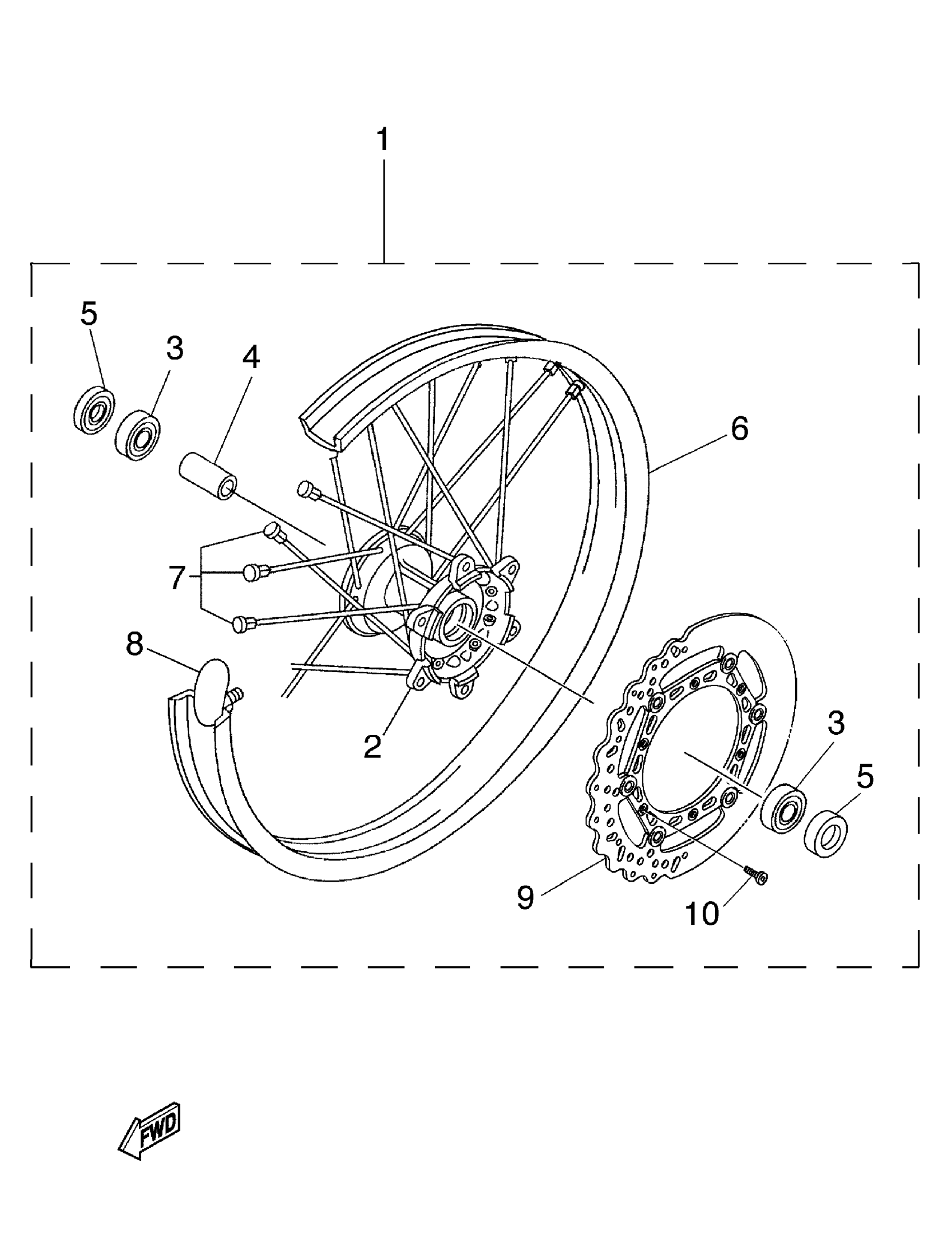

2002 Yamaha WR426F (WR426FP) Front Wheel KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPARE WHL ASSY- WR450F '06-'15

5TJ-W2519-J0-00

1
Out of stock

2

HUB, FRONT

5NG-25111-50-00

—
Out of stock

3

BEARING

93306-90409-00

1

$31.67

In stock

4

SPACER, BEARING

5NY-25117-00-00

1

$26.20

In stock

5

OIL SEAL

93102-26468-00

1

$18.32

In stock

6

RIM (1.60-21)

94416-21005-00

—

$372.95

In stock

7

SPOKE SET, FRONT

5NY-25104-00-00

1

$207.00

In stock

8

SPACER, BEAD

5SF-25394-00-00

1

$29.40

In stock

9

DISK BRAKE ASSY

2S2-2581T-70-00

1

$187.75

In stock

10

SCREW, COUNTERSUNK

90151-06079-00

1

$2.66

In stock
