2000 Yamaha WR400F (WR400FM) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2000 Yamaha WR400F (WR400FM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

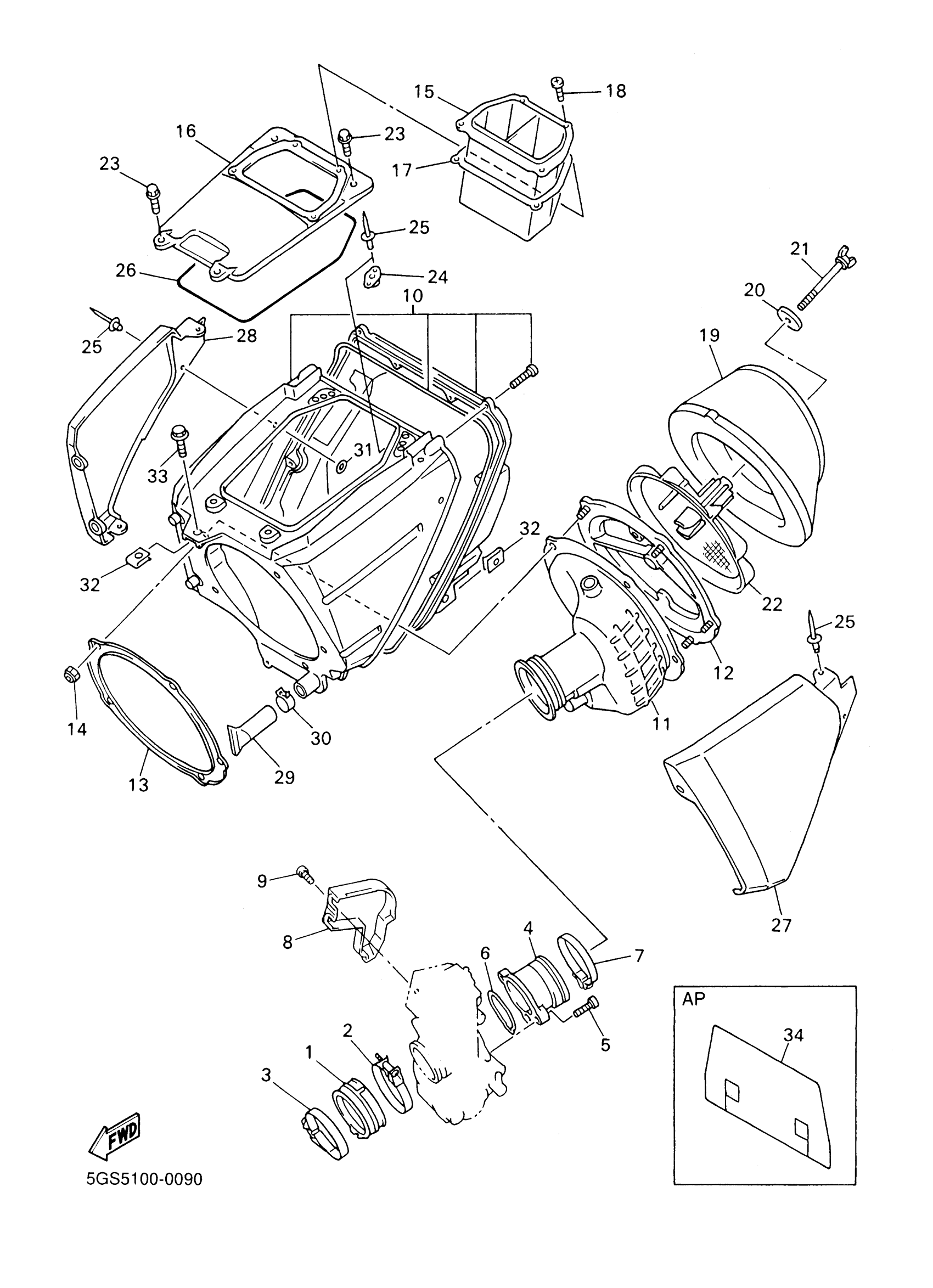

2000 Yamaha WR400F (WR400FM) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5SF-13597-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-62006-00

1
Out of stock

4

JOINT, AIR FILTER 1

5JG-1440F-01-00

1
Out of stock

5

BOLT,SOCKET

91317-05014-00

1
Out of stock

6

O-RING

4FN-14561-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-62006-00

1
Out of stock

8

COVER 1

5JG-14293-01-00

—
Out of stock

9

BOLT

5JG-14428-00-00

1
Out of stock

10

AIR CLEANER CASE ASSY

5JG-14401-00-00

1
Out of stock

11

JOINT, AIR CLEANER 1

5JG-14453-00-00

1
Out of stock

12

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

13

PLATE

5MV-14477-00-00

1
Out of stock

14

NUT, U

95617-05100-00

1
Out of stock

15

DUCT

5BF-14437-00-00

1
Out of stock

16

COVER, CLEANER CASE 1

5BF-1441A-10-00

1
Out of stock

17

SEAL

5BF-14452-00-00

—
Out of stock

18

SCREW, TRUSS TAP.

97707-50012-00

—
Out of stock

19

ELEMENT, AIR CLEANER

4XM-14451-01-00

—
Out of stock

20

WASHER (4H7)

90209-06096-00

—
Out of stock

21

BOLT, WING

90122-06005-00

—
Out of stock

22

GUIDE

5BE-14458-10-00

—
Out of stock

23

SCREW, OVAL FILLISTER (7X9)

90146-06014-00

—
Out of stock

24

STAY 1

5BF-14493-00-00

1
Out of stock

25

RIVET (813)

90267-32070-00

—
Out of stock

26

SEAL

51Y-14462-00-00

—
Out of stock

27

COVER, CLEANER CASE 1

5BE-1441A-00-00

1
Out of stock

28

COVER, CLEANER CASE 2

5BE-1441E-00-00

1
Out of stock

29

PIPE, DRAIN

5BF-1443E-00-00

—
Out of stock

30

CLIP(3TB)

90467-17128-00

—
Out of stock

31

WASHER, PLATE 8077743700

90201-03313-00

—
Out of stock

32

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

33

BOLT, FLANGE(4MY)

95027-06012-00

—
Out of stock

34

COVER 1

5JG-14417-00-00

1
Out of stock
