2000 Yamaha WR400F (WR400FM) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2000 Yamaha WR400F (WR400FM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

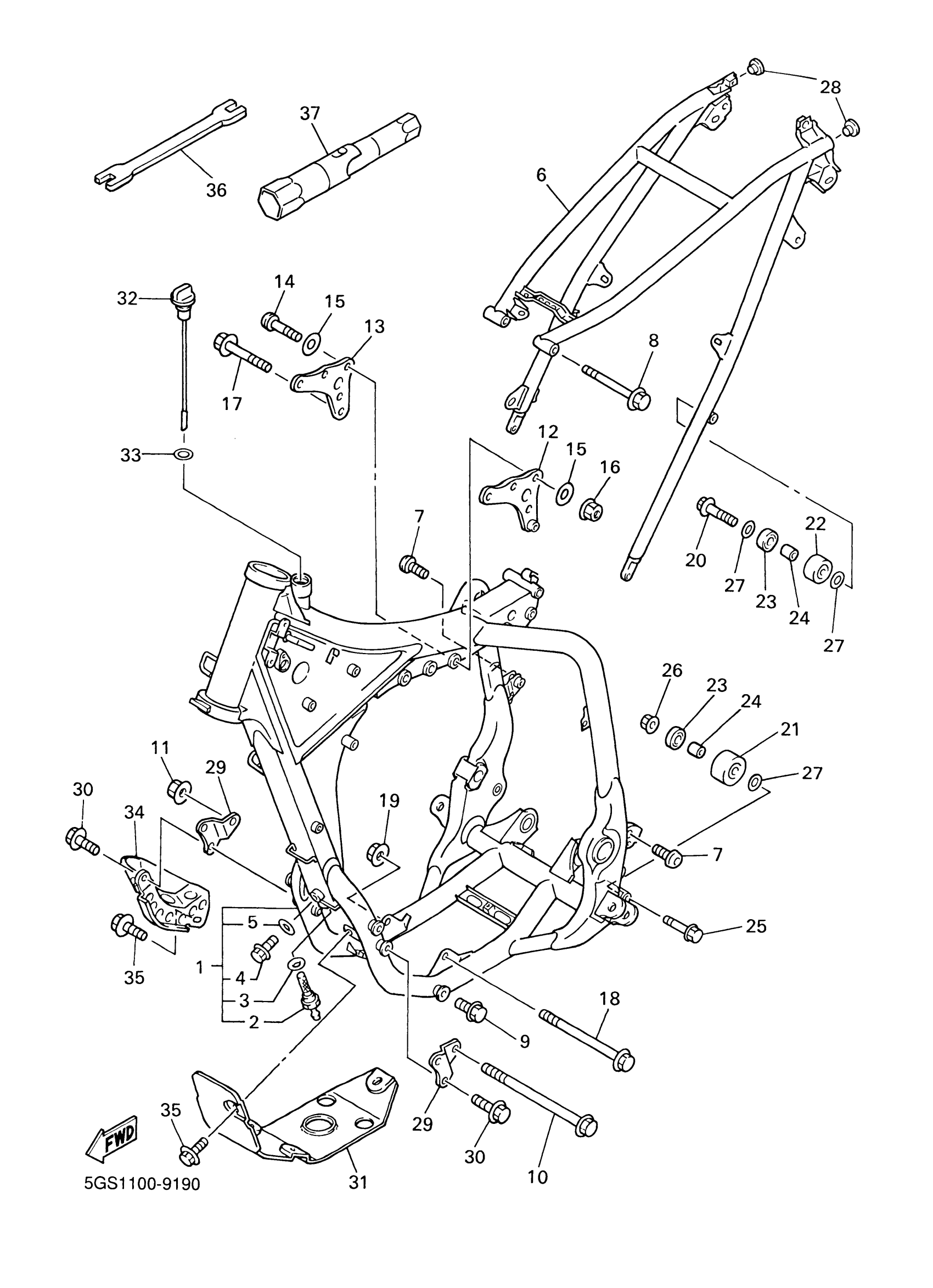

2000 Yamaha WR400F (WR400FM) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5GS-21101-50-P0

1
Out of stock

2

. NET, FILTER

5BE-21756-00-00

1
Out of stock

3

GASKET (1J7)

90430-18130-00

1

$6.17

In stock

4

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

5

GASKET

90430-08119-00

1

$4.70

In stock

6

REAR FRAME COMP.

5NG-21190-00-P0

1
Out of stock

7

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

8

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

9

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

10

BOLT, FLANGE

95817-10160-00

1
Out of stock

11

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

12

BRACKET, REAR UPPER 1

5GR-21425-01-00

1
Out of stock

13

BRACKET, REAR UPPER 1

5BE-21425-01-00

1
Out of stock

14

BOLT, BUTTON HEAD

92017-08055-00

1
Out of stock

15

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

16

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

17

BOLT, FLANGE(8AB)

95817-10050-00

—

$5.03

In stock

18

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

20

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

21

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

22

TENSIONER

4EW-22178-01-00

—
Out of stock

23

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

24

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

25

BOLT, FLANGE

95027-08065-00

—
Out of stock

26

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

27

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

28

GROMMET (1Y8)

90480-17218-00

—
Out of stock

29

BRACKET, FRONT LOWER 1

5BE-21417-00-00

1
Out of stock

30

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

31

PROTECTOR, ENGINE

5BE-21471-00-00

1
Out of stock

32

PLUG, OIL LEVEL

5BE-15362-00-00

1
Out of stock

33

O-RING (646)

93210-19123-00

—

$6.91

In stock

34

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

35

BOLT, SMALL FLANGE

95027-08012-00

—

$6.89

In stock

36

WRENCH, HEXAGON

5ET-28166-10-00

—

$28.32

In stock

37

BOX, SPARK PLUG

5BE-2814F-00-00

—
Out of stock
