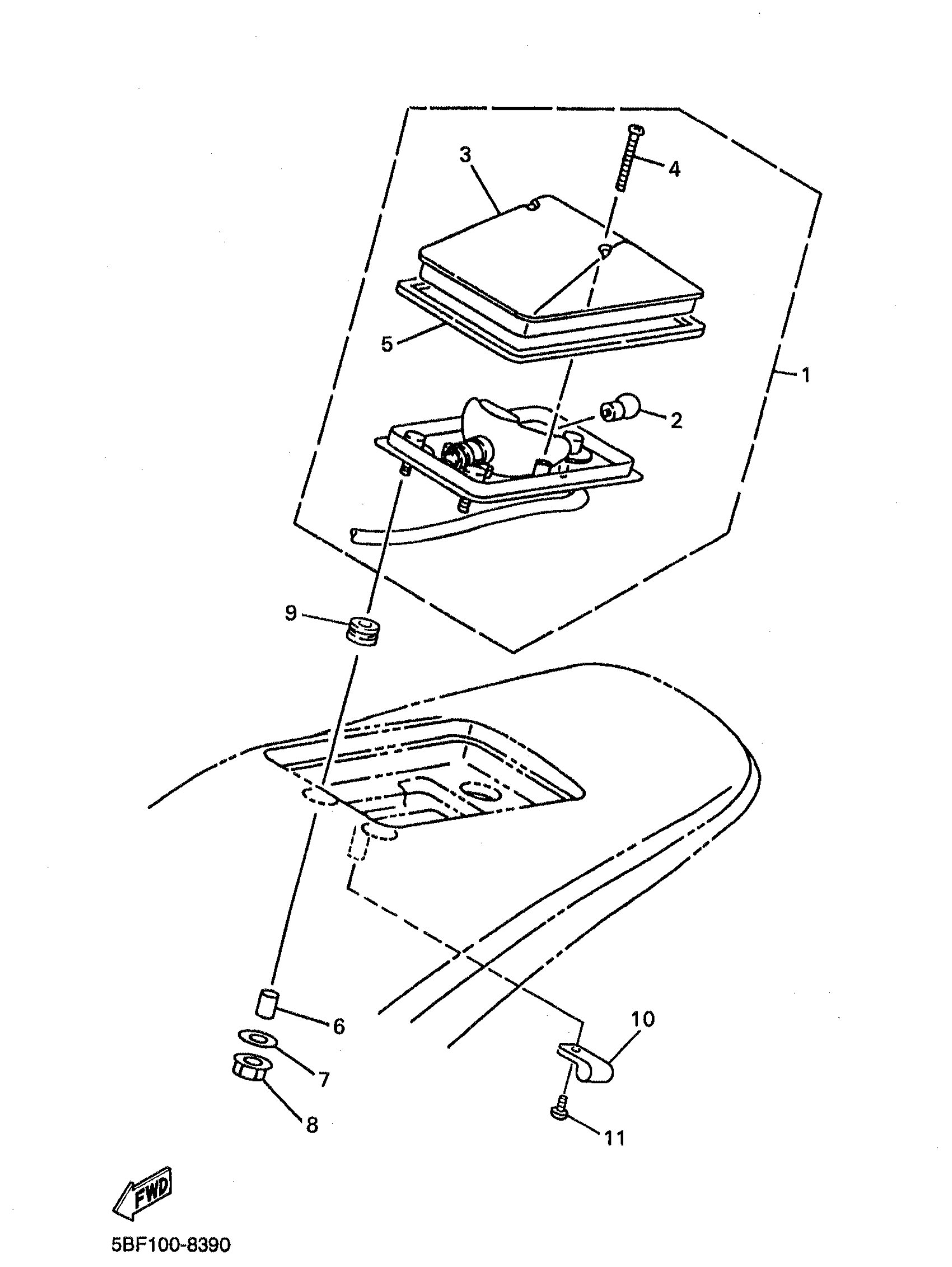

Yamaha WR400FK (WR400F) 1998 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

5BF-84710-00-00

Unavailable

2

BULB

1A2-84714-50-00

$11.36

3

LENS, TAILLIGHT

4GY-84733-00-00

$25.29

4

SCREW, TAPPING(3AH)

97707-40630-00

$6.22

5

GASKET, TAIL LENS

4GY-84723-00-00

$10.50

6

COLLAR

90387-06144-00

$4.93

7

WASHER, PLATE 8221447500

90201-06057-00

$3.52

8

NUT, FLANGE(4MV)

95707-06500-00

$0.73

9

GROMMET 839774310000

90480-14023-00

$4.34

10

CLAMP(74L)

90461-11099-00

$1.92

11

. SCREW, TAPPING

97780-40010-00

$0.50
