1998 Yamaha WR400F (WR400FK) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1998 Yamaha WR400F (WR400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

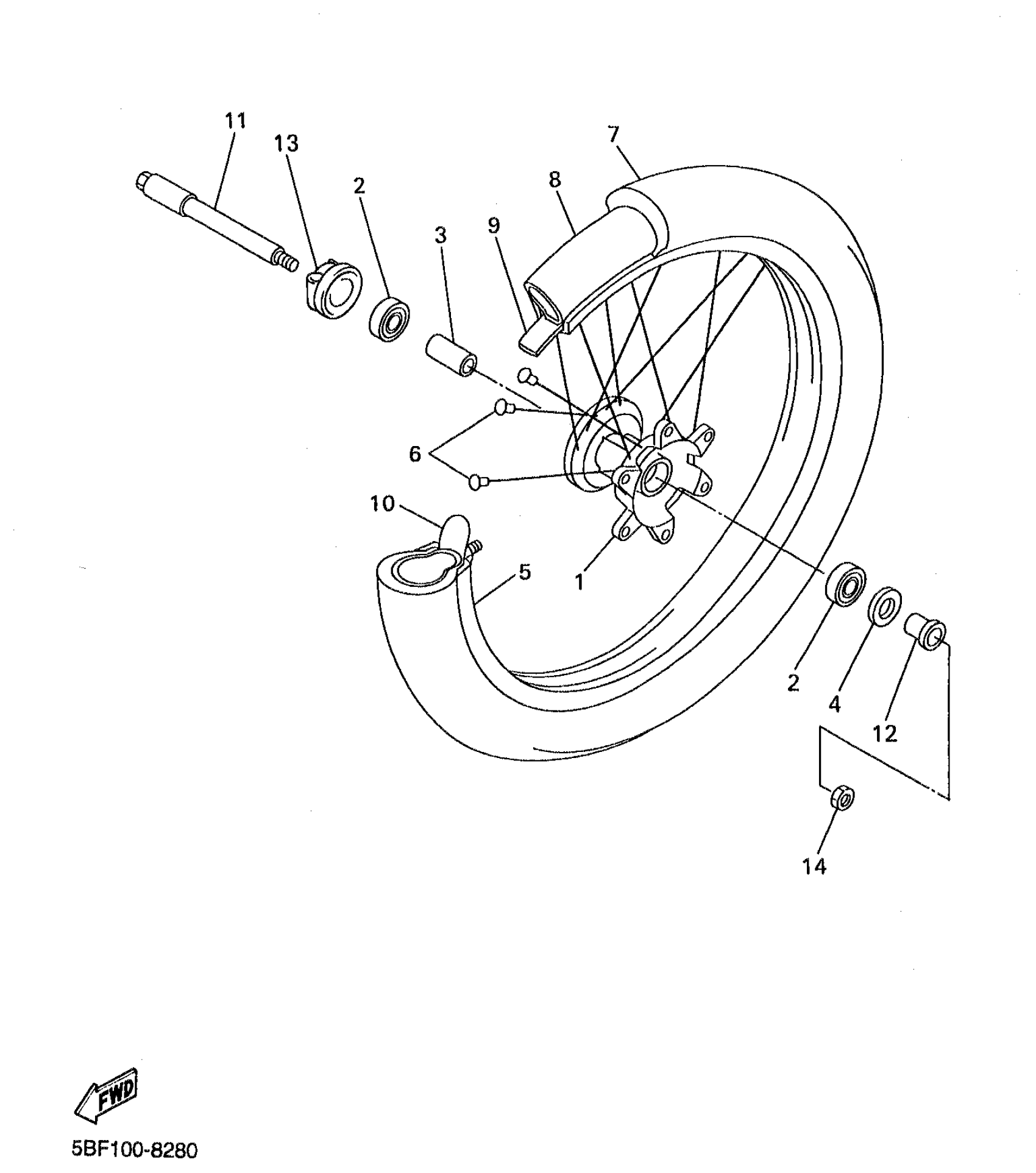

1998 Yamaha WR400F (WR400FK) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

5BF-25111-01-00

1
Out of stock

2

BEARING(2JN)

93306-90403-00

1

$38.65

In stock

3

SPACER, BEARING

5DH-25117-00-00

1
Out of stock

4

OIL SEAL

93102-26468-00

1

$18.32

In stock

5

RIM (1.60-21)

94416-21509-00

1
Out of stock

6

SPOKE SET, FRONT

4DA-25104-00-00

1
Out of stock

7

TIRE

94108-21012-00

1

$206.83

In stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

SPACER, BEAD

5X2-25394-00-00

1

$42.62

In stock

11

AXLE, WHEEL

5BE-25181-00-00

1
Out of stock

12

COLLAR, WHEEL

5DH-25183-00-00

1
Out of stock

13

GERA UNIT ASSY

5BF-25190-01-00

1
Out of stock

14

NUT(4SR)

90179-16672-00

1
Out of stock
