1998 Yamaha WR400F (WR400FK) Frame Diagram

← All diagrams

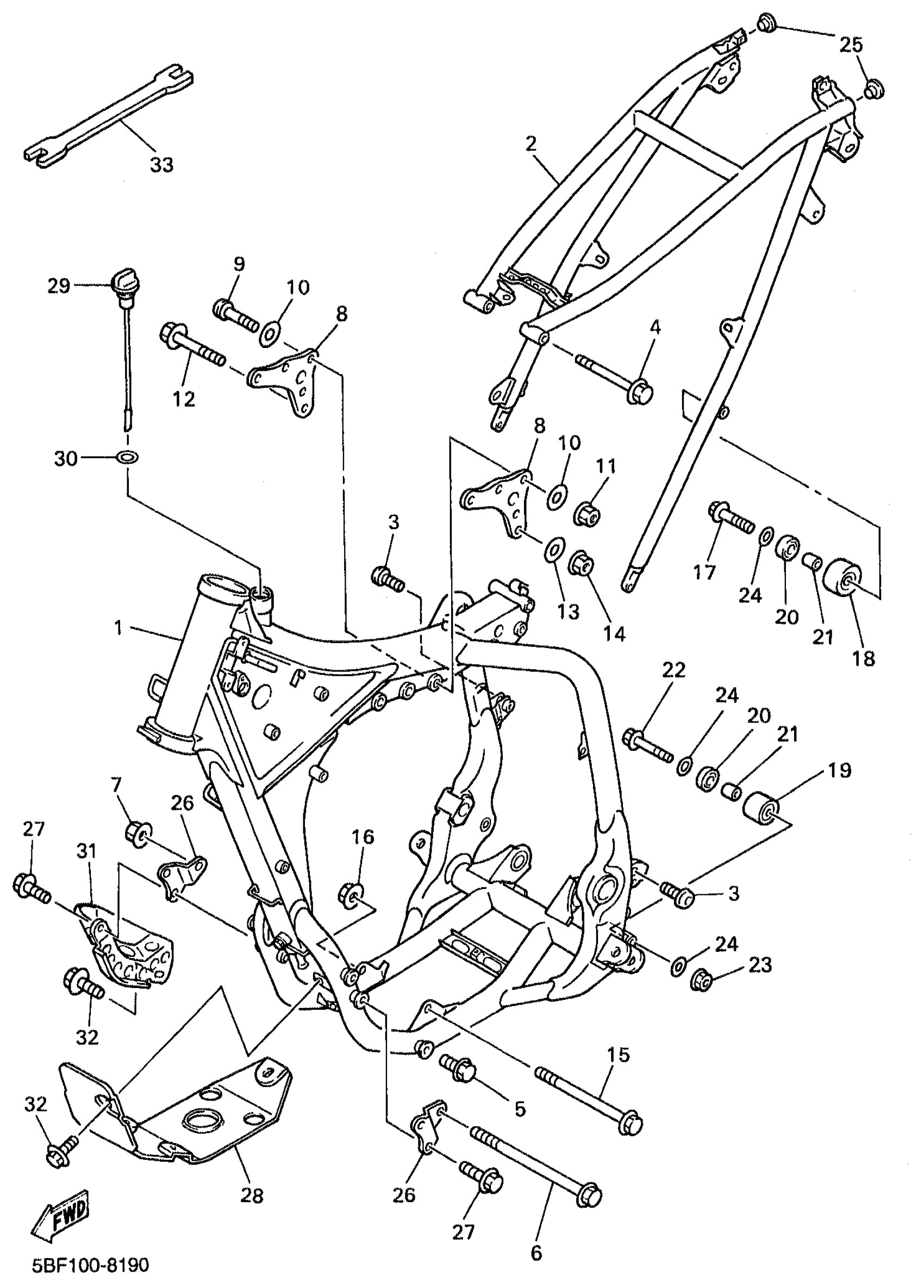

Find the part on the Frame diagram for your 1998 Yamaha WR400F (WR400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha WR400F (WR400FK) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5BF-21101-00-P0

1
Out of stock

2

REAR FRAME COMP.

5BF-21190-00-P0

1
Out of stock

3

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

4

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

5

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

6

BOLT, FLANGE

95817-10160-00

1
Out of stock

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

8

BRACKET, REAR UPPER 1

5BE-21425-01-00

1
Out of stock

9

BOLT, BUTTON HEAD

92017-08055-00

1
Out of stock

10

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

11

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

12

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

13

WASHER, PLAIN(3BM)

92907-10200-00

1
Out of stock

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

15

BOLT, WASHER BASED(3RB)

90105-10733-00

1
Out of stock

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

1

$3.32

In stock

17

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

18

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

19

TENSIONER

4EW-22178-01-00

—
Out of stock

20

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

21

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

22

BOLT, FLANGE

95027-08065-00

—
Out of stock

23

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

24

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

25

PLUG(55K)

90338-16148-00

—

$9.89

In stock

26

BRACKET, FRONT LOWER 1

5BE-21417-00-00

1
Out of stock

27

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

28

PROTECTOR, ENGINE

5BE-21471-00-00

1
Out of stock

29

PLUG, OIL LEVEL

5BE-15362-00-00

1
Out of stock

30

O-RING (646)

93210-19123-00

—

$6.91

In stock

31

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

32

BOLT, SMALL FLANGE

95027-08012-00

—

$6.89

In stock

33

WRENCH, HEXAGON

56A-28166-00-00

1
Out of stock
