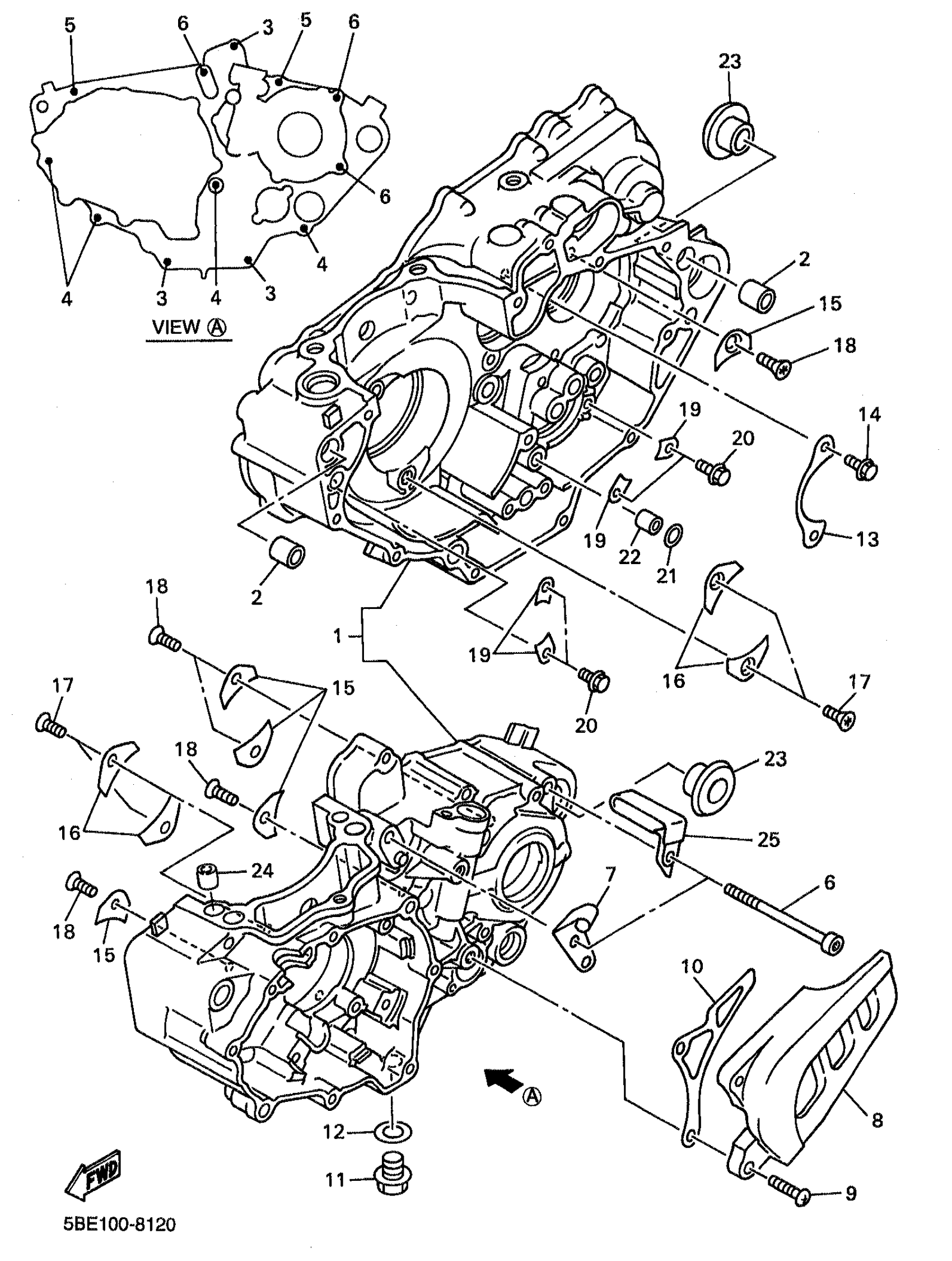

Find the part on the Crankcase diagram for your 1998 Yamaha WR400F (WR400FK), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha WR400F (WR400FK) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5BE-15100-03-YX

1
Out of stock

2

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

3

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

4

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

5

BOLT,SOCKET

91317-06060-00

1
Out of stock

6

BOLT, SOCKET

91317-06075-00

1
Out of stock

7

HOLDER, CLUTCH CABLE

5BE-15441-00-00

1
Out of stock

8

COVER, CRANKCASE 2

5BE-15421-20-00

1
Out of stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

GUIDE, CHAIN

5BE-17466-10-00

1
Out of stock

11

PLUG, STRAIGHT SCREW

90340-12006-00

1

$3.51

In stock

12

GASKET(3FD)

90430-12213-00

1

$5.09

In stock

13

PLATE, COVER

4L0-17471-00-00

1

$18.21

In stock

14

BOLT, FLANGE(4MY)

95027-06012-00

1

$3.28

In stock

15

PLATE, BEARING COVER

4JT-15381-01-00

1
Out of stock

16

PLATE, BEARING COVER

5BE-15383-01-00

—

$9.09

In stock

17

SCREW, FLATHEAD (2H7)

90149-06126-00

—
Out of stock

18

SCREW, COUNTERSUNK

90151-06052-00

—

$6.38

In stock

19

PLATE, STOPPER 2

5DH-18562-00-00

—

$6.72

In stock

20

BOLT, FLANGE(4MY)

95027-06012-00

1

$3.28

In stock

21

O-RING (371)

93210-10197-00

—
Out of stock

22

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

23

COLLAR

90387-1712Y-00

1
Out of stock

24

PIN, DOWEL(2VG)

99530-10116-00

—

$3.37

In stock

25

CLAMP(4NX)

90461-10136-00

—

$20.14

In stock
