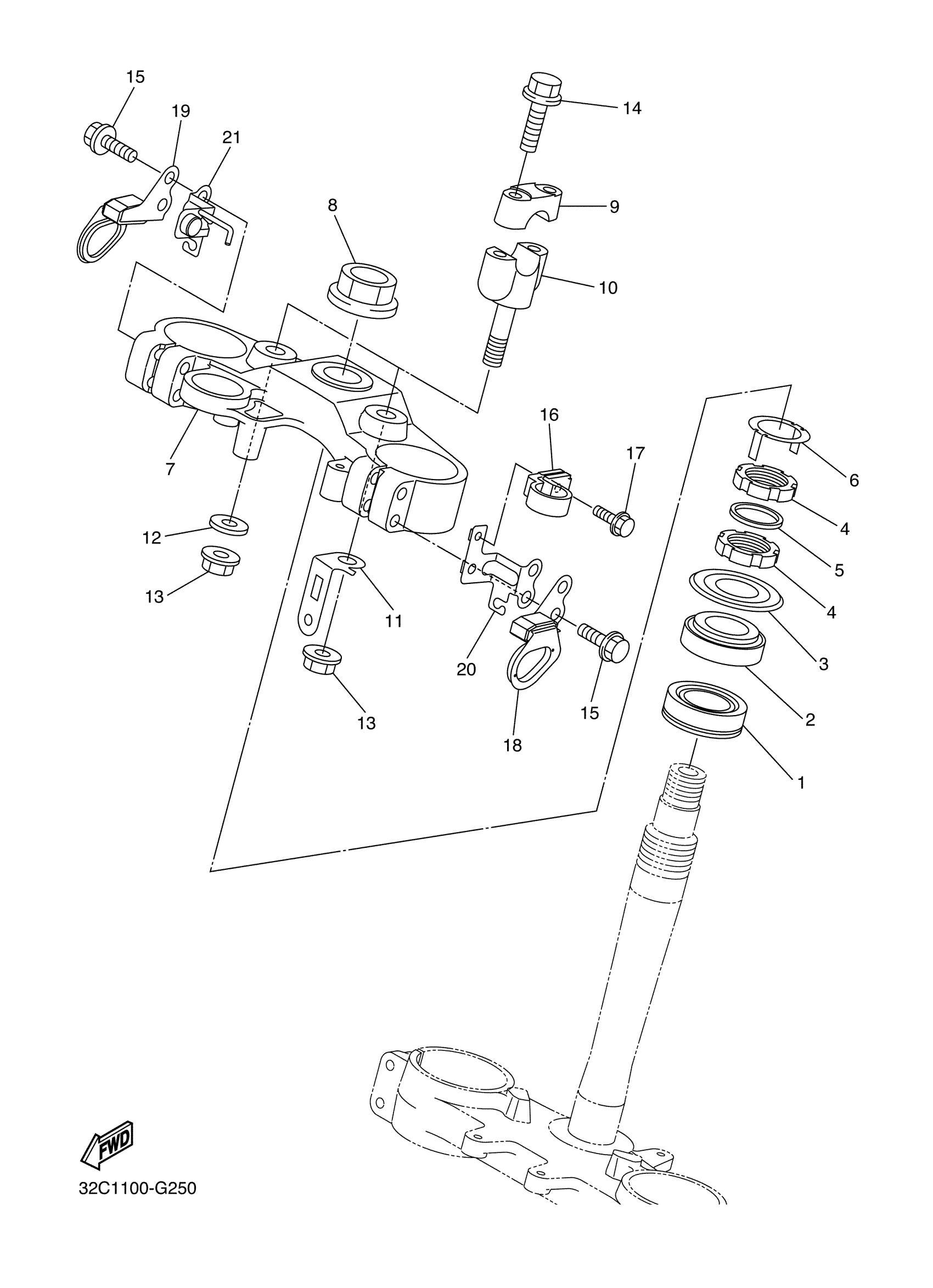

Yamaha WR25RXL (WR250R) 32C1 2008 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$47.41

2

BEARING(4EW)

93332-00078-00

$58.70

3

COVER, BALL RACE 2

4EW-23416-00-00

$27.46

4

NUT(4JX)

90179-28650-00

Unavailable

5

WASHER, PLATE(4GY)

90202-28216-00

$4.05

6

WASHER, SPECIAL

4GY-23418-00-00

Unavailable

7

CROWN, HANDLE

3D7-23435-01-00

Unavailable

8

NUT(2HG)

90179-24542-00

$16.94

9

HOLDER, HANDLE UPPER

1E6-23441-10-P1

$21.08

10

HOLDER, HANDLE LOWER

3D7-23442-00-00

$43.15

11

STAY

3D7-2317E-00-00

Unavailable

12

WASHER, PLATE

90201-12027-00

$5.80

13

NUT, SELF-LOCKING

95602-12200-00

$3.56

14

BOLT, FLANGE

90105-08154-00

$5.39

15

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

16

GUIDE, CABLE

5VK-23389-00-00

Unavailable

17

BOLT, FLANGE

90105-05016-00

Unavailable

18

STAY, FLASHER 1

32C-83368-01-00

Unavailable

19

STAY, FLASHER 2

32C-83369-01-00

Unavailable

20

STAY, HEADLIGHT 1

32D-84318-00-00

Unavailable

21

STAY, HEADLIGHT 2

32D-84319-00-00

Unavailable
