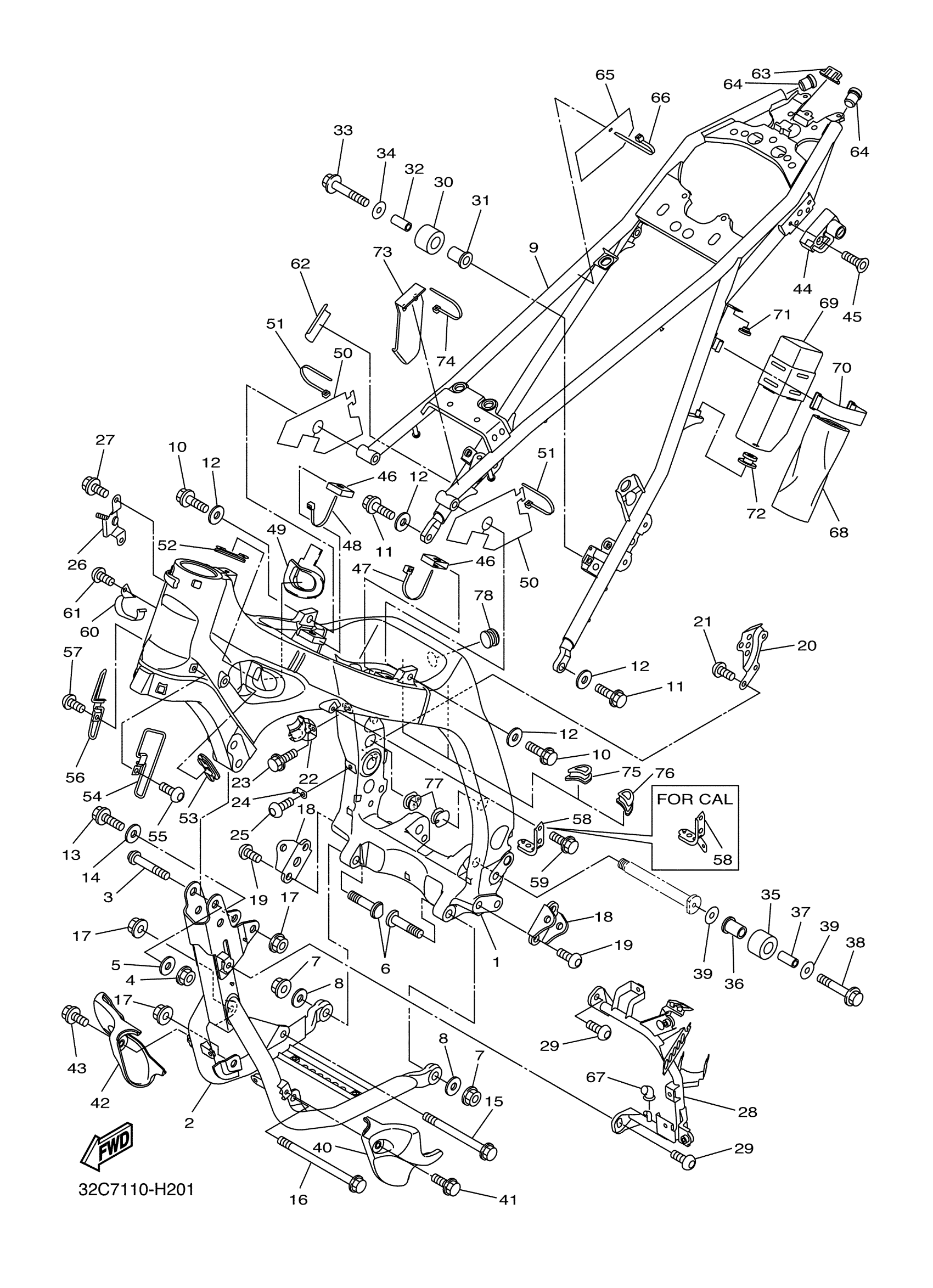

2018 Yamaha WR250R CA (WR25RJC) Frame Diagram
Find the part on the Frame diagram for your 2018 Yamaha WR250R CA (WR25RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
3D7-21110-11-00
2
DOWNTUBE COMP.
3D7-21280-10-00
3
BOLT
90111-12001-00
4
NUT(3EF)
90179-12657-00
5
WASHER, PLATE
90201-12044-00
6
BOLT, ENGINE MOUNTING 1
3D7-21481-00-00
7
NUT(3EF)
90179-12657-00
8
WASHER, PLATE
90201-12044-00
9
REAR FRAME COMP.
32C-21190-10-00
10
BOLT, FLANGE
90105-10252-00
11
BOLT, FLANGE
90105-10245-00
12
WASHER, PLATE
90201-10057-00
13
BOLT, WASHER BASED
90105-10012-00
14
WASHER, PLATE
90201-11015-00
15
BOLT, FLANGE
90105-10226-00
16
BOLT, FLANGE
90105-10228-00
17
NUT(4KG)
90179-10658-00
18
BRACKET, FOOTREST
3D7-21447-00-00
19
SCREW
90149-10033-00
20
BRACKET, MASTER CYLINDER
3D7-2133F-00-00
21
BOLT, BUTTON HEAD
92012-08014-00
22
BRACKET, STOP SWITCH
3D7-21441-00-00
23
BOLT, FLANGE
95022-06010-00
24
BOLT, FLANGE
3D7-21451-00-00
25
BOLT, BUTTON HEAD
92012-06010-00
26
BRACKET, RADIATOR
3D7-2142K-00-00
27
BOLT, FLANGE
95022-06012-00
28
STAY, SIDE COVER 1
3D7-21321-00-00
29
BOLT, BUTTON
92017-08014-00
30
TENSIONER
3TB-22178-00-00
31
BUSH
10V-22184-00-00
32
COLLAR
90387-08024-00
33
BOLT, FLANGE(4KG)
95024-08040-00
34
WASHER, PLATE
90201-08045-00
35
TENSIONER
30X-22178-00-00
36
BUSH
10V-22184-00-00
37
COLLAR
90387-08024-00
38
BOLT, FLANGE(4KG)
95024-08040-00
39
WASHER, PLATE
90201-08045-00
40
GUARD, ENGINE 1
3D7-2147A-00-00
41
BOLT, WITH WASHER(4ES)
90119-06217-00
42
GUARD, ENGINE 2
3D7-2147E-00-00
43
BOLT, WITH WASHER(4ES)
90119-06217-00
44
HELMET HANGER ASSY
4R8-21308-01-00
45
SCREW, COUNTERSUNK
90151-06068-00
46
DAMPER
3D7-2139X-00-00
47
BAND
3MA-82591-00-00
48
CLAMP
90464-16061-00
49
COVER
3D7-2117F-00-00
50
COVER 2
3D7-2117M-00-00
51
CLAMP
90465-10098-00
52
COVER 3
3D7-2117N-00-00
53
COVER 4
3D7-2117R-00-00
54
GUIDE, CABLE
3D7-21288-00-00
55
BOLT, BUTTON HEAD
92017-06010-00
56
GUIDE, WIRE
3D7-21339-00-00
57
BOLT, BUTTON HEAD
92017-06010-00
58
HOLDER, CABLE
3D7-21161-00-00
59
BOLT, FLANGE(4MY)
95027-06010-00
60
HOLDER, CLUTCH CABLE
3D7-21162-00-00
61
BOLT, BUTTON HEAD
92017-06010-00
62
LABEL, BRAKE FLUID
5XT-25839-10-00
63
DAMPER, SIDE COVER
2N4-21717-00-00
64
PLUG(55K)
90338-16148-00
65
COVER, REAR FENDER 1
3D7-2163A-00-00
66
CLAMP
90464-16061-00
67
GROMMET
3D7-21773-00-00
68
TOOL KIT
3D7-28100-01-00
69
TOOL BOX COMP.
4GY-21107-10-00
70
BAND,BATTERY
7H3-82131-00-00
71
PLUG (10V)
90338-09130-00
72
GROMMET
90480-10017-00
73
COVER
3D7-8252U-00-00
74
CLAMP
90464-16061-00
75
COVER 5
3D7-2117T-00-00
76
COVER 6
3D7-2117U-00-00
77
COVER 8
3D7-2117W-00-00
78
PLUG
90338-15004-00
