2016 Yamaha WR25R CA (WR25RGC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2016 Yamaha WR25R CA (WR25RGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

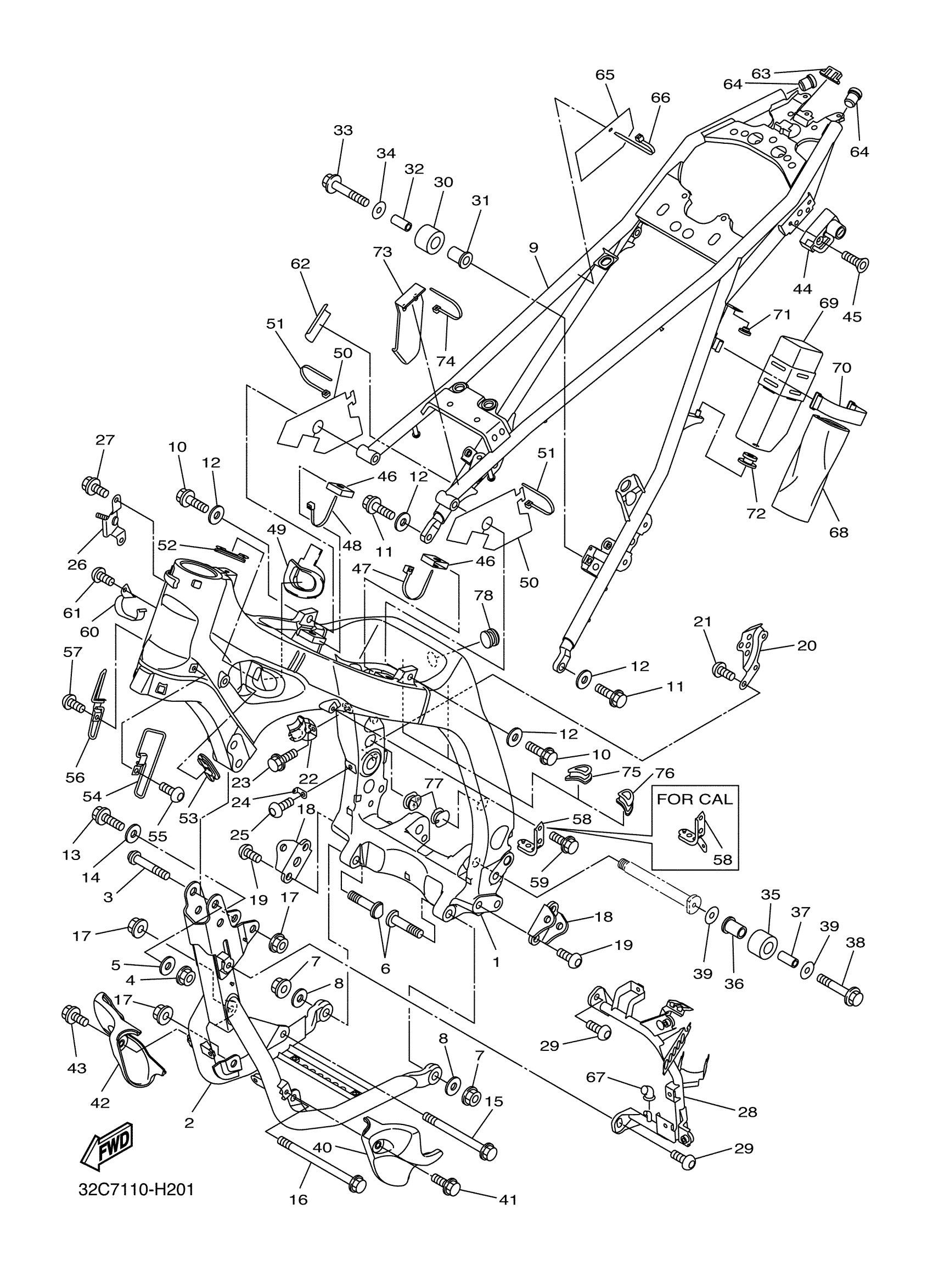

2016 Yamaha WR25R CA (WR25RGC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

3D7-21110-11-00

1
Out of stock

2

DOWNTUBE COMP.

3D7-21280-10-00

—
Out of stock

3

BOLT

90111-12001-00

—
Out of stock

4

NUT(3EF)

90179-12657-00

1
Out of stock

5

WASHER, PLATE

90201-12044-00

1
Out of stock

6

BOLT, ENGINE MOUNTING 1

3D7-21481-00-00

—
Out of stock

7

NUT(3EF)

90179-12657-00

1
Out of stock

8

WASHER, PLATE

90201-12044-00

1
Out of stock

9

REAR FRAME COMP.

32C-21190-10-00

—
Out of stock

10

BOLT, FLANGE

90105-10252-00

1
Out of stock

11

BOLT, FLANGE

90105-10245-00

1
Out of stock

12

WASHER, PLATE

90201-10057-00

1
Out of stock

13

BOLT, WASHER BASED

90105-10012-00

1
Out of stock

14

WASHER, PLATE

90201-11015-00

—
Out of stock

15

BOLT, FLANGE

90105-10226-00

—
Out of stock

16

BOLT, FLANGE

90105-10228-00

—
Out of stock

17

NUT(4KG)

90179-10658-00

—
Out of stock

18

BRACKET, FOOTREST

3D7-21447-00-00

—
Out of stock

19

SCREW

90149-10033-00

—
Out of stock

20

BRACKET, MASTER CYLINDER

3D7-2133F-00-00

—
Out of stock

21

BOLT, BUTTON HEAD

92012-08014-00

—
Out of stock

22

BRACKET, STOP SWITCH

3D7-21441-00-00

—
Out of stock

23

BOLT, FLANGE

95022-06010-00

—
Out of stock

24

BOLT, FLANGE

3D7-21451-00-00

—
Out of stock

25

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

26

BRACKET, RADIATOR

3D7-2142K-00-00

—
Out of stock

27

BOLT, FLANGE

95022-06012-00

—
Out of stock

28

STAY, SIDE COVER 1

3D7-21321-00-00

—
Out of stock

29

BOLT, BUTTON

92017-08014-00

—
Out of stock

30

TENSIONER

3TB-22178-00-00

—
Out of stock

31

BUSH

10V-22184-00-00

—
Out of stock

32

COLLAR

90387-08024-00

—
Out of stock

33

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

34

WASHER, PLATE

90201-08045-00

—
Out of stock

35

TENSIONER

30X-22178-00-00

—
Out of stock

36

BUSH

10V-22184-00-00

—
Out of stock

37

COLLAR

90387-08024-00

—
Out of stock

38

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

39

WASHER, PLATE

90201-08045-00

—
Out of stock

40

GUARD, ENGINE 1

3D7-2147A-00-00

—
Out of stock

41

BOLT, WITH WASHER(4ES)

90119-06217-00

—
Out of stock

42

GUARD, ENGINE 2

3D7-2147E-00-00

—
Out of stock

43

BOLT, WITH WASHER(4ES)

90119-06217-00

—
Out of stock

44

HELMET HANGER ASSY

4R8-21308-01-00

—
Out of stock

45

SCREW, COUNTERSUNK

90151-06068-00

—
Out of stock

46

DAMPER

3D7-2139X-00-00

—
Out of stock

47

BAND

3MA-82591-00-00

—
Out of stock

48

CLAMP

90464-16061-00

—
Out of stock

49

COVER

3D7-2117F-00-00

—
Out of stock

50

COVER 2

3D7-2117M-00-00

—
Out of stock

51

CLAMP

90465-10098-00

1
Out of stock

52

COVER 3

3D7-2117N-00-00

—
Out of stock

53

COVER 4

3D7-2117R-00-00

—
Out of stock

54

GUIDE, CABLE

3D7-21288-00-00

—
Out of stock

55

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

56

GUIDE, WIRE

3D7-21339-00-00

—
Out of stock

57

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

58

HOLDER, CABLE

3D7-21161-00-00

—
Out of stock

59

BOLT, FLANGE(4MY)

95027-06010-00

—
Out of stock

60

HOLDER, CLUTCH CABLE

3D7-21162-00-00

—
Out of stock

61

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

62

LABEL, BRAKE FLUID

5XT-25839-10-00

—
Out of stock

63

DAMPER, SIDE COVER

2N4-21717-00-00

—
Out of stock

64

PLUG(55K)

90338-16148-00

—
Out of stock

65

COVER, REAR FENDER 1

3D7-2163A-00-00

1
Out of stock

66

CLAMP

90464-16061-00

—
Out of stock

67

GROMMET

3D7-21773-00-00

—
Out of stock

68

TOOL KIT

3D7-28100-01-00

—
Out of stock

69

TOOL BOX COMP.

4GY-21107-10-00

—
Out of stock

70

BAND,BATTERY

7H3-82131-00-00

—
Out of stock

71

PLUG (10V)

90338-09130-00

—
Out of stock

72

GROMMET

90480-10017-00

—
Out of stock

73

COVER

3D7-8252U-00-00

—
Out of stock

74

CLAMP

90464-16061-00

—
Out of stock

75

COVER 5

3D7-2117T-00-00

—
Out of stock

76

COVER 6

3D7-2117U-00-00

—
Out of stock

77

COVER 8

3D7-2117W-00-00

—
Out of stock

78

PLUG

90338-15004-00

—
Out of stock
