2014 Yamaha WR25R CA (WR25REC) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2014 Yamaha WR25R CA (WR25REC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

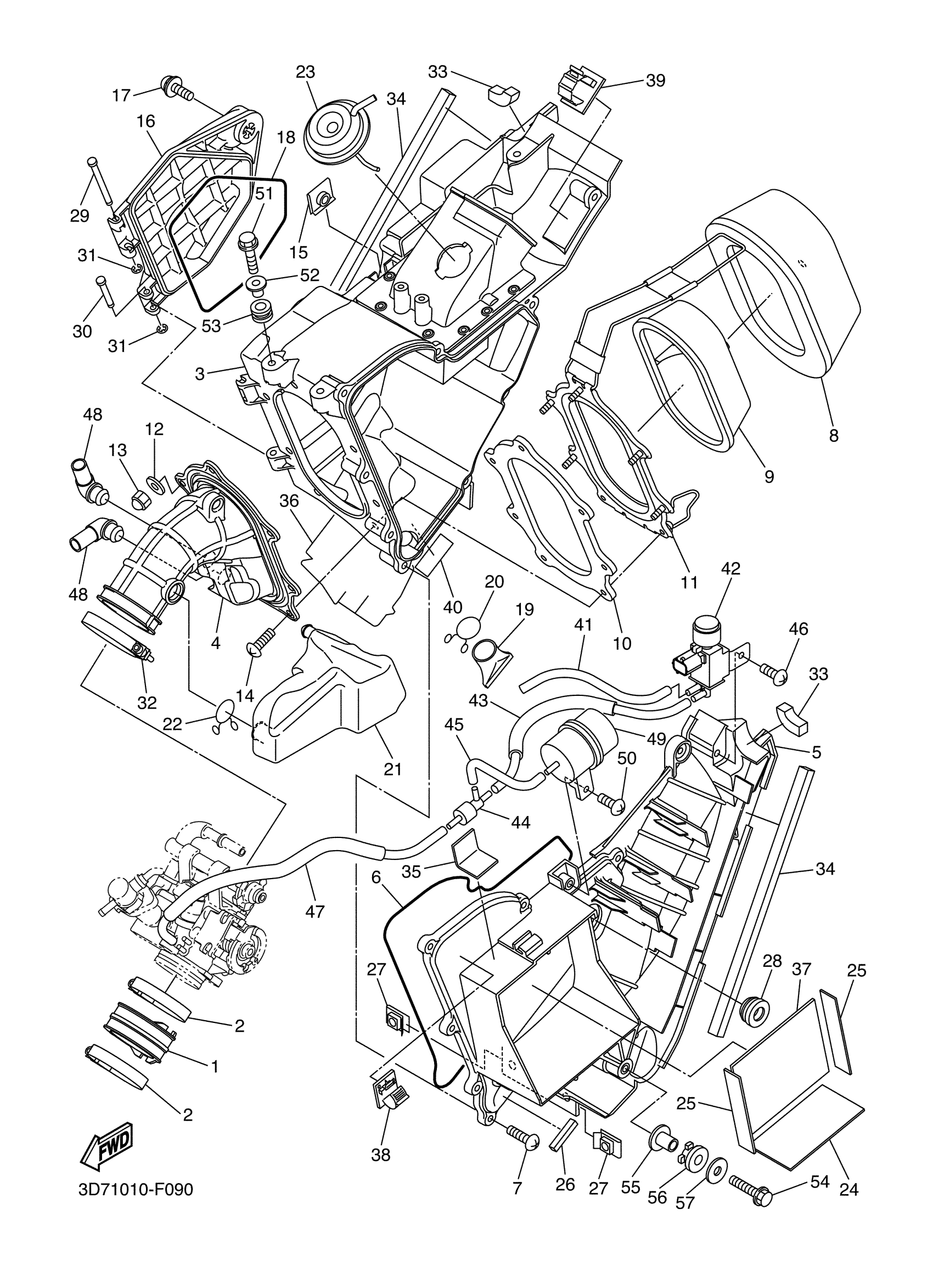

2014 Yamaha WR25R CA (WR25REC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

3D7-13586-10-00

—
Out of stock

2

HOSE CLAMP ASSY

90450-54006-00

1
Out of stock

3

AIR CLEANER CASE COMP.

3D7-W1441-00-00

—
Out of stock

4

JOINT, AIR CLEANER 1

3D7-14453-01-00

—
Out of stock

5

CAP, CLEANER CASE 1

3D7-14412-00-00

—
Out of stock

6

SEAL

51Y-14462-00-00

1
Out of stock

7

SCREW, TRUSS TAP.

97707-50025-00

1
Out of stock

8

ELEMENT, AIR CLEANER

1LN-14451-01-00

1
Out of stock

9

GUIDE

4GY-14458-00-00

1
Out of stock

10

SEAL

1LN-14462-00-00

—
Out of stock

11

HOLDER, GUIDE

3D7-14459-00-00

1
Out of stock

12

WASHER, PLATE

90201-05040-00

1
Out of stock

13

NUT, CROWN

90176-05005-00

1
Out of stock

14

SCREW, BINDING

90154-05021-00

1
Out of stock

15

NUT, SPRING

90183-061A0-00

—
Out of stock

16

COVER, CLEANER CASE 1

3D7-1441A-00-00

—
Out of stock

17

SCREW, WITH WASHER

90159-06039-00

—
Out of stock

18

SEAL

3D7-14462-00-00

—
Out of stock

19

SEAL

59V-14457-00-00

—
Out of stock

20

CLIP

90467-220A1-00

—
Out of stock

21

CHAMBER, AIR

3D7-13581-00-00

—
Out of stock

22

CLIP

90467-180A1-00

—
Out of stock

23

DIAPHRAGM

3D7-14545-00-00

—
Out of stock

24

DAMPER, PLATE 1

5EJ-2414H-00-00

—
Out of stock

25

DAMPER 2

5TJ-14426-00-00

—
Out of stock

26

DAMPER 1

5PS-28217-00-00

—
Out of stock

27

NUT, SPRING

90183-060A7-00

—
Out of stock

28

GROMMET

5CA-14435-00-00

—
Out of stock

29

PIN

90249-05005-00

—
Out of stock

30

PIN,SPEC'L SHAPE

90249-05006-00

—
Out of stock

31

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

32

HOSE CLAMP ASSY

90450-54009-00

—
Out of stock

33

DAMPER 2

3D7-14426-00-00

—
Out of stock

34

DAMPER 3

3D7-1442G-00-00

—
Out of stock

35

DAMPER 4

3D7-1442H-00-00

—
Out of stock

36

PROTECTOR

3D7-1442F-00-00

—
Out of stock

37

DAMPER 1

29N-14425-00-00

—
Out of stock

38

CLAMP

90464-13007-00

—
Out of stock

39

CLAMP

90464-20021-00

—
Out of stock

40

DAMPER 2

3C5-21639-00-00

—
Out of stock

41

HOSE, VACUUM SENSING 4

3D7-13533-00-00

—
Out of stock

42

SOLENOID VALVE

5PS-1410H-01-00

—
Out of stock

43

HOSE, VACUUM SENSING 2

3D7-13544-00-00

—
Out of stock

44

VALVE, CHECK

5PS-14552-01-00

—
Out of stock

45

HOSE

90445-08030-00

—
Out of stock

46

SCREW, TAPPING(4TV)

90167-05078-00

—
Out of stock

47

HOSE, VACUUM SENSING 3

3D7-13532-00-00

—
Out of stock

48

PIPE

5TJ-14419-00-00

—
Out of stock

49

TANK, SURGE

5PS-1446E-00-00

—
Out of stock

50

SCREW, TAPPING(4TV)

90167-05078-00

—
Out of stock

51

BOLT, FLANGE

95817-06020-00

—
Out of stock

52

COLLAR

90387-06199-00

—
Out of stock

53

GROMMET(4FM)

90480-12596-00

—
Out of stock

54

BOLT, FLANGE

95822-06025-00

—
Out of stock

55

COLLAR

90387-07021-00

—
Out of stock

56

GROMMET

90480-15001-00

—
Out of stock

57

WASHER, PLATE

90201-06081-00

—
Out of stock
