2014 Yamaha WR25R CA (WR25REC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2014 Yamaha WR25R CA (WR25REC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

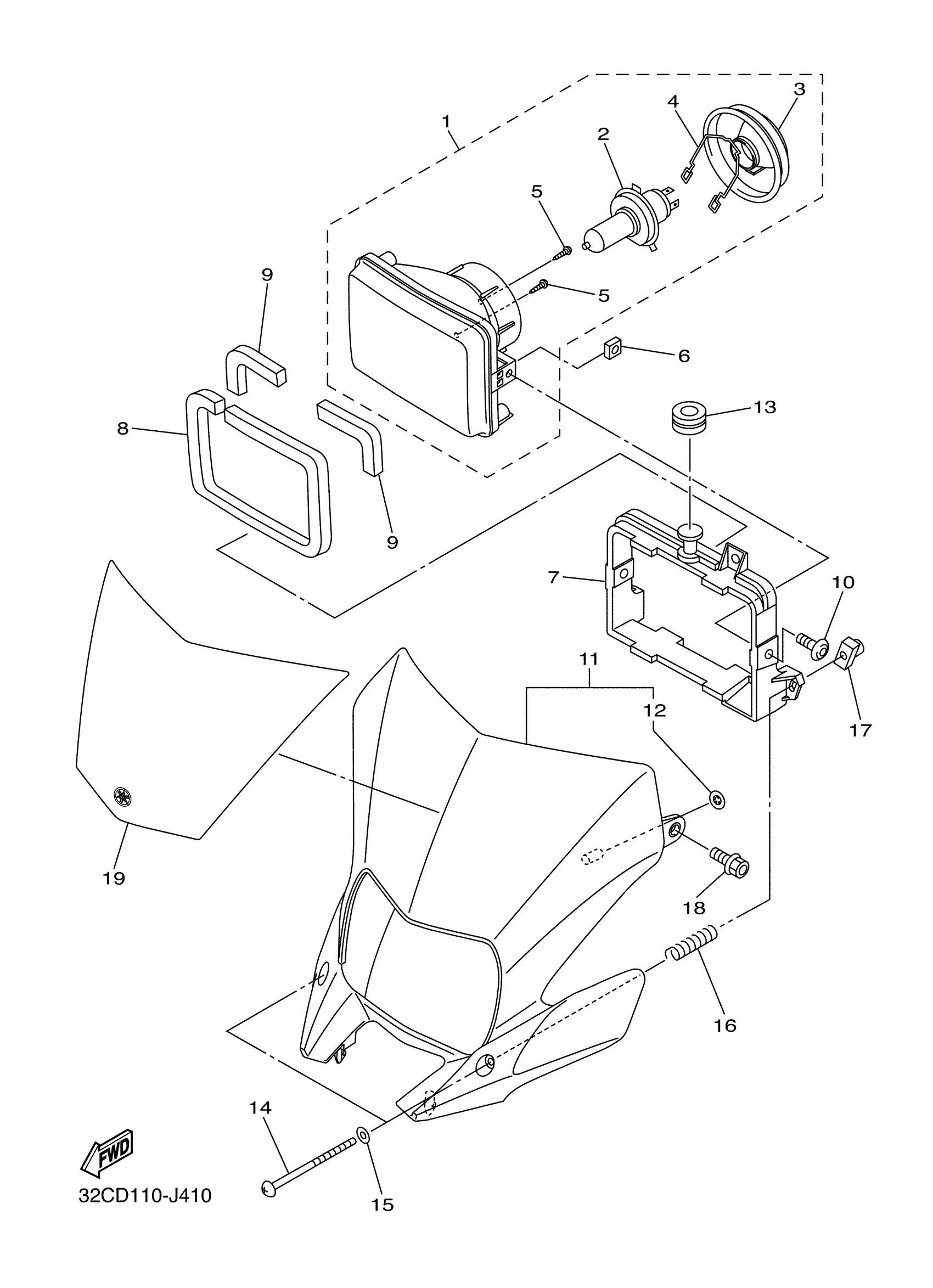

2014 Yamaha WR25R CA (WR25REC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

32C-84310-00-00

—
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

CAP

32D-84378-00-00

—
Out of stock

4

SPRING

32D-84335-00-00

—
Out of stock

5

SCREW

32D-84726-00-00

—
Out of stock

6

NUT

32D-84117-00-00

1
Out of stock

7

STAY, HEADLIGHT 1

32D-84118-00-00

1
Out of stock

8

DAMPER

32D-84527-00-00

1
Out of stock

9

DAMPER

32D-84553-00-00

1
Out of stock

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

—
Out of stock

11

BODY ASSY

32D-84330-00-00

—
Out of stock

12

NUT, SPRING(8AJ)

90183-05068-00

1
Out of stock

13

GROMMET

90480-16008-00

1
Out of stock

14

SCREW 214841316100

90157-04001-00

1
Out of stock

15

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

16

SPRING, ADJUST

341-84332-60-00

—
Out of stock

17

NUT, ADJUST

198-84334-60-00

—
Out of stock

18

BOLT, FLANGE

90105-06064-00

—
Out of stock

19

GRAPHIC

32D-8411B-00-00

—
Out of stock
