2014 Yamaha WR25R CA (WR25REC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2014 Yamaha WR25R CA (WR25REC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

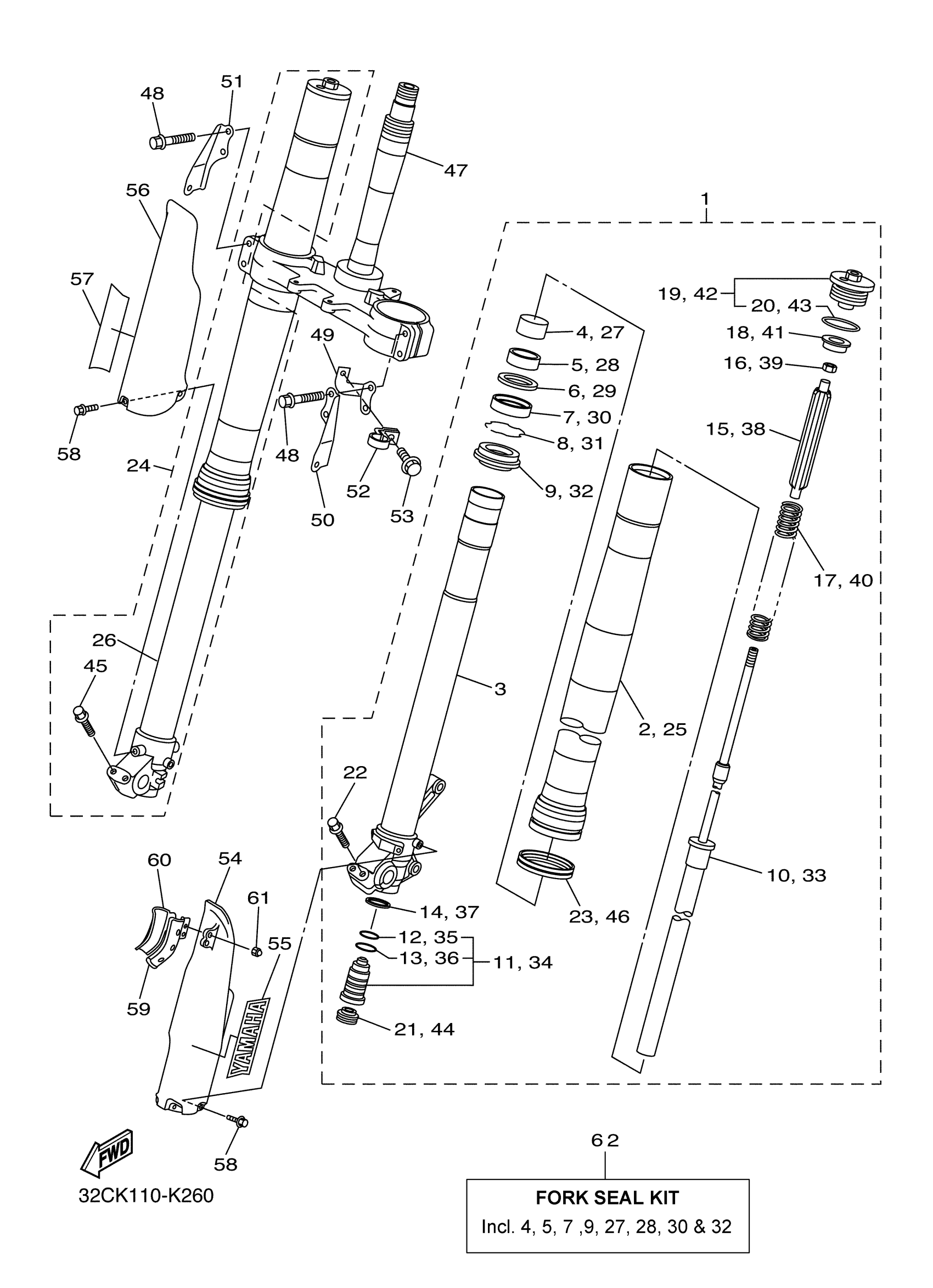

2014 Yamaha WR25R CA (WR25REC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

32D-23102-50-00

1
Out of stock

2

OUTER TUBE COMP. (L.H)

3D7-23106-50-00

—
Out of stock

3

INNER TUBE COMP.1

3D7-23110-00-00

—
Out of stock

4

PISTON, FRONT FORK

5ET-23171-L0-00

1
Out of stock

5

METAL, SLIDE 1

5ET-23125-L0-00

1
Out of stock

6

WASHER, OIL SEAL

5UN-23146-L0-00

—
Out of stock

7

OIL SEAL

5UN-23145-L0-00

1
Out of stock

8

RING, SNAP

4SS-23153-L0-00

1
Out of stock

9

SEAL, DUST

5HD-23144-L0-00

1
Out of stock

10

CYLINDER COMP., FRONT FORK

32D-23170-00-00

—
Out of stock

11

VALVE COMP.

32D-2316A-00-00

1
Out of stock

12

O-RING

4DA-23147-L0-00

1
Out of stock

13

GASKET

276-23114-01-00

1
Out of stock

14

GASKET

2HH-23158-L0-00

1
Out of stock

15

GUIDE, SPRING

3D7-23117-00-00

—
Out of stock

16

NUT

3XJ-23357-L0-00

—
Out of stock

17

SPRING, FRONT FORK

32D-23141-00-00

—
Out of stock

18

SEAT, SPRING LOWER

4SS-23143-L0-00

—
Out of stock

19

BOLT, CAP

3D7-23111-00-00

—
Out of stock

20

O-RING

3D7-23147-00-00

—
Out of stock

21

PLUG

3JD-2312G-L0-00

—
Out of stock

22

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

23

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

—
Out of stock

24

FRONT FORK ASSY (R.H)

32D-23103-50-00

—
Out of stock

25

OUTER TUBE COMP. (L.H)

3D7-23106-50-00

—
Out of stock

26

INNER TUBE COMP.2

3D7-23120-00-00

—
Out of stock

27

PISTON, FRONT FORK

5ET-23171-L0-00

1
Out of stock

28

METAL, SLIDE 1

5ET-23125-L0-00

1
Out of stock

29

WASHER, OIL SEAL

5UN-23146-L0-00

—
Out of stock

30

OIL SEAL

5UN-23145-L0-00

1
Out of stock

31

RING, SNAP

4SS-23153-L0-00

1
Out of stock

32

SEAL, DUST

5HD-23144-L0-00

1
Out of stock

33

CYLINDER COMP., FRONT FORK

32D-23170-00-00

—
Out of stock

34

VALVE COMP.

32D-2316A-00-00

1
Out of stock

35

O-RING

4DA-23147-L0-00

1
Out of stock

36

GASKET

276-23114-01-00

1
Out of stock

37

GASKET

2HH-23158-L0-00

1
Out of stock

38

GUIDE, SPRING

3D7-23117-00-00

—
Out of stock

39

NUT

3XJ-23357-L0-00

—
Out of stock

40

SPRING, FRONT FORK

32D-23141-00-00

—
Out of stock

41

SEAT, SPRING LOWER

4SS-23143-L0-00

—
Out of stock

42

BOLT, CAP

3D7-23111-00-00

—
Out of stock

43

O-RING

3D7-23147-00-00

—
Out of stock

44

PLUG

3JD-2312G-L0-00

—
Out of stock

45

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

46

PROTECTER GUIDE COMP., 1

5XC-2314F-00-00

—
Out of stock

47

UNDER BRACKET COMP.

3D7-23340-00-00

—
Out of stock

48

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

49

GUIDE, CABLE

3D7-2331E-00-00

—
Out of stock

50

BRACKET, REFLECTOR 1

32D-85112-00-00

—
Out of stock

51

BRACKET, REFLECTOR 1

32D-85112-10-00

—
Out of stock

52

GUIDE, CABLE

5VK-23389-00-00

—
Out of stock

53

BOLT, FLANGE

90105-05016-00

—
Out of stock

54

PROTECTOR 1

1C3-2315H-10-00

—
Out of stock

55

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

56

PROTECTOR 2

1C3-2315J-10-00

—
Out of stock

57

EMBLEM, YAMAHA

4XL-2153A-11-00

—
Out of stock

58

BOLT 2

3SP-23356-L0-00

—
Out of stock

59

CLAMP

3D7-23466-00-00

—
Out of stock

60

CLAMP

3D7-23467-00-00

—
Out of stock

61

NUT, CROWN

90176-06014-00

—
Out of stock

62

FORK SEAL KIT (TWO FORKS)

5ET-W003B-00-00

—
Out of stock
