2013 Yamaha WR250R CA (WR25RDC) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2013 Yamaha WR250R CA (WR25RDC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

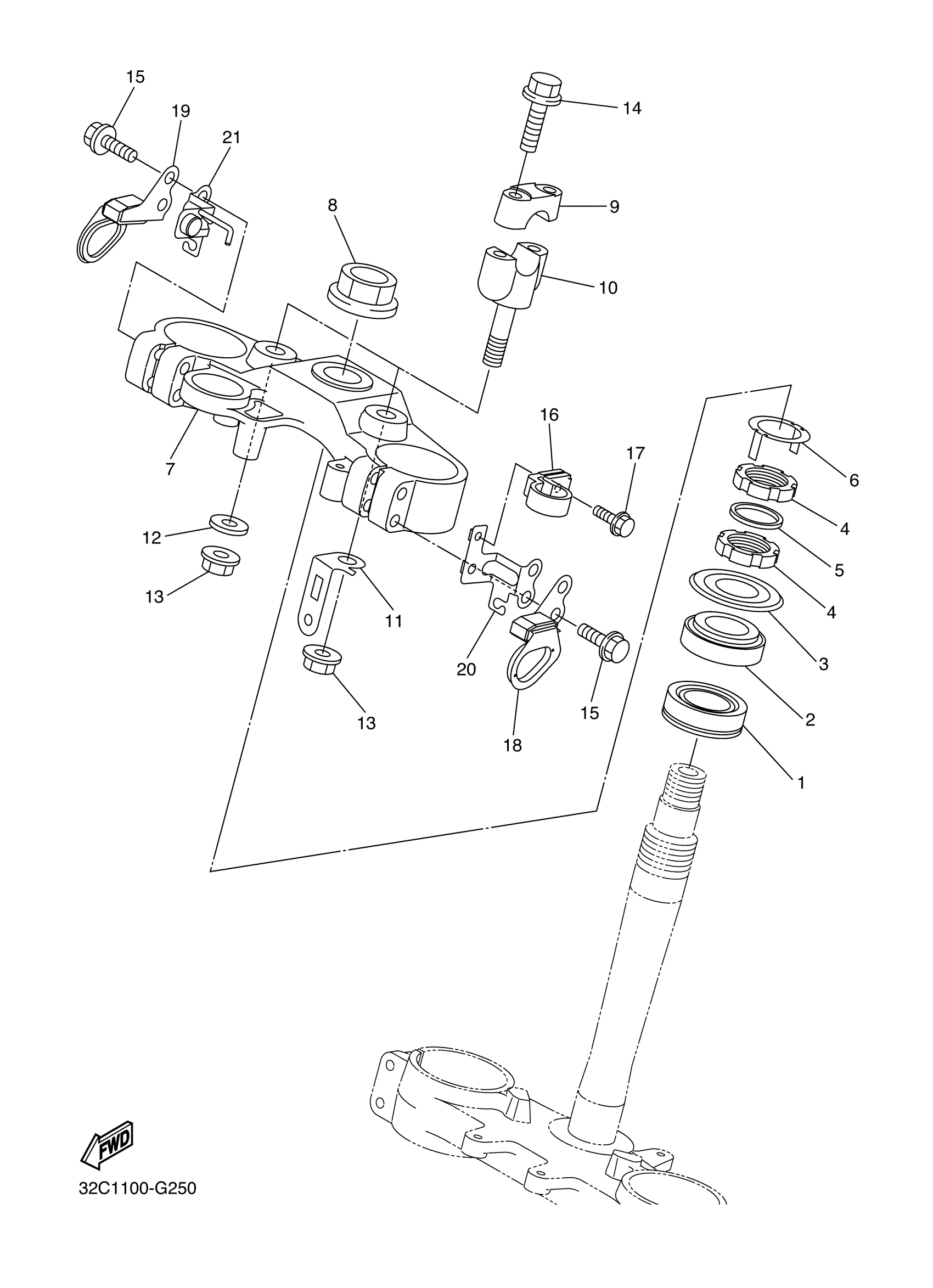

2013 Yamaha WR250R CA (WR25RDC) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4SR)

93332-00081-00

1
Out of stock

2

BEARING(4EW)

93332-00078-00

1
Out of stock

3

COVER, BALL RACE 2

4EW-23416-00-00

1
Out of stock

4

NUT(4JX)

90179-28650-00

—
Out of stock

5

WASHER, PLATE(4GY)

90202-28216-00

1
Out of stock

6

WASHER, SPECIAL

4GY-23418-00-00

—
Out of stock

7

CROWN, HANDLE

3D7-23435-01-00

—
Out of stock

8

NUT(2HG)

90179-24542-00

1
Out of stock

9

HOLDER, HANDLE UPPER

1E6-23441-10-P1

1
Out of stock

10

HOLDER, HANDLE LOWER

3D7-23442-00-00

1
Out of stock

11

STAY

3D7-2317E-00-00

—
Out of stock

12

WASHER, PLATE

90201-12027-00

1
Out of stock

13

NUT, SELF-LOCKING

95602-12200-00

1
Out of stock

14

BOLT, FLANGE

90105-08154-00

1
Out of stock

15

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

16

GUIDE, CABLE

5VK-23389-00-00

—
Out of stock

17

BOLT, FLANGE

90105-05016-00

—
Out of stock

18

STAY, FLASHER 1

32C-83368-01-00

—
Out of stock

19

STAY, FLASHER 2

32C-83369-01-00

—
Out of stock

20

STAY, HEADLIGHT 1

32D-84318-00-00

—
Out of stock

21

STAY, HEADLIGHT 2

32D-84319-00-00

—
Out of stock
