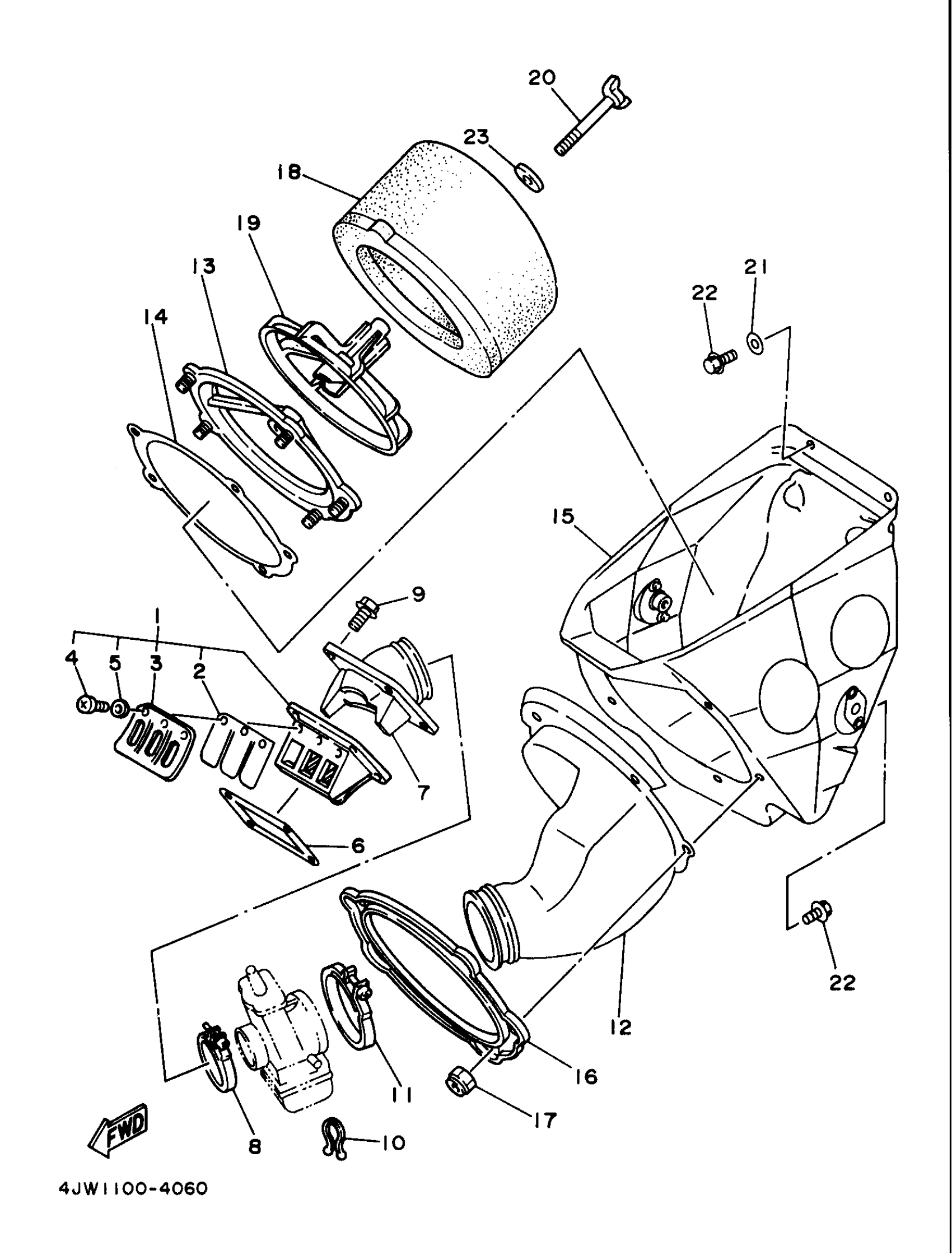

Yamaha WR250ZJ (WR250Z) 1997 INTAKE Diagram

#

Description
Price

1

REED VALVE ASY

4DC-13610-00-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$25.11

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.30

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

5

WASHER, SPRING

92990-03100-00

$5.75

6

GASKET, VALVE SEAT

2K7-13621-10-00

$13.08

7

JOINT, CARBURETOR

4DC-13565-00-00

Unavailable

8

HOSE CLAMP ASSY

90450-51001-00

$13.16

9

. BOLT, FLANGE

95027-06020-00

$0.93

10

CLAMP (3Y2)

90464-16039-00

$8.23

11

HOSE CLAMP ASSY

90450-70002-00

$16.91

12

JOINT, AIR CLEANER 1

4JW-14453-00-00

Unavailable

13

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

14

SEAL

3JD-14462-00-00

$31.44

15

CASE, AIR CLEANER 1

4JW-14411-01-00

Unavailable

16

PLATE

5MV-14477-00-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

ELEMENT, AIR CLEANER

4PE-14451-02-00

Unavailable

19

GUIDE

3JD-14458-01-00

Unavailable

20

BOLT, WING

90122-06005-00

Unavailable

21

WASHER, PLATE

90201-06020-00

Unavailable

22

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

23

WASHER (4H7)

90209-06096-00

Unavailable
