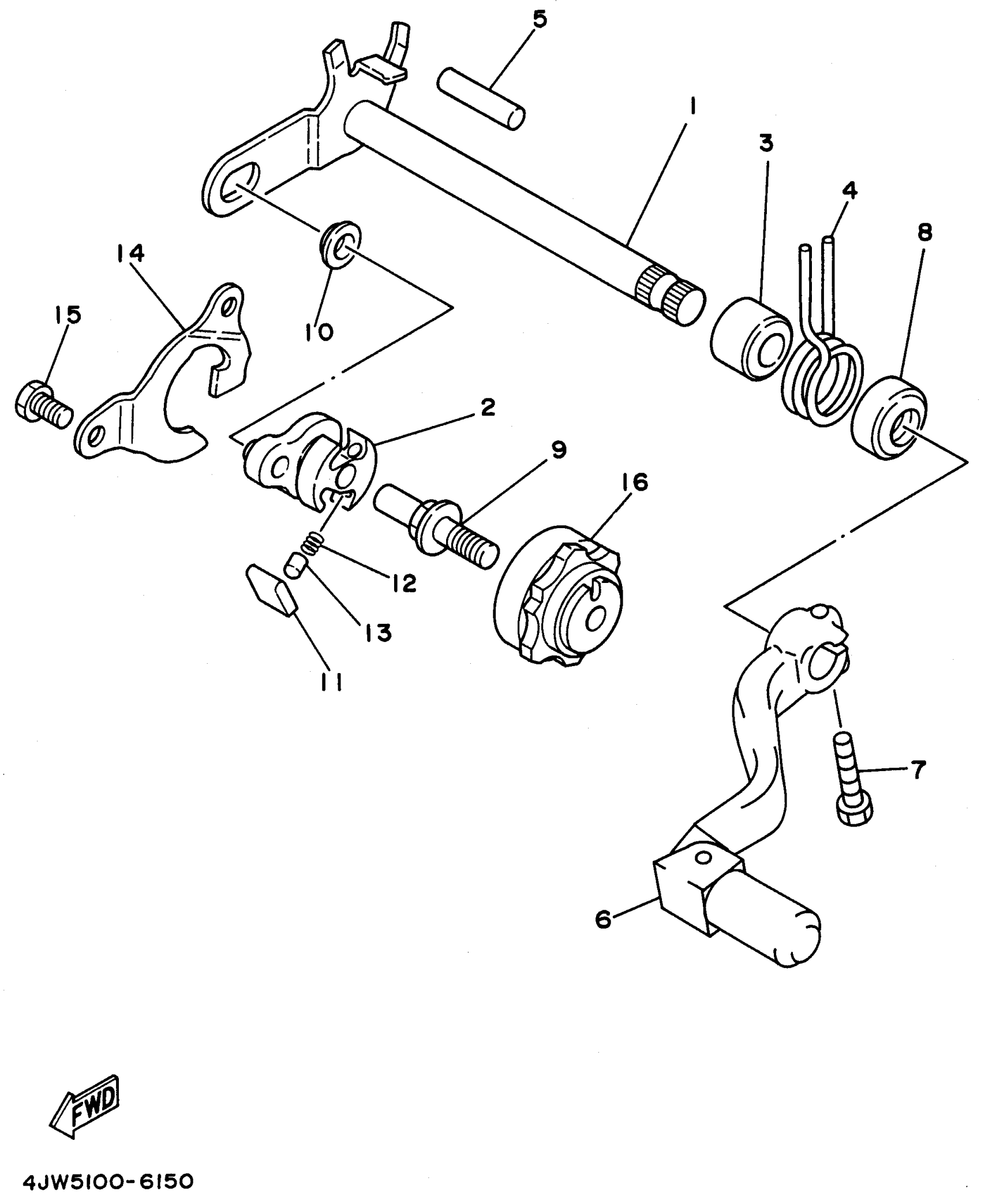

Yamaha WR250ZH (WR250Z) 1996 SHIFTER Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

3XK-18101-02-00

$99.26

2

LEVER, SHIFT 2

5LP-18122-01-00

$79.77

3

SPACER(1LX)

90560-12280-00

$10.25

4

SPRING, TORSION(4DA)

90508-291A8-00

$7.97

5

PIN, DOWEL

93608-33046-00

Unavailable

6

SHIFT PEDAL ASSY

4SS-18110-00-00

$74.63

7

BOLT, HEXAGON

97017-06025-00

$2.98

8

SEAL, OIL (30X)

93102-12321-00

$10.14

9

PIN, SHIFT

3XJ-18173-10-00

$16.43

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$10.77

11

PAWL, SHIFTER

3XJ-18182-00-00

$12.53

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$4.89

13

PIN, PAWL

3XJ-18184-00-00

$12.53

14

GUIDE, SHIFT

4DA-18172-00-00

Unavailable

15

BOLT

90101-06664-00

$2.62

16

SEGMENT

4EW-18185-00-00

Unavailable
