2006 Yamaha WR250F (WR250FV) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2006 Yamaha WR250F (WR250FV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

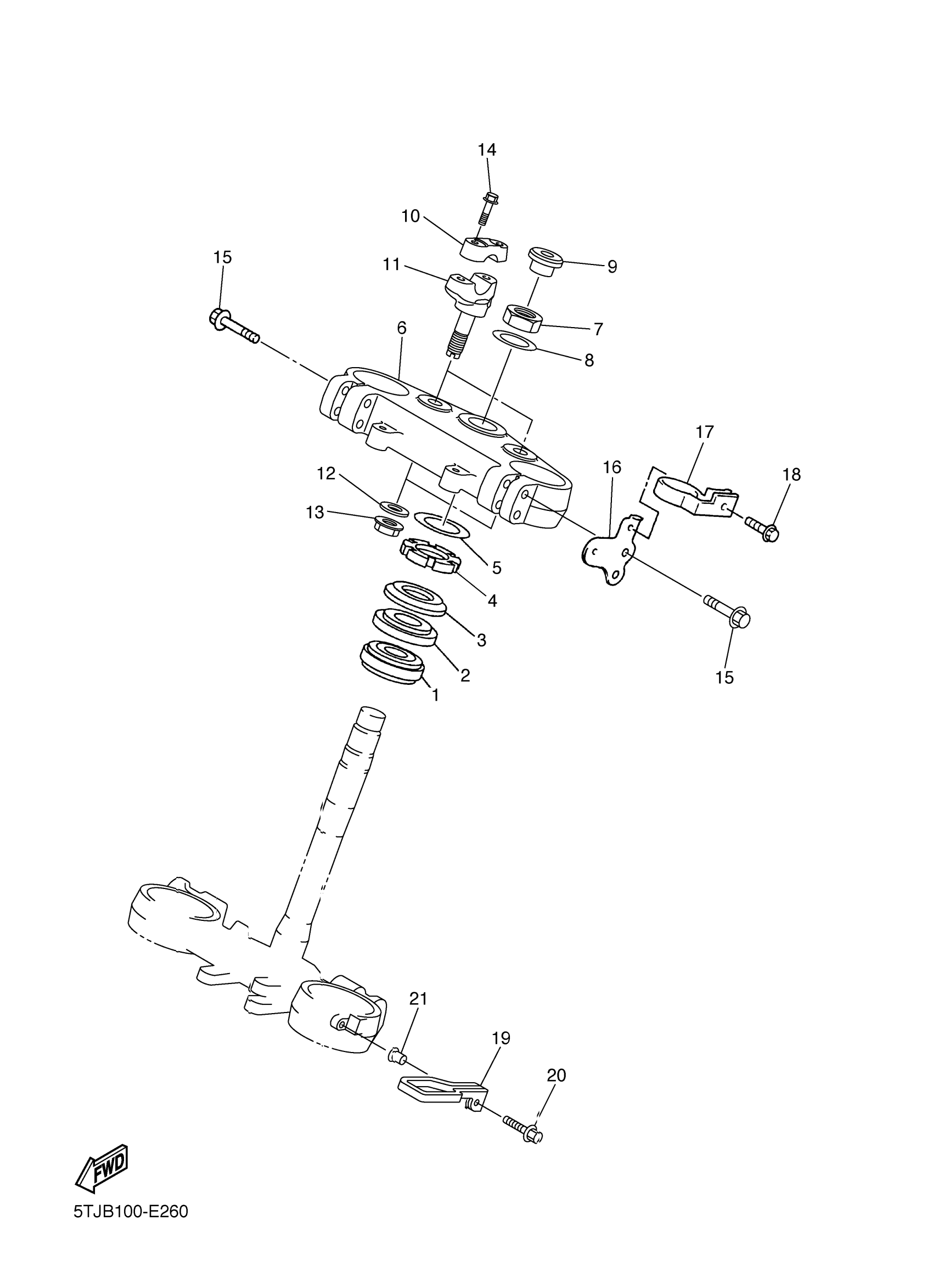

2006 Yamaha WR250F (WR250FV) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(4SR)

93332-00081-00

1
Out of stock

2

BEARING(4EW)

93332-00078-00

1
Out of stock

3

COVER, BALL RACE 2

4EW-23416-00-00

1
Out of stock

4

NUT

90179-28013-00

1
Out of stock

5

WASHER, PLATE(1YW)

90201-286K9-00

1
Out of stock

6

CROWN, HANDLE

5TJ-23435-C0-00

1
Out of stock

7

NUT

90170-24003-00

1
Out of stock

8

WASHER, PLATE

90201-24016-00

1
Out of stock

9

CAP

5TJ-2319U-00-00

1
Out of stock

10

HOLDER, HANDLE UPPER

1C3-23441-50-00

1
Out of stock

11

HOLDER, HANDLE LOWER

1C3-23442-50-00

—
Out of stock

12

WASHER, PLATE

90201-12027-00

1
Out of stock

13

NUT, SELF-LOCKING

95602-12200-00

1
Out of stock

14

BOLT, FLANGE(3EF)

95024-08035-00

1
Out of stock

15

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

16

STAY, HEAD LIGHT 1

5TJ-2831V-80-00

—
Out of stock

17

GUIDE, CABLE

5TJ-2331E-80-00

—
Out of stock

18

BOLT, FLANGE

90105-05016-00

—
Out of stock

19

GUIDE, CABLE

5TJ-23389-80-00

—
Out of stock

20

BOLT, FLANGE(3DM)

95024-06020-00

—
Out of stock

21

COLLAR

90387-06104-00

—
Out of stock
