2006 Yamaha WR250F (WR250FV) Intake Diagram

← All diagrams

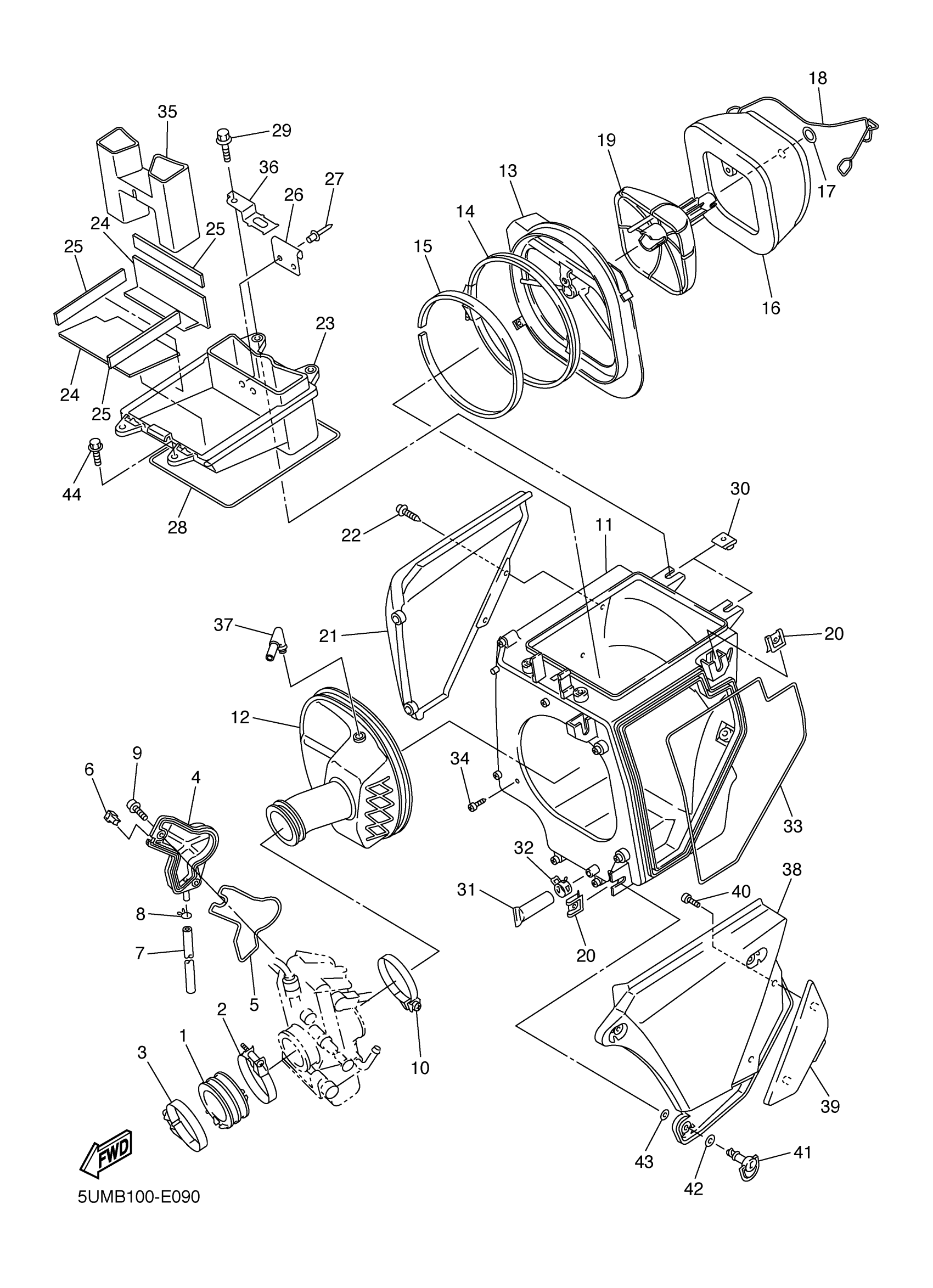

Find the part on the Intake diagram for your 2006 Yamaha WR250F (WR250FV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha WR250F (WR250FV) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5XC-13597-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-54009-00

1

$9.77

In stock

4

COVER 1

5TA-14293-00-00

1

$37.21

In stock

5

GASKET

5TA-14227-00-00

1

$27.53

In stock

6

SEAL

5TA-14239-00-00

1

$16.57

In stock

7

HOSE

5TA-14987-00-00

1

$12.06

In stock

8

CLIP

3TJ-14137-40-00

1

$6.43

In stock

9

BOLT

5TA-14428-00-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-61002-00

1

$15.45

In stock

11

AIR CLEANER CASE ASSY

5TJ-14401-20-00

1
Out of stock

12

JOINT, AIR CLEANER 1

5TJ-14453-00-00

1
Out of stock

13

HOLDER, GUIDE

5TJ-14459-01-00

1
Out of stock

14

BAND

5NY-14455-20-00

1

$34.03

In stock

15

SPACER

5NY-14442-00-00

1

$20.42

In stock

16

ELEMENT, AIR CLEANER

5TJ-14451-01-00

—
Out of stock

17

WASHER

5TJ-14475-00-00

—
Out of stock

18

BINDER 1

5UM-1441G-E0-00

—
Out of stock

19

GUIDE

5TJ-14458-00-00

—
Out of stock

20

PLATE, SPRING

4XV-2177L-01-00

—

$6.20

In stock

21

COVER, CLEANER CASE 2

5TJ-1441E-10-00

1
Out of stock

22

SCREW, TRUSS TAP.

97707-40016-00

—

$6.18

In stock

23

DUCT

5TJ-14437-10-00

1
Out of stock

24

DAMPER 1

5TJ-14425-10-00

—
Out of stock

25

DAMPER 2

5TJ-14426-00-00

—

$2.92

In stock

26

HOOK

5TJ-14436-00-00

1
Out of stock

27

RIVET, BLIND (2YK)

90267-32146-00

—

$5.62

In stock

28

SEAL

51Y-14462-00-00

—

$11.61

In stock

29

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock

30

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

31

PIPE, DRAIN

5BF-1443E-00-00

—

$3.49

In stock

32

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

33

SEAL

5TJ-14462-00-00

—
Out of stock

34

SCREW, PAN TAP.2

97707-50516-00

—

$0.54

In stock

35

DUCT

5TJ-1443A-00-00

1
Out of stock

36

STAY, RELAY

5TJ-81953-00-00

—
Out of stock

37

PIPE

5TJ-14419-00-00

—

$7.57

In stock

38

COVER, CLEANER CASE 1

5TJ-1441A-00-00

—
Out of stock

39

COVER, CLEANER CASE 3

5TJ-1442A-00-00

—
Out of stock

40

SCREW, PAN TAP.2

97707-30512-00

—

$1.18

In stock

41

HEAD

3FV-28386-00-00

—

$22.96

In stock

42

WASHER, SPECIAL 1

2TK-21757-00-00

—

$1.66

In stock

43

WASHER, SPECIAL 1

5TJ-21757-00-00

—

$6.43

In stock

44

BOLT, FLANGE

95817-06016-00

—

$1.49

In stock
