2026 Yamaha WR250F (WR250FT1) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2026 Yamaha WR250F (WR250FT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

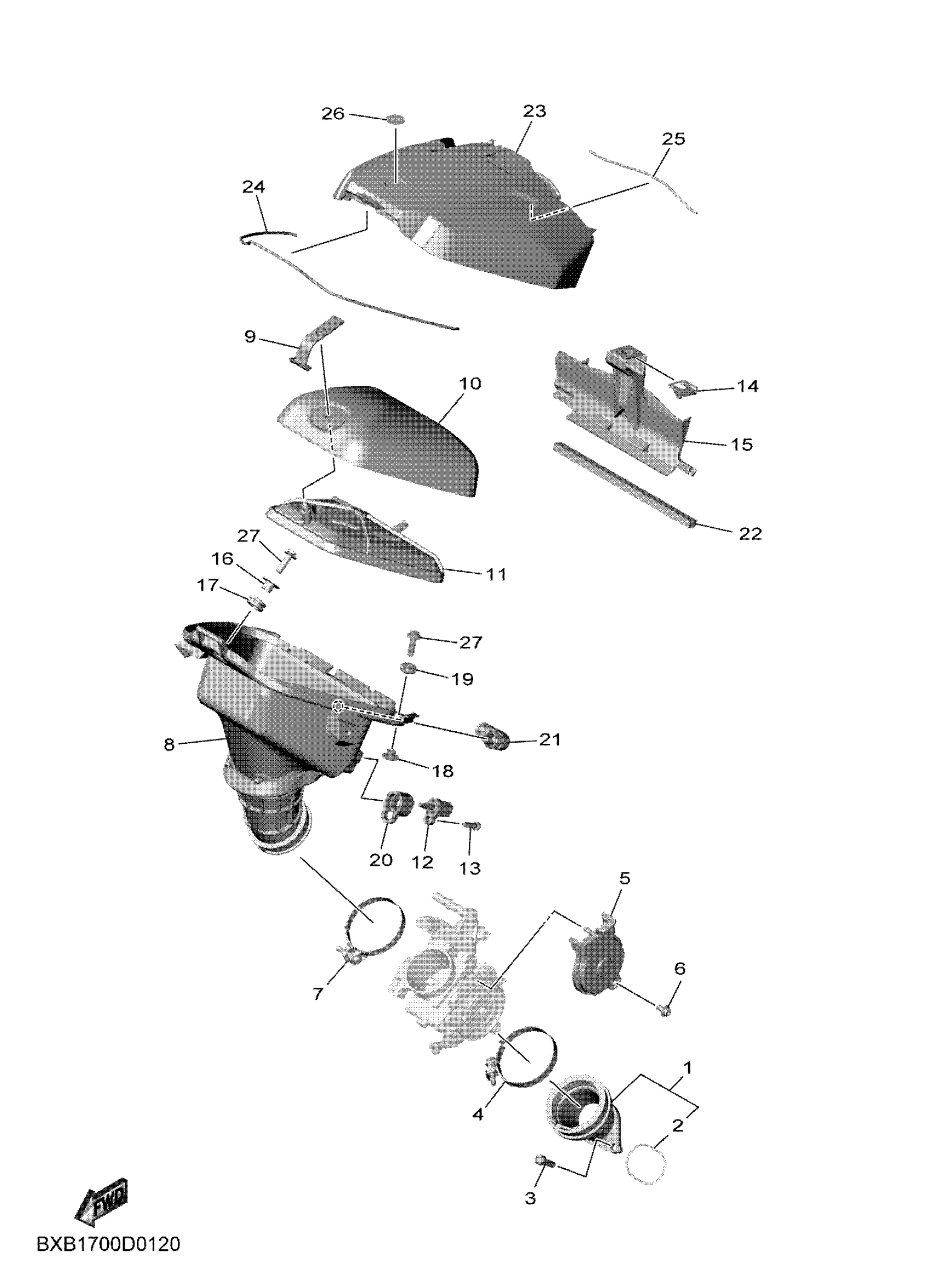

2026 Yamaha WR250F (WR250FT1) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

B7B-13597-10-00

1
Out of stock

2

GASKET

B7B-13566-10-00

1
Out of stock

3

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

4

HOSE CLAMP ASSY

90450-60004-00

1
Out of stock

5

COVER 1

BR9-14293-00-00

—
Out of stock

6

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-58006-00

1
Out of stock

8

AIR FILTER CASE COMP.

BXB-14408-00-00

1
Out of stock

9

HOLDER, GUIDE

BHR-14459-00-00

1
Out of stock

10

ELEMENT, AIR CLEANER

BHR-14451-00-00

1
Out of stock

11

GUIDE

BHR-14458-00-00

1
Out of stock

12

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1
Out of stock

13

SCREW, PANHEAD TAPPING

97702-50520-00

1
Out of stock

14

PLATE, SPRING

2CR-2177L-00-00

1
Out of stock

15

CAP, CLEANER CASE

BHR-14422-01-00

1
Out of stock

16

COLLAR (4N0)

90387-071E0-00

—
Out of stock

17

GROMMET

90480-01027-00

—
Out of stock

18

COLLAR

90387-06273-00

—
Out of stock

19

GROMMET (2T4)

90480-12237-00

—
Out of stock

20

HOLDER

20S-1445C-01-00

—
Out of stock

21

PIPE

5TJ-14419-00-00

—
Out of stock

22

DAMPER, SEAT

BHR-24737-00-00

—
Out of stock

23

CAP, CLEANER CASE 1

BHR-14412-00-00

—
Out of stock

24

SEAL

BHR-14452-01-00

—
Out of stock

25

SEAL

BHR-14457-00-00

—
Out of stock

26

EMBLEM

4XV-2341B-00-00

—
Out of stock

27

BOLT, FLANGE

90105-06203-00

—
Out of stock
