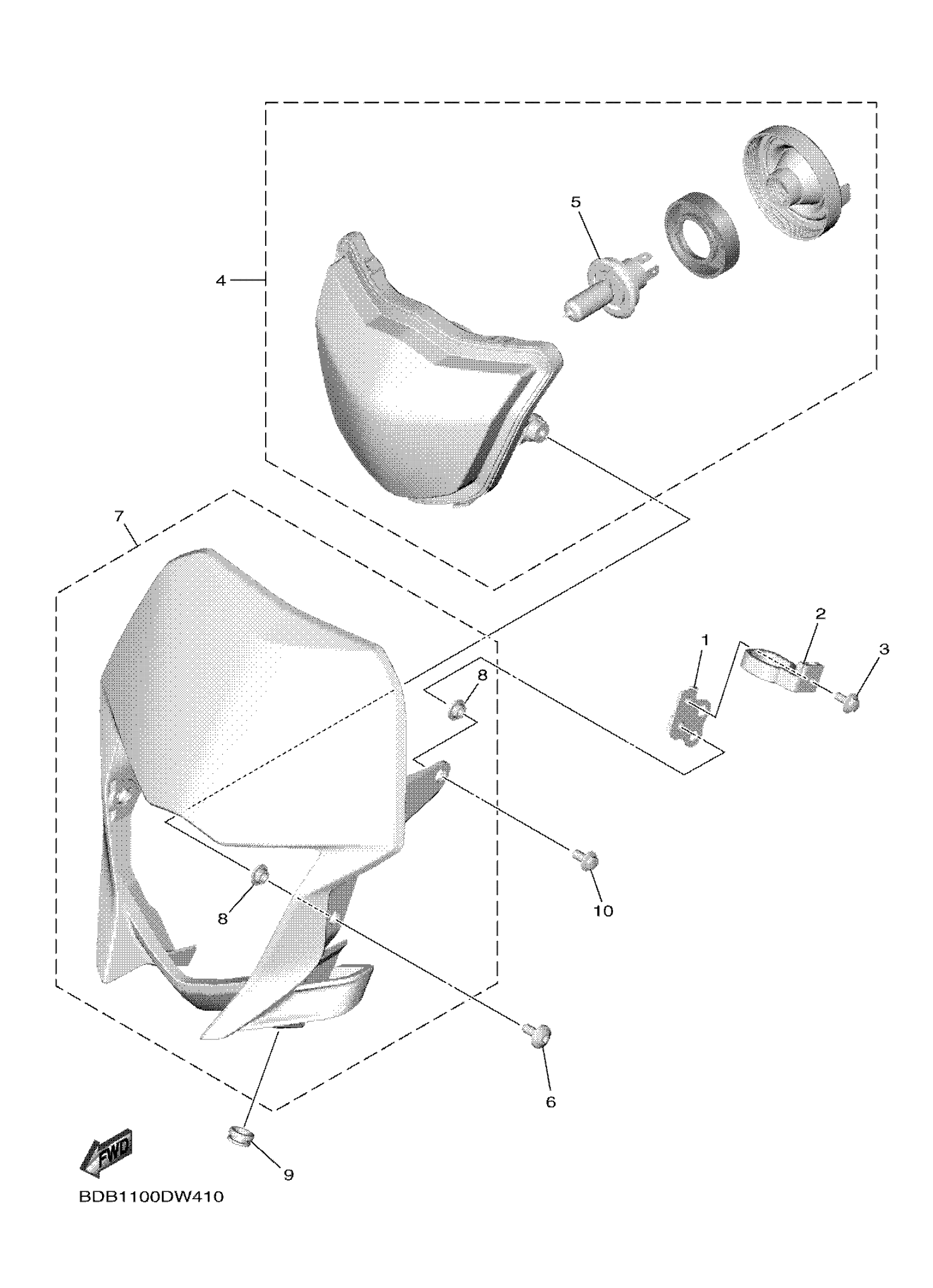

Yamaha WR250FT1 (WR250F) DP23 2026 HEADLIGHT Diagram

#

Description
Price

1

STAY, HEAD LIGHT 1

B7R-2831V-00-00

$7.49

2

GUIDE, CABLE

B7R-2331E-00-00

$5.95

3

BOLT, FLANGE

90105-05028-00

$2.59

4

HEADLIGHT ASSY

2GB-84300-01-00

$141.52

5

BULB, HEADLIGHT (1

5ST-H4314-10-00

$23.12

6

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

7

BODY ASSY

B7R-84330-10-00

$20.89

8

COLLAR

90387-06009-00

$7.37

9

GROMMET

90480-12020-00

$6.75

10

BOLT, FLANGE

90105-06064-00

$2.49
