2026 Yamaha WR250F (WR250FT1) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2026 Yamaha WR250F (WR250FT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

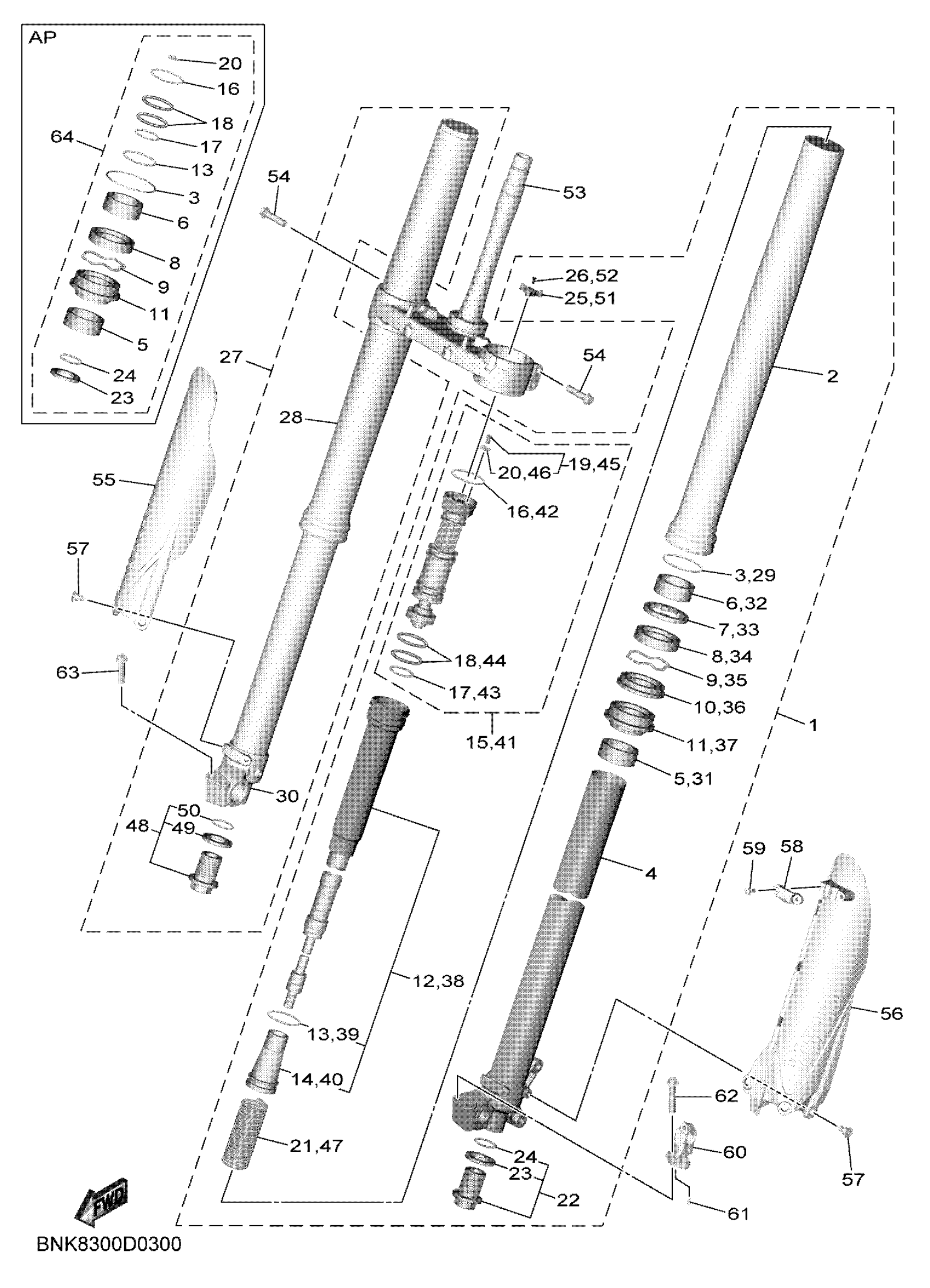

2026 Yamaha WR250F (WR250FT1) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L

BXB-23102-00-00

1
Out of stock

2

TUBE, OUTER

33D-23136-00-00

1
Out of stock

3

RING, SNAP

17D-23153-00-00

1
Out of stock

4

INNER TUBE COMP.2

BNK-23120-00-00

1
Out of stock

5

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

6

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

7

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

8

OIL SEAL

B29-23145-00-00

1
Out of stock

9

RING, SNAP

5XE-23153-L0-00

1
Out of stock

10

SCRAPER

B29-4381D-00-00

1
Out of stock

11

SEAL, DUST

BHR-23144-00-00

1
Out of stock

12

CYLINDER COMP., FR

BXB-23170-00-00

1
Out of stock

13

O-RING

1C3-23147-L1-00

1
Out of stock

14

SEAT, SPRING UPPER

BR9-23142-01-00

1
Out of stock

15

VALVE COMP.

BXB-2316A-00-00

1
Out of stock

16

O-RING

1C3-23188-L2-00

—
Out of stock

17

O-RING

1C3-23188-P0-00

—
Out of stock

18

O-RING

1AE-23147-01-00

—
Out of stock

19

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

20

O-RING

1C3-23188-R1-00

—
Out of stock

21

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

—
Out of stock

22

BOLT, CAP

5XC-23111-01-00

—
Out of stock

23

GASKET

2HH-23158-L0-00

—
Out of stock

24

GASKET

276-23114-02-00

—
Out of stock

25

CAP

BHR-2319W-00-00

—
Out of stock

26

SCREW

1MC-23119-10-00

—
Out of stock

27

FRONT FORK ASSY (R

BXB-23103-00-00

—
Out of stock

28

TUBE, OUTER

33D-23136-00-00

1
Out of stock

29

RING, SNAP

17D-23153-00-00

1
Out of stock

30

INNER TUBE COMP.1

BNK-23110-00-00

—
Out of stock

31

PISTON, FRONT FORK

5XE-23171-L0-00

1
Out of stock

32

METAL, SLIDE 1

5XE-23125-L0-00

1
Out of stock

33

WASHER, OIL SEAL

5XC-23146-10-00

1
Out of stock

34

OIL SEAL

B29-23145-00-00

1
Out of stock

35

RING, SNAP

5XE-23153-L0-00

1
Out of stock

36

SCRAPER

B29-4381D-00-00

1
Out of stock

37

SEAL, DUST

BHR-23144-00-00

1
Out of stock

38

CYLINDER COMP., FR

BXB-23170-00-00

1
Out of stock

39

O-RING

1C3-23147-L1-00

1
Out of stock

40

SEAT, SPRING UPPER

BR9-23142-01-00

1
Out of stock

41

VALVE COMP.

BXB-2316A-00-00

1
Out of stock

42

O-RING

1C3-23188-L2-00

—
Out of stock

43

O-RING

1C3-23188-P0-00

—
Out of stock

44

O-RING

1AE-23147-01-00

—
Out of stock

45

AIR VALVE COMP.

1C3-23190-L1-00

—
Out of stock

46

O-RING

1C3-23188-R1-00

—
Out of stock

47

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

—
Out of stock

48

BOLT, CAP

5XC-23111-01-00

—
Out of stock

49

GASKET

2HH-23158-L0-00

—
Out of stock

50

GASKET

276-23114-02-00

—
Out of stock

51

CAP

BHR-2319W-00-00

—
Out of stock

52

SCREW

1MC-23119-10-00

—
Out of stock

53

UNDER BRACKET COMP.

B7R-23340-00-00

—
Out of stock

54

BOLT, FLANGE DEEP RECESS

95E34-08035-00

—
Out of stock

55

PROTECTOR 2

17D-2315J-K0-00

—
Out of stock

56

PROTECTOR 1

B7R-2315H-30-00

1
Out of stock

57

BOLT

90109-06232-00

—
Out of stock

58

CLAMP

B7R-23466-00-00

—
Out of stock

59

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

—
Out of stock

60

BRACKET 1

B7R-83955-00-00

—
Out of stock

61

PIN, DOWEL

93603-07073-00

—
Out of stock

62

BOLT, FLANGE DEEP RECESS

95E34-08045-00

—
Out of stock

63

BOLT, FLANGE DEEP RECESS

95E34-08035-00

—
Out of stock

64

FORK SEAL KIT (ONE FORK)

BHR-W003B-00-00

—
Out of stock
