2005 Yamaha WR250F (WR250FT) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2005 Yamaha WR250F (WR250FT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

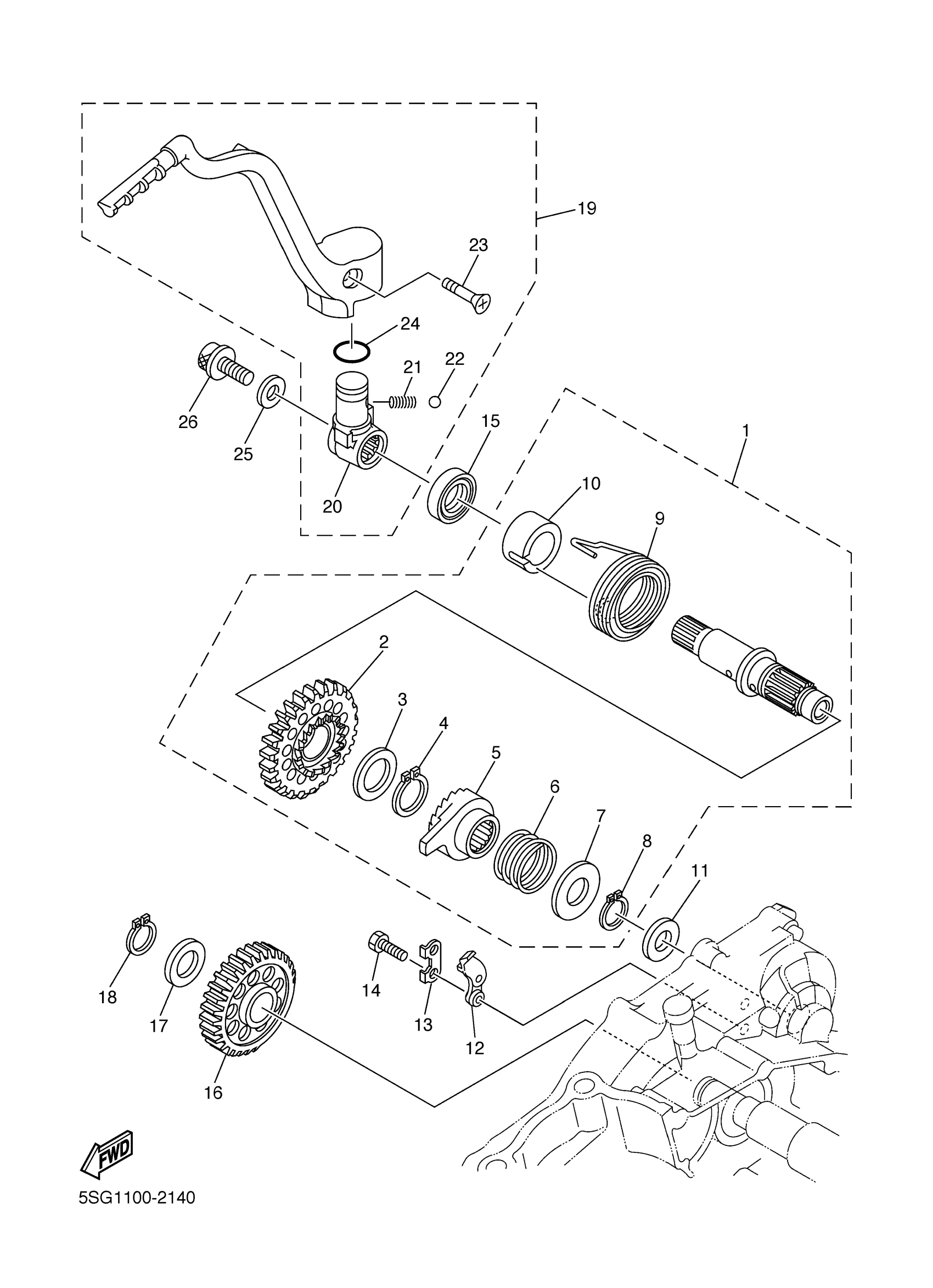

2005 Yamaha WR250F (WR250FT) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

5NL-15601-00-00

1
Out of stock

2

GEAR, KICK

5NL-15641-10-00

—
Out of stock

3

WASHER, PLATE (2K7)

90201-20685-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1
Out of stock

5

WHEEL, RATCHET

4GY-15671-00-00

1
Out of stock

6

SPRING, COMPRESSION

90501-16016-00

1
Out of stock

7

WASHER, PLATE(4GL)

90201-167P7-00

1
Out of stock

8

CIRCLIP(13T)

99009-16400-00

1
Out of stock

9

SPRING, TORSION(2VM)

90508-30743-00

1
Out of stock

10

GUIDE, SPRING

5NL-15664-00-00

1
Out of stock

11

WASHER, PLATE (25H)

90201-162H4-00

1
Out of stock

12

STOPPER

5SG-15668-00-00

—
Out of stock

13

WASHER, LOCK

214-15686-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06016-00

1
Out of stock

15

OIL SEAL (22U)

93102-18278-00

1
Out of stock

16

GEAR, KICK IDLE

5NL-15651-00-00

—
Out of stock

17

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

18

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

19

KICK CRANK ASSY

5NL-15620-10-00

—
Out of stock

20

BOSS, KICK CRANK

5NX-15621-10-00

—
Out of stock

21

SPRING, COMPRESSION

90501-147A5-00

—
Out of stock

22

BALL (12R)

93507-32031-00

—
Out of stock

23

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

24

O-RING(36Y)

93210-17570-00

—
Out of stock

25

WASHER (853)

90201-08326-00

—
Out of stock

26

BOLT(2KF)

90109-085E2-00

—
Out of stock
