2004 Yamaha WR250F (WR250FS) Frame Diagram

← All diagrams

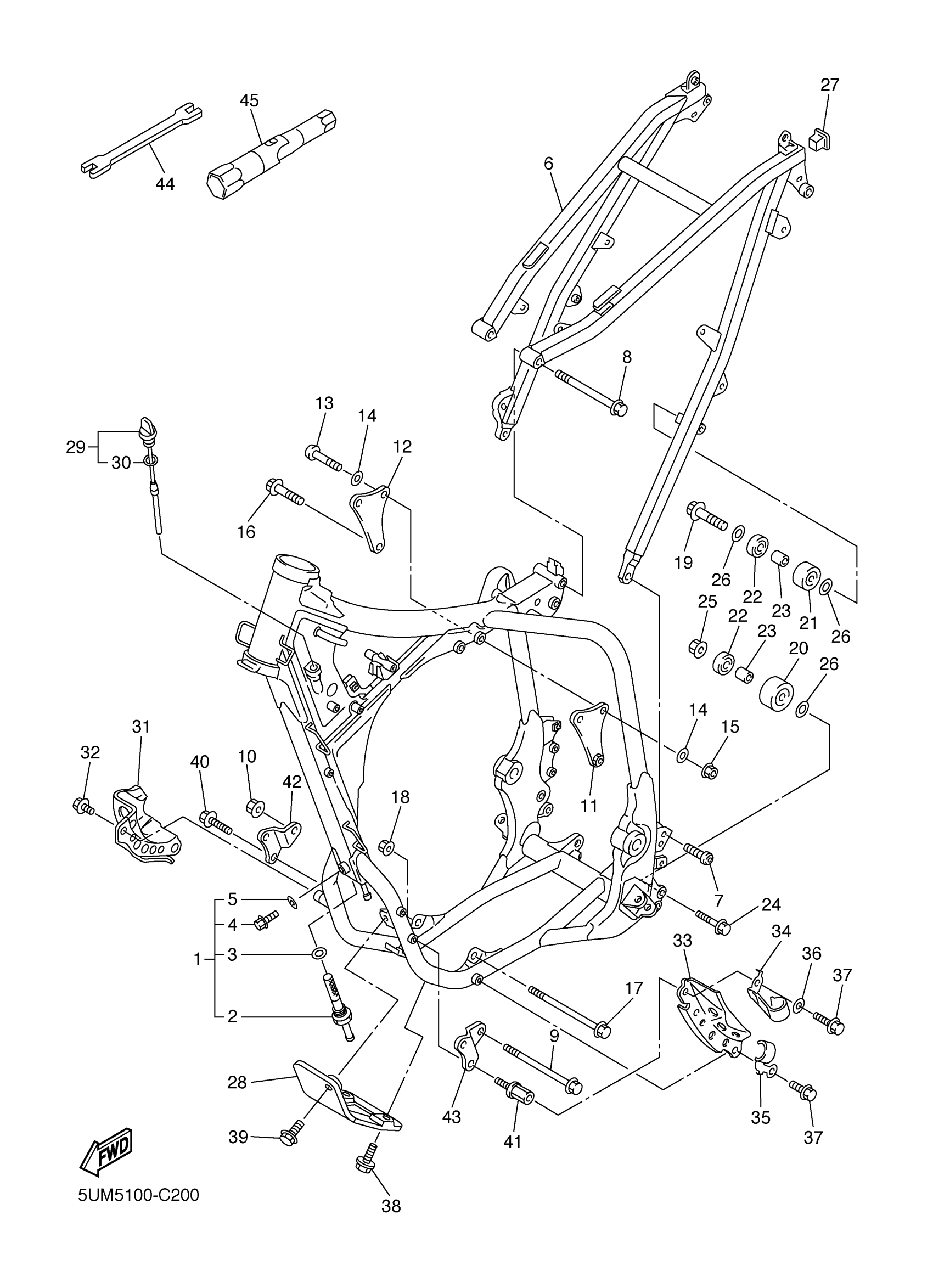

Find the part on the Frame diagram for your 2004 Yamaha WR250F (WR250FS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha WR250F (WR250FS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5UM-21101-50-00

1
Out of stock

2

NET, FILTER

5TA-21756-00-00

—
Out of stock

3

WASHER, PLATE(3GB)

90201-145M4-00

1

$7.12

In stock

4

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

5

GASKET

90430-08119-00

1

$4.70

In stock

6

REAR FRAME COMP.

5TJ-21190-50-00

—
Out of stock

7

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

8

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

9

BOLT, FLANGE

90105-10072-00

1
Out of stock

10

NUT(4KG)

90179-10658-00

1

$7.49

In stock

11

BRACKET, REAR UPPER 1

5NL-21425-00-00

1
Out of stock

12

BRACKET, REAR UPPER 1

5NL-21425-10-00

1
Out of stock

13

BOLT, BUTTON HEAD

92017-08055-00

1
Out of stock

14

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

15

NUT(4KM)

90179-08674-00

1
Out of stock

16

BOLT, FLANGE(8AB)

95817-10050-00

—

$5.03

In stock

17

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

18

NUT(4KG)

90179-10658-00

1

$7.49

In stock

19

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

20

TENSIONER

3JD-22178-20-00

—

$37.74

In stock

21

TENSIONER

4EW-22178-01-00

—
Out of stock

22

BEARING (3X3)

93300-60804-00

—

$11.18

In stock

23

COLLAR(1NL)

90387-086N4-00

—

$8.31

In stock

24

BOLT, FLANGE

95027-08065-00

—
Out of stock

25

NUT, FLANGE(JN5)

95707-08500-00

—

$1.49

In stock

26

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

27

PLUG(8Y1)

90338-18176-00

—
Out of stock

28

PROTECTOR, ENGINE

5NL-21471-01-00

1
Out of stock

29

PLUG, OIL LEVEL

5UM-15362-00-00

—
Out of stock

30

. O-RING

93210-08001-00

1
Out of stock

31

GUARD, ENGINE 1

5NL-2147A-00-00

1
Out of stock

32

BOLT, SMALL FLANGE

95027-08016-00

—
Out of stock

33

GUARD, ENGINE 1

5UM-2147A-00-00

—
Out of stock

34

CLAMP

5TJ-21338-00-00

1
Out of stock

35

CLAMP

5NG-21338-01-00

1
Out of stock

36

WASHER, PLATE(3XP)

90201-086P8-00

1

$4.35

In stock

37

BOLT, SMALL FLANGE

95027-08016-00

—
Out of stock

38

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

39

BOLT, WITH WASHER

90119-06001-00

—
Out of stock

40

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock

41

BOLT, ENGINE MOUNTING 1

5PH-21481-00-00

1
Out of stock

42

BRACKET, FRONT LOWER 1

5XC-21417-50-00

1
Out of stock

43

BRACKET, FRONT LOWER 1

5UL-21417-10-00

1
Out of stock

44

WRENCH, HEXAGON

5ET-28166-10-00

—

$28.32

In stock

45

BOX, SPARK PLUG

5TA-2814F-00-00

—
Out of stock
