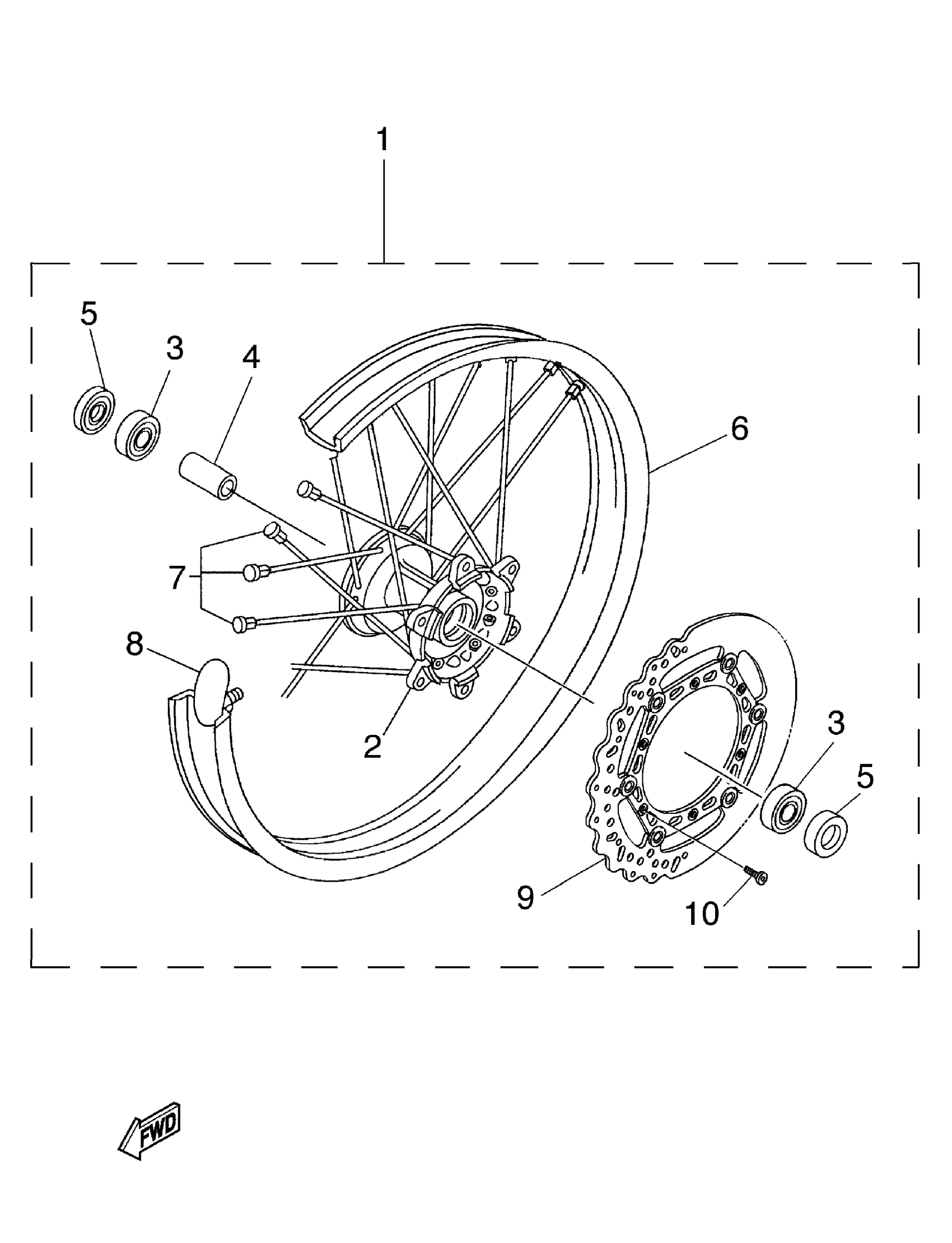

Yamaha WR250FR (WR250F) 5UM1 2003 FRONT WHEEL KIT Diagram

#

Description
Price

1

SPARE WHL ASSY- WR450F '06-'15

5TJ-W2519-J0-00

Unavailable

2

HUB, FRONT

5NG-25111-50-00

Unavailable

3

BEARING

93306-90409-00

$29.63

4

SPACER, BEARING

5NY-25117-00-00

$24.69

5

OIL SEAL

93102-26468-00

$17.11

6

RIM (1.60-21)

94416-21005-00

Unavailable

7

SPOKE SET, FRONT

5NY-25104-00-00

$203.86

8

SPACER, BEAD

5SF-25394-00-00

$28.95

9

DISK BRAKE ASSY

2S2-2581T-70-00

$184.91

10

SCREW, COUNTERSUNK

90151-06079-00

$2.49
