2002 Yamaha WR250F (WR250FP) Side Cover Diagram

← All diagrams

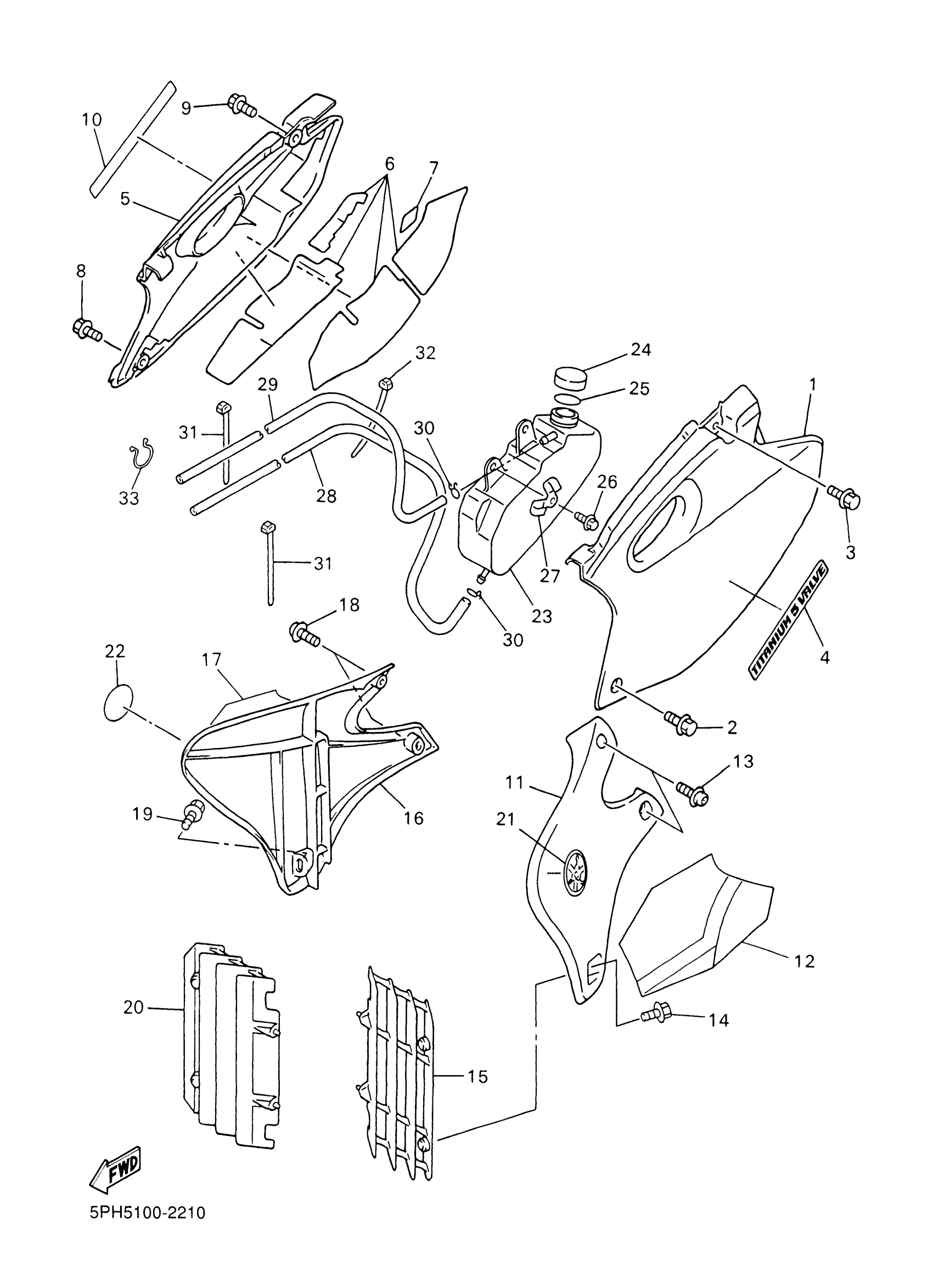

Find the part on the Side Cover diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha WR250F (WR250FP) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

5BF-21711-00-00

—
Out of stock

2

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

3

BOLT, WITH WASHER

90119-08238-00

1

$3.09

In stock

4

EMBLEM 1

5JG-21781-50-00

1
Out of stock

5

COVER, SIDE 2

5BF-21721-00-00

—
Out of stock

6

INSULATOR, SIDE COVER

5NG-2174A-50-00

1
Out of stock

7

SEAL 1

3FY-21575-01-00

1
Out of stock

8

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

9

BOLT, WITH WASHER

90119-08238-00

1

$3.09

In stock

10

EMBLEM 1

5JG-21781-50-00

1
Out of stock

11

COVER, SIDE 3

5NL-21731-00-00

—
Out of stock

12

GRAPHIC 1

5SF-2173E-01-00

1
Out of stock

13

SCREW, WITH WASHER(3YJ)

90159-06182-00

1

$6.42

In stock

14

SCREW, WITH WASHER (34K)

90159-06078-00

1
Out of stock

15

PANEL 1

5PH-2172A-11-00

1

$18.40

In stock

16

COVER, SIDE 4

5NL-21741-00-00

—
Out of stock

17

GRAPHIC 2

5SF-2173F-01-00

1
Out of stock

18

SCREW, WITH WASHER(3YJ)

90159-06182-00

1

$6.42

In stock

19

SCREW, WITH WASHER (34K)

90159-06078-00

1
Out of stock

20

PANEL 1

5PH-2172A-11-00

1

$18.40

In stock

21

TUNING FORK MARK

5MV-2175C-00-00

1
Out of stock

22

TUNING FORK MARK

5MV-2175C-00-00

1
Out of stock

23

TANK, RECOVERY

5GS-21871-00-00

—
Out of stock

24

CAP

26H-21875-00-00

—
Out of stock

25

GASKET

26H-21874-00-00

—
Out of stock

26

BOLT, WITH WASHER

90119-06226-00

—

$2.15

In stock

27

CLAMP, HOSE

5BF-21823-00-00

—
Out of stock

28

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

29

TUBE, FLEXIBLE

91A21-05125-00

1
Out of stock

30

CLIP

90467-090A2-00

—

$2.51

In stock

31

CLAMP

90464-13077-00

—

$6.68

In stock

32

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

33

CLAMP (3Y2)

90464-16039-00

—
Out of stock
